LCD Screen

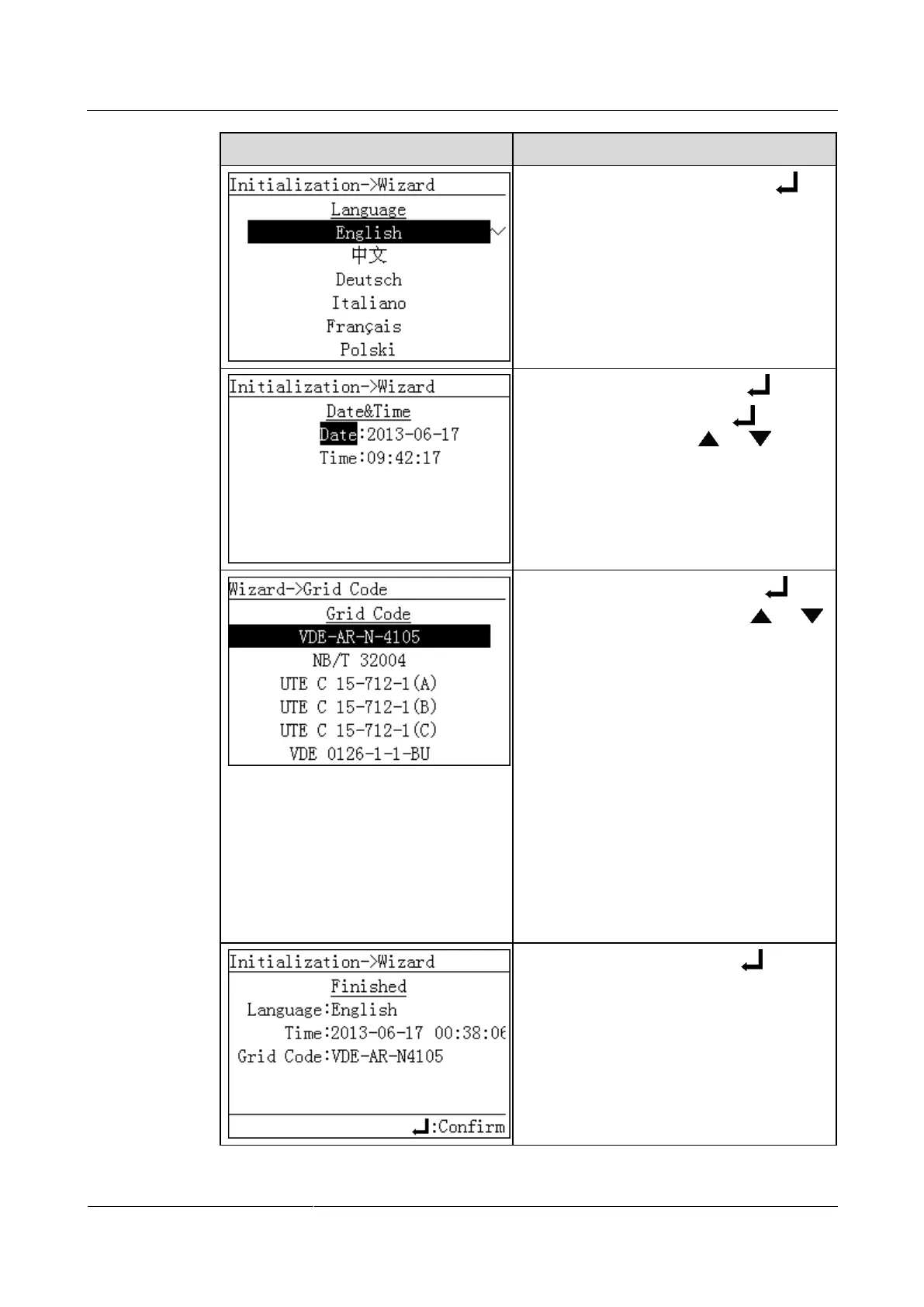

Procedure
3. Select a display language and press .
The screens will be displayed in the selected
language.
4. Set the date and time and press .

To select a parameter, press . To set the
parameter value, press or .

The date format is YYYY-MM-DD.
YYYY, MM, and DD stand for year,
month, and day respectively. The time
format is hh-mm-ss. hh, mm, and ss stand
for hour, minute, and second respectively.
5. Set the power grid code and press .
To select a power grid code, click or .
NOTICE
Incorrectly setting Grid Code will cause a
SUN2000 startup failure.
NOTE

For details about power grid codes, see B Power
Grid Codes. Select an appropriate power grid
code based on the requirements of the country
or region.

When the sunlight is insufficient, the grid code
cannot be successfully set. Wait until the
sunlight becomes sufficient, log in to the system
as Advanced User, and choose Settings >
Wizard to set the grid code.

The SUN2000-28KTL applies only to the
medium-voltage grid connection scenarios, and
supports only the Chinese, German, and
customized medium-voltage grid codes.
6. On the Finished screen, press .

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
