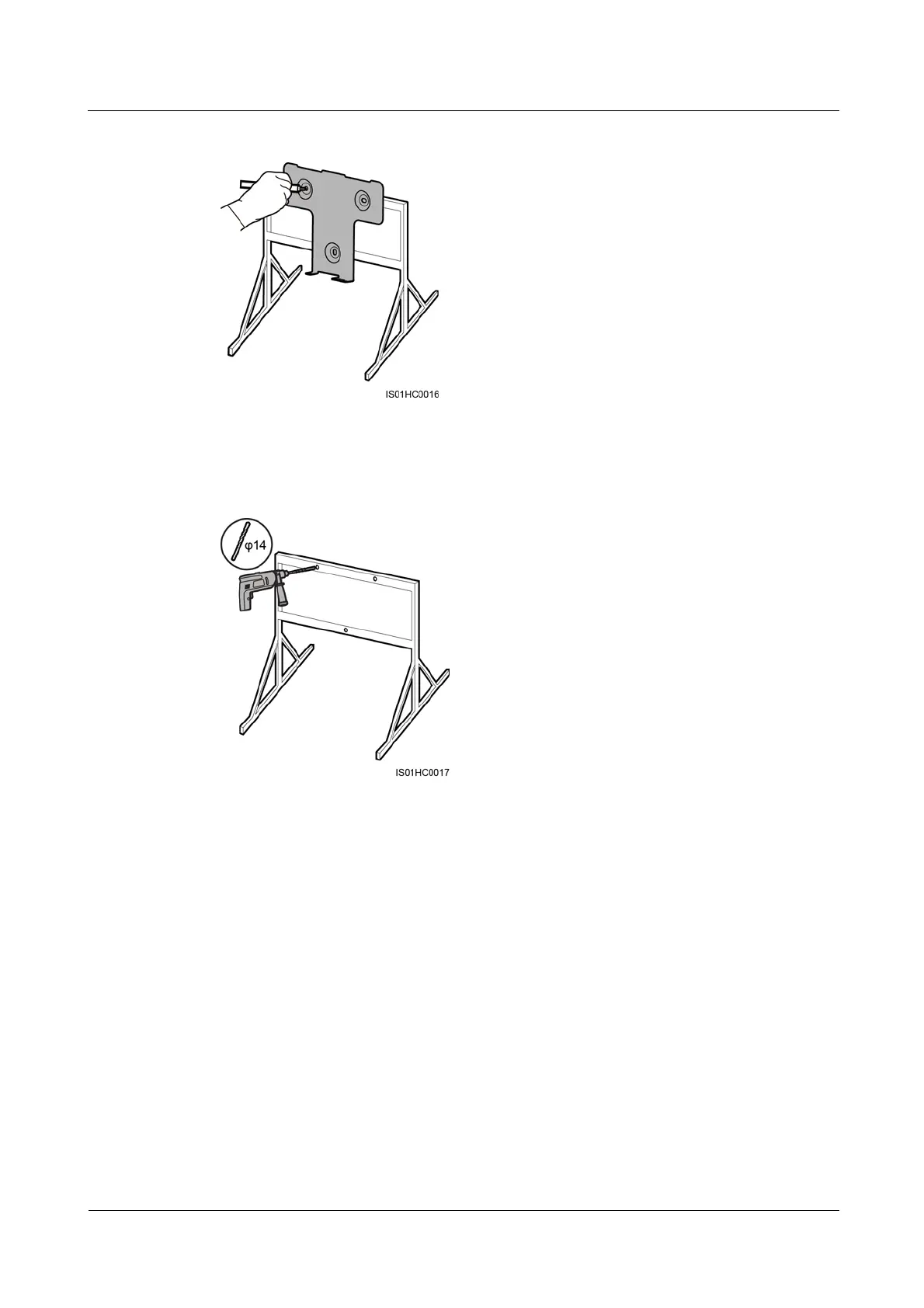

Figure 4-7 Determining hole positions
Step 2 Drill holes using a hammer drill, as shown in Figure 4-8.
Figure 4-8 Drilling holes
Step 3 Align the rear panel with hole positions, insert M10x60 bolts into the holes, and tighten the
bolts to a torque of 30 N·m using a torque wrench, as shown in Figure 4-9.

Huawei SUN2000-17KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
MPPT voltage range	200 V - 1000 V
Max. input current per MPPT	26 A
Number of MPPTs	2
AC nominal power	17000 W
Operating temperature range	-25°C to +60°C
Cooling	Natural Convection
Protection rating	IP65
Max. AC power	18700 VA
Rated AC voltage	220 V / 380 V, 230 V / 400 V
