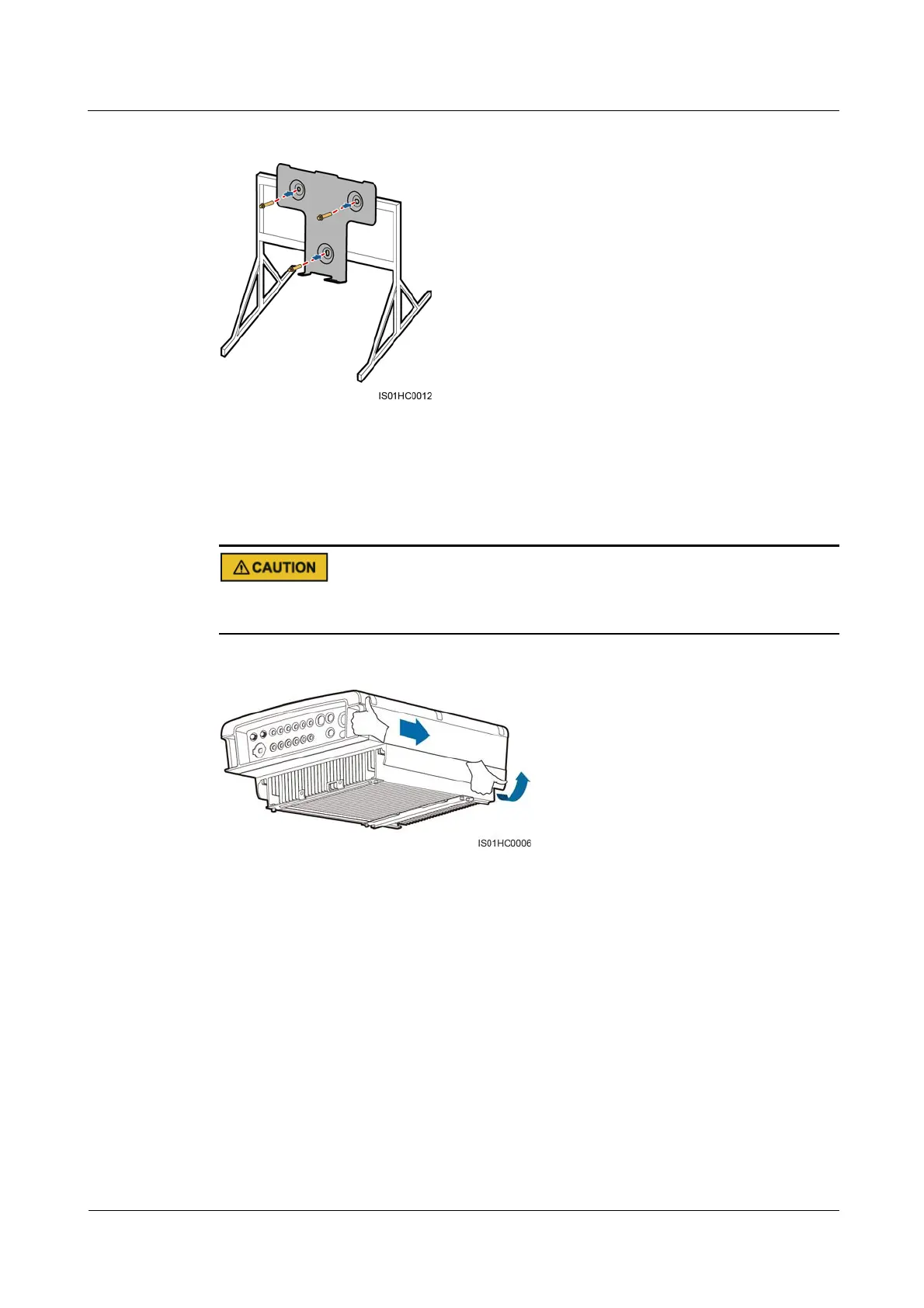

Figure 4-9 Securing a rear panel
Step 4 Hold the handle at the bottom of the SUN2000 with one hand and hold the end of the other
handle near the SUN2000 top with the other end, and then stand the SUN2000, as shown in
Figure 4-10. Two persons are required to install the SUN2000.
To prevent personal injury caused by a falling SUN2000, keep balance when lifting the
SUN2000 because the SUN2000 has a heavy top.
Figure 4-10 Lifting a SUN2000
Step 5 Mount the SUN2000, keeping the mounting brackets in alignment with the rear panel, as
shown in Figure 4-11.

Huawei SUN2000-17KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
MPPT voltage range	200 V - 1000 V
Max. input current per MPPT	26 A
Number of MPPTs	2
AC nominal power	17000 W
Operating temperature range	-25°C to +60°C
Cooling	Natural Convection
Protection rating	IP65
Max. AC power	18700 VA
Rated AC voltage	220 V / 380 V, 230 V / 400 V
