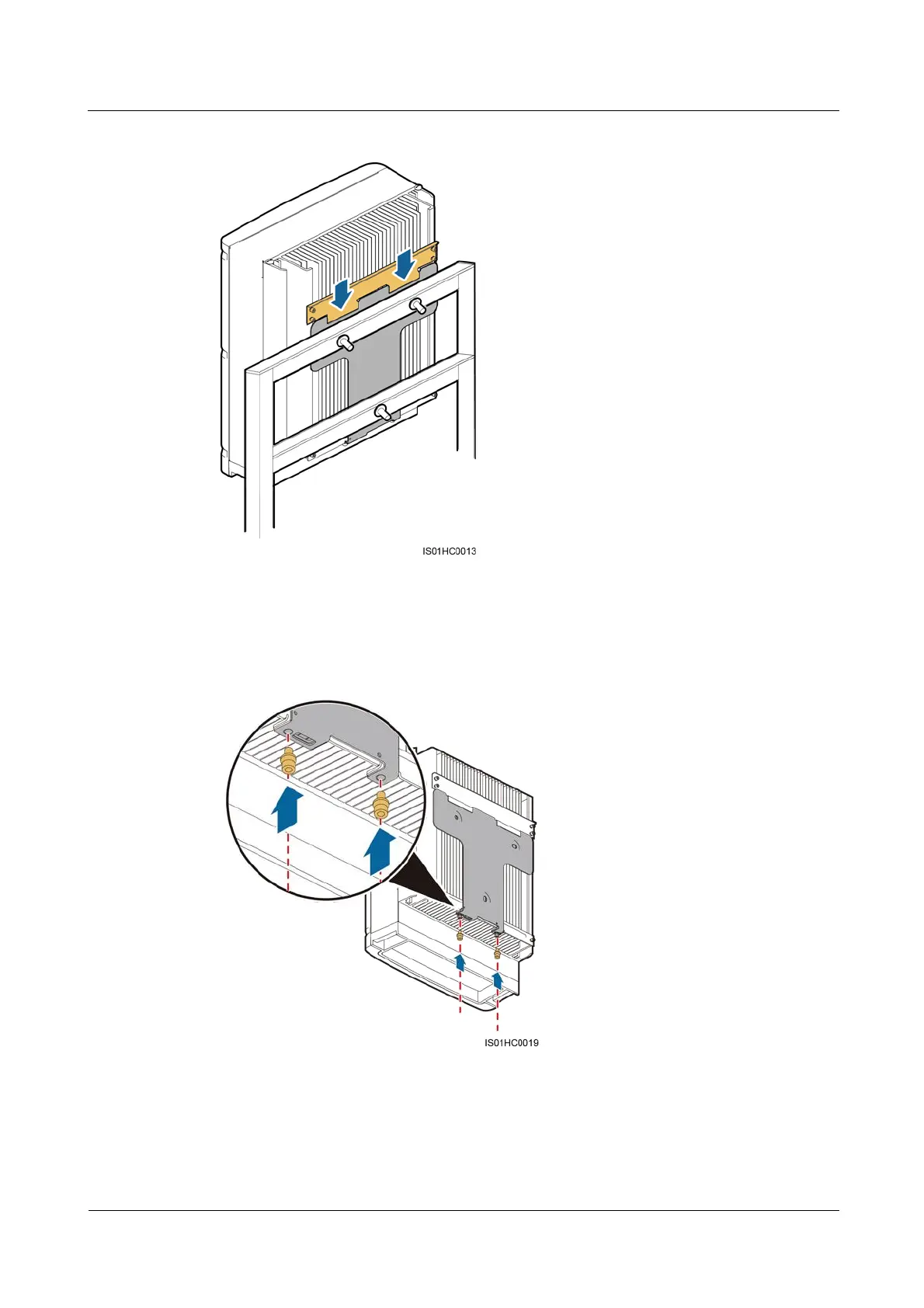

Figure 4-11 Mounting a SUN2000 on a rear panel
Step 6 Tighten the two hexagon screws at the bottom of the SUN2000 to a torque of 5 N·m, as
shown in Figure 4-12.
Figure 4-12 Tightening hexagon screws
Step 7 (Optional) Install an antitheft lock, as shown in Figure 4-13.
The function of an antitheft lock is to secure the SUN2000 to the rear panel and protect it
from stealing.
