4 Installation
Issue 12 (2019-06-30)
Copyright © Huawei Technologies Co., Ltd.
32

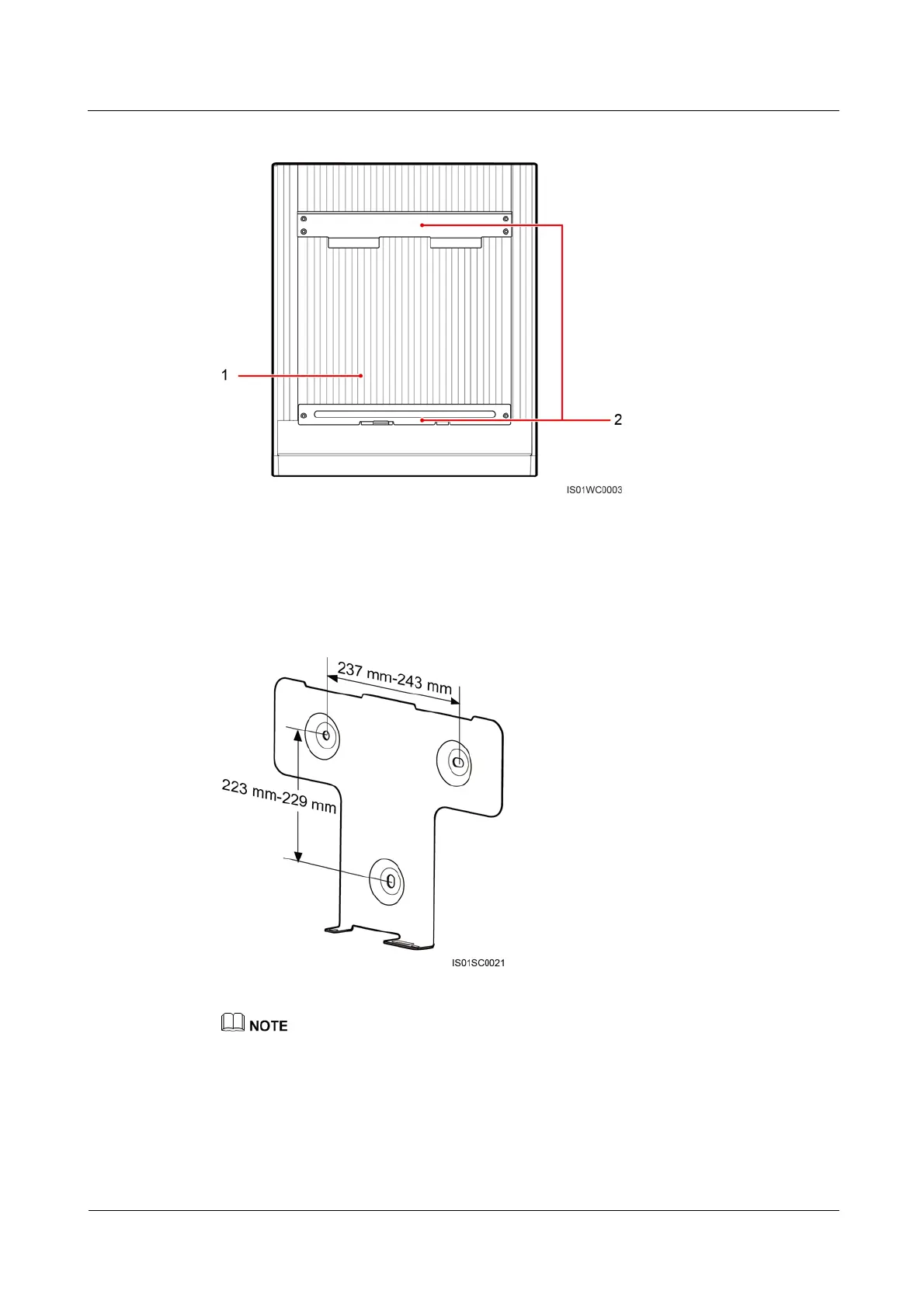

Figure 4-14 SUN2000 rear view
(1) Heat sink
(2) Mounting bracket
Figure 4-15 shows the dimensions of holes in the rear panel of the SUN2000.
Figure 4-15 Dimensions of holes in the SUN2000 rear panel

If the installation location is near the ground, connect the PGND cable to the ground before
installing the SUN2000. For details, refer to 5.1 Connecting PGND Cables.

It is recommended that the SUN2000 be installed at eye level to facilitate operation and
maintenance.

Huawei SUN2000-17KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
MPPT voltage range	200 V - 1000 V
Max. input current per MPPT	26 A
Number of MPPTs	2
AC nominal power	17000 W
Operating temperature range	-25°C to +60°C
Cooling	Natural Convection
Protection rating	IP65
Max. AC power	18700 VA
Rated AC voltage	220 V / 380 V, 230 V / 400 V
