SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Copyright © Huawei Technologies Co., Ltd.
33
Procedure
Step 1 Locate the positions for drilling holes using the rear panel provided with the SUN2000 in the
packing case, and mark the positions using a marker, as shown in Figure 4-16.

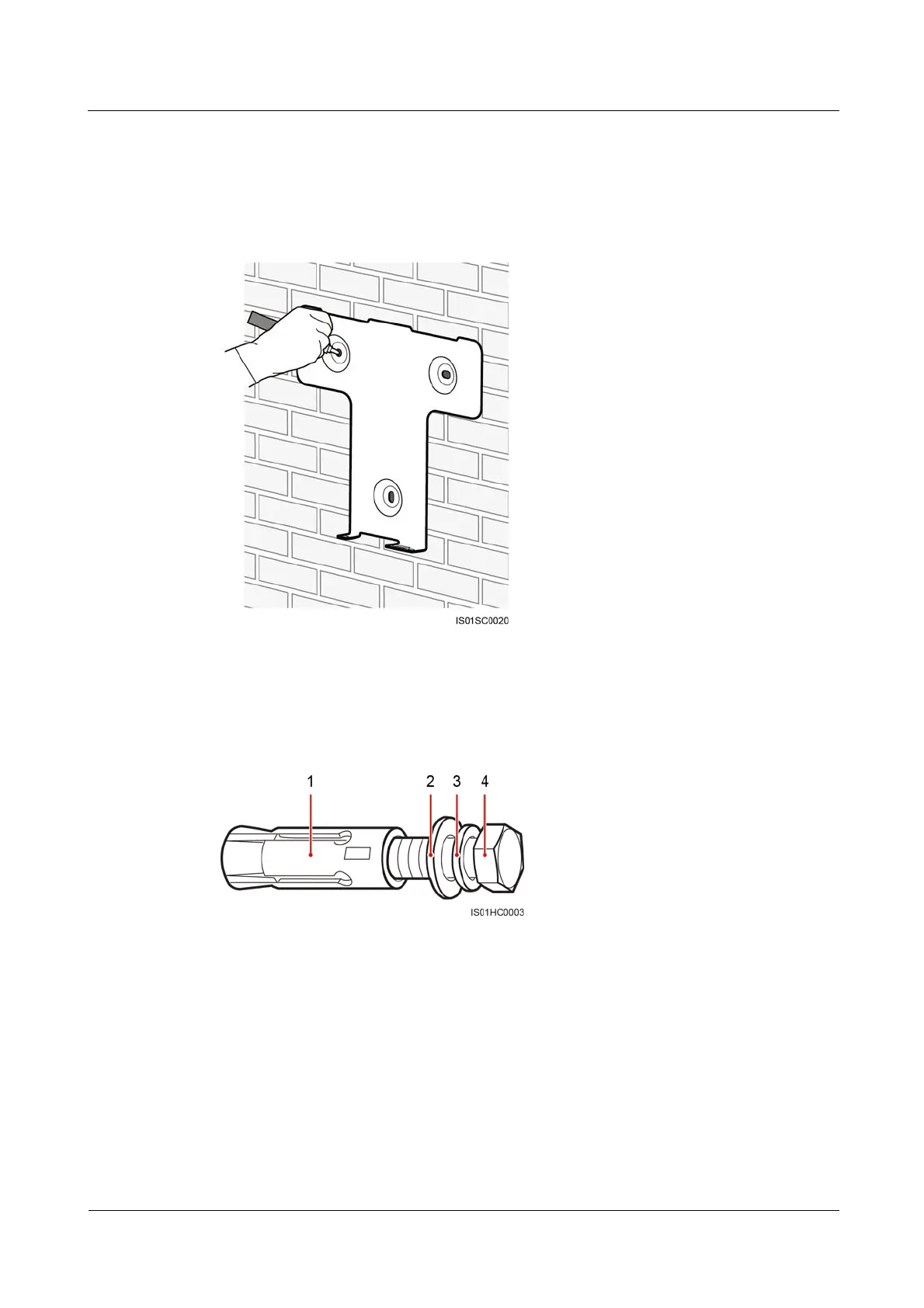

Figure 4-16 Locating and marking the hole positions
Step 2 Drill holes using a hammer drill and install expansion bolts, as shown in Figure 4-18.
An expansion bolt is composed of four parts, as shown in Figure 4-17.
Figure 4-17 Expansion bolt composition
(1) Expansion sleeve
(2) Flat washer
(3) Spring washer
(4) M10x60 bolt
