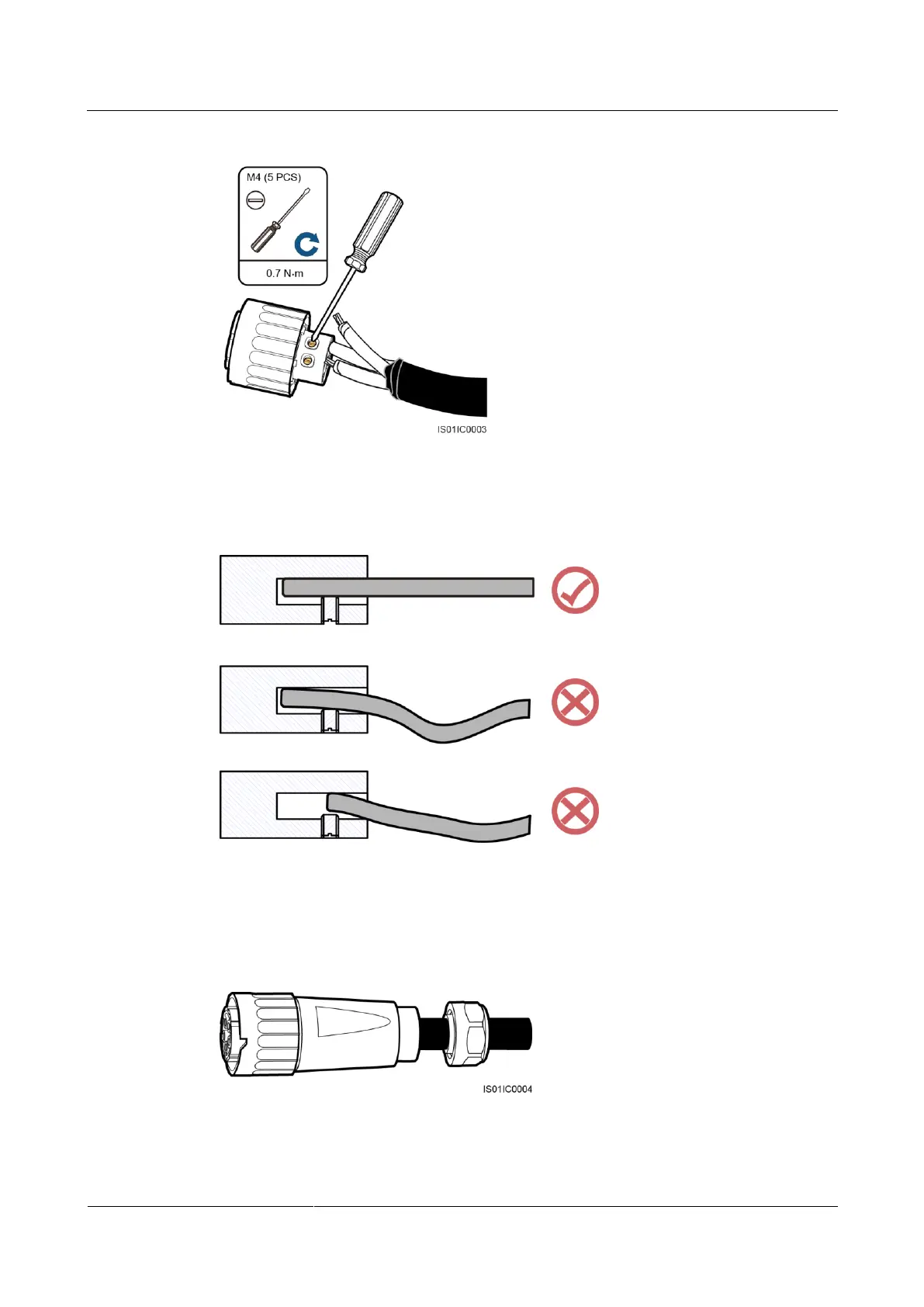

Figure 5-10 Connecting cables to an auxiliary connector
Step 5 Check that all core wires are properly connected, as shown in Figure 5-11.
Figure 5-11 Checking the cable connection
Step 6 Secure the adapter to the coupling nut, as shown in Figure 5-12.
Tighten the adapter to a torque of 1-2 N.m.
Figure 5-12 Installing a socket
Step 7 Secure the cable gland to the adapter, as shown in Figure 5-13.
