● If a single ladder is used, ensure that the wider end of the ladder is at the
bottom, and take protective measures to prevent the ladder from sliding.
● If a single ladder is used, do not climb higher than the fourth rung of the
ladder from the top.

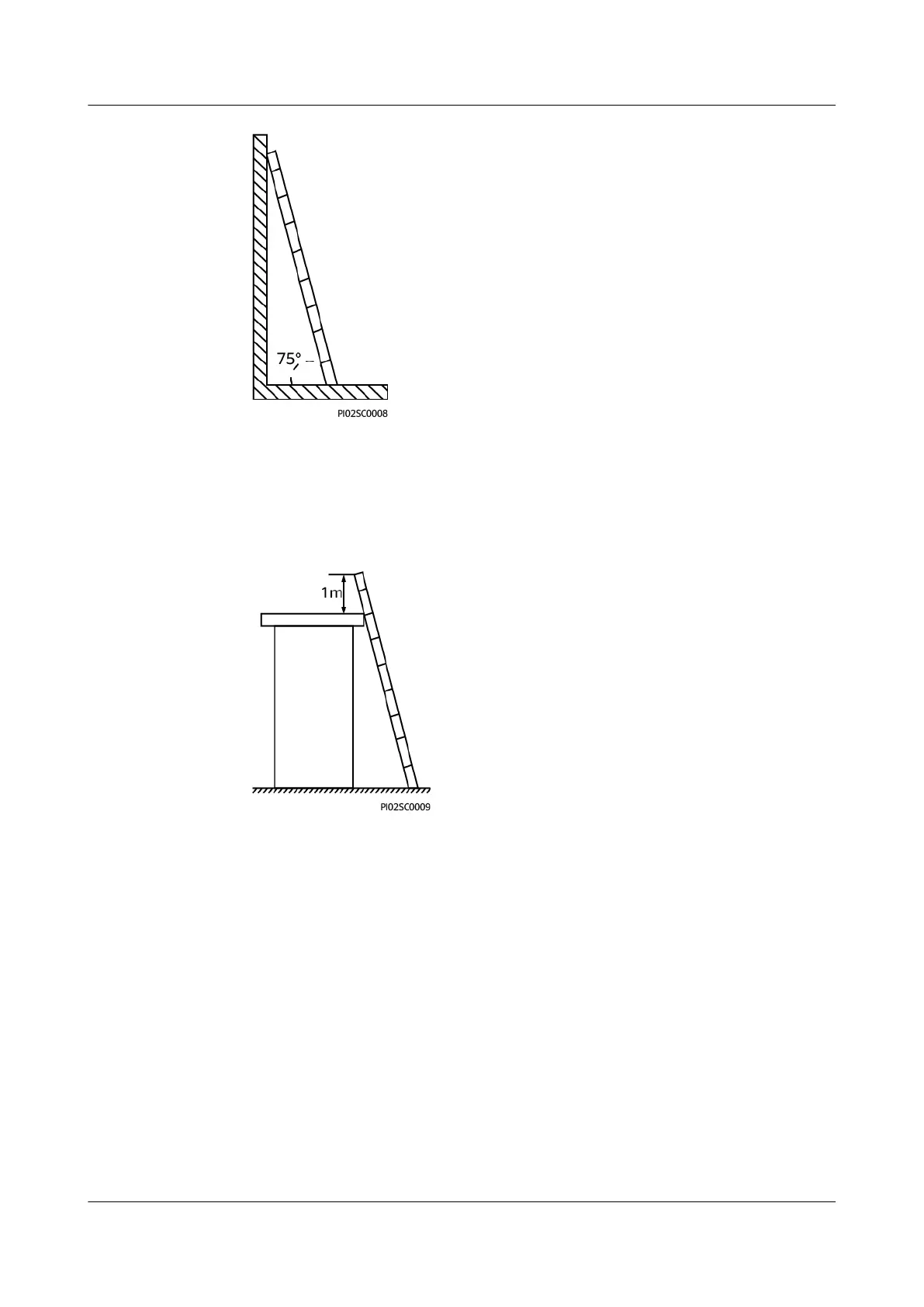

● If you use a single ladder to climb up to a platform, ensure that the ladder is
at least 1 m higher than the platform.
Hoisting
● Only trained and qualied personnel are allowed to perform hoisting
operations.
● Install temporary warning signs or fences to isolate the hoisting area.
● Ensure that the foundation where hoisting is performed on meets the load-
bearing requirements.
● Before hoisting objects, ensure that hoisting tools are rmly secured onto a
xed object or wall that meets the load-bearing requirements.
● During hoisting, do not stand or walk under the crane or the hoisted objects.
● Do not drag steel ropes and hoisting tools or bump the hoisted objects
against hard objects during hoisting.
● Ensure that the angle between two hoisting ropes is no more than 90
degrees, as shown in the following gure.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 1 Safety Information
Issue 18 (2024-03-10) Copyright © Huawei Technologies Co., Ltd. 11

Huawei SUN2000-30KTL-M3 Specifications

General

Model	SUN2000-30KTL-M3
Max. DC Input Voltage	1100 V
Number of MPPTs	3
Rated AC Output Power	30000 W
Max. Output Current	47.8 A
Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	< 3%
Max. Efficiency	98.7%
European Weighted Efficiency	98.4%
DC Connection	MC4
Protection Degree	IP66
Cooling Method	Natural convection
MPPT Voltage Range	200 V - 1000 V
Max. AC Output Power	33000 W
Rated AC Voltage	400 V
AC Voltage Range	320 V - 480 V
Display	LED Indicators
Communication	RS485, WLAN
Operating Temperature Range	-25°C to 60°C
Relative Humidity	0% - 100%
Operating Altitude	4000 m
Weight	43 kg
Dimensions	640 x 530 x 270 mm
Max. DC Input Power	45000 Wp
