No. Check Item Acceptance Criteria
9 Installation environment The installation space is proper, and
the installation environment is clean
and tidy.
6.2 System Power-On
Prerequisites
D ANGER
● Wear personal protective equipment and use dedicated insulated tools to avoid
electric shocks or short circuits.
NO TICE
● Before turning on the AC switch between the inverter and the power grid,
check that the AC voltage is within the specied range using a multimeter.
● If the DC power supply is connected but the AC power supply is disconnected,
the inverter will report a Grid Loss alarm. The inverter can start properly only
after the power grid recovers.
Procedure
Step 1 Turn on the AC switch between the inverter and the power grid.
Step 2 (Optional) Remove the locking screw next to the DC SWITCH.

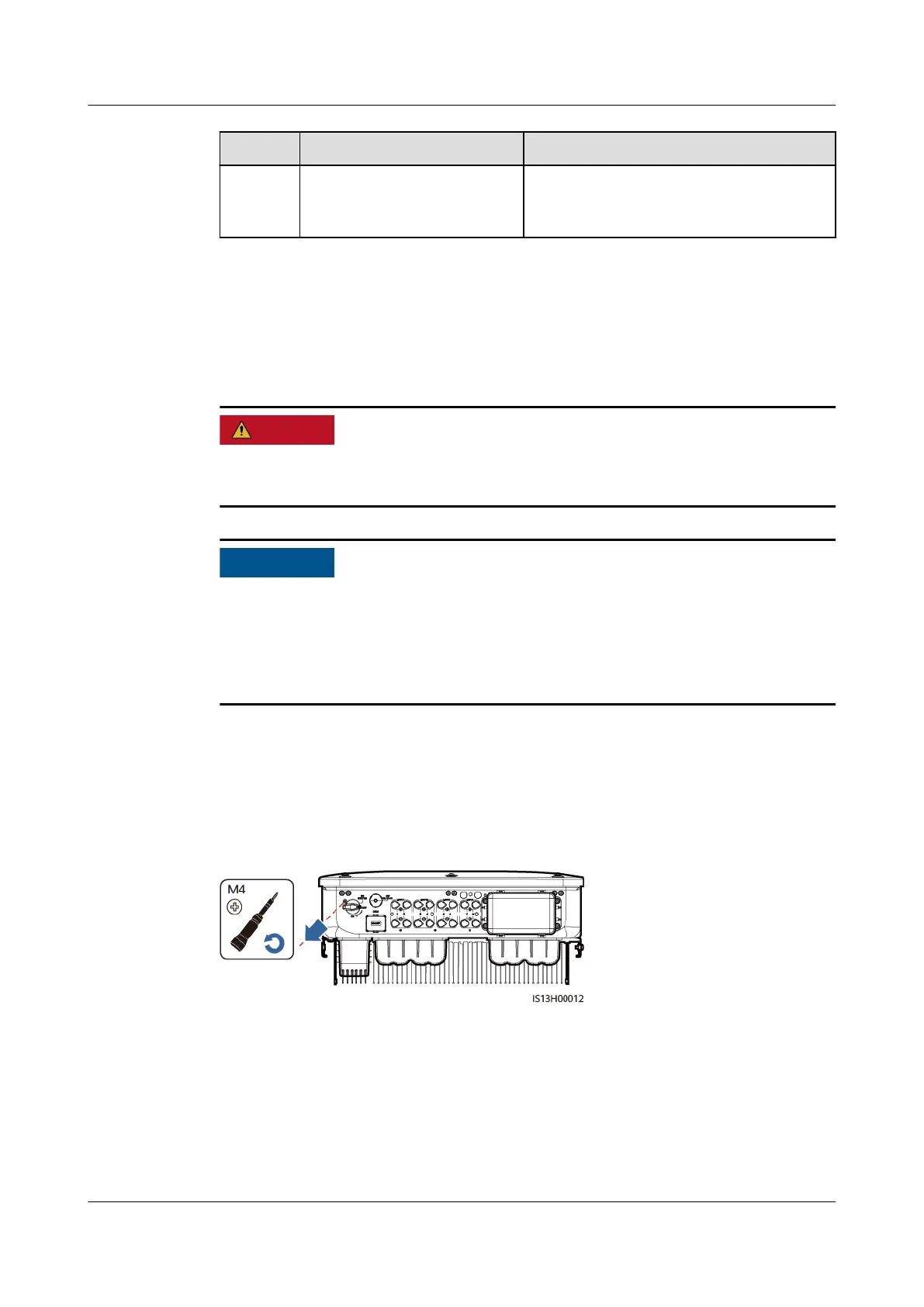

Figure 6-1 Removing the DC SWITCH locking screw
Step 3 Turn on the DC SWITCH at the bottom of the inverter.
Step 4 Observe the LED indicators to check the operating status of the inverter.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 6 Commissioning
Issue 18 (2024-03-10) Copyright © Huawei Technologies Co., Ltd. 65

Huawei SUN2000-30KTL-M3 Specifications

General

Model	SUN2000-30KTL-M3
Max. DC Input Voltage	1100 V
Number of MPPTs	3
Rated AC Output Power	30000 W
Max. Output Current	47.8 A
Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	< 3%
Max. Efficiency	98.7%
European Weighted Efficiency	98.4%
DC Connection	MC4
Protection Degree	IP66
Cooling Method	Natural convection
MPPT Voltage Range	200 V - 1000 V
Max. AC Output Power	33000 W
Rated AC Voltage	400 V
AC Voltage Range	320 V - 480 V
Display	LED Indicators
Communication	RS485, WLAN
Operating Temperature Range	-25°C to 60°C
Relative Humidity	0% - 100%
Operating Altitude	4000 m
Weight	43 kg
Dimensions	640 x 530 x 270 mm
Max. DC Input Power	45000 Wp
