5.7.3 (Optional) Connecting the RS485 Communications Cable
to the Power Meter
Procedure
Step 1 Connect the signal cable to the signal cable connector.

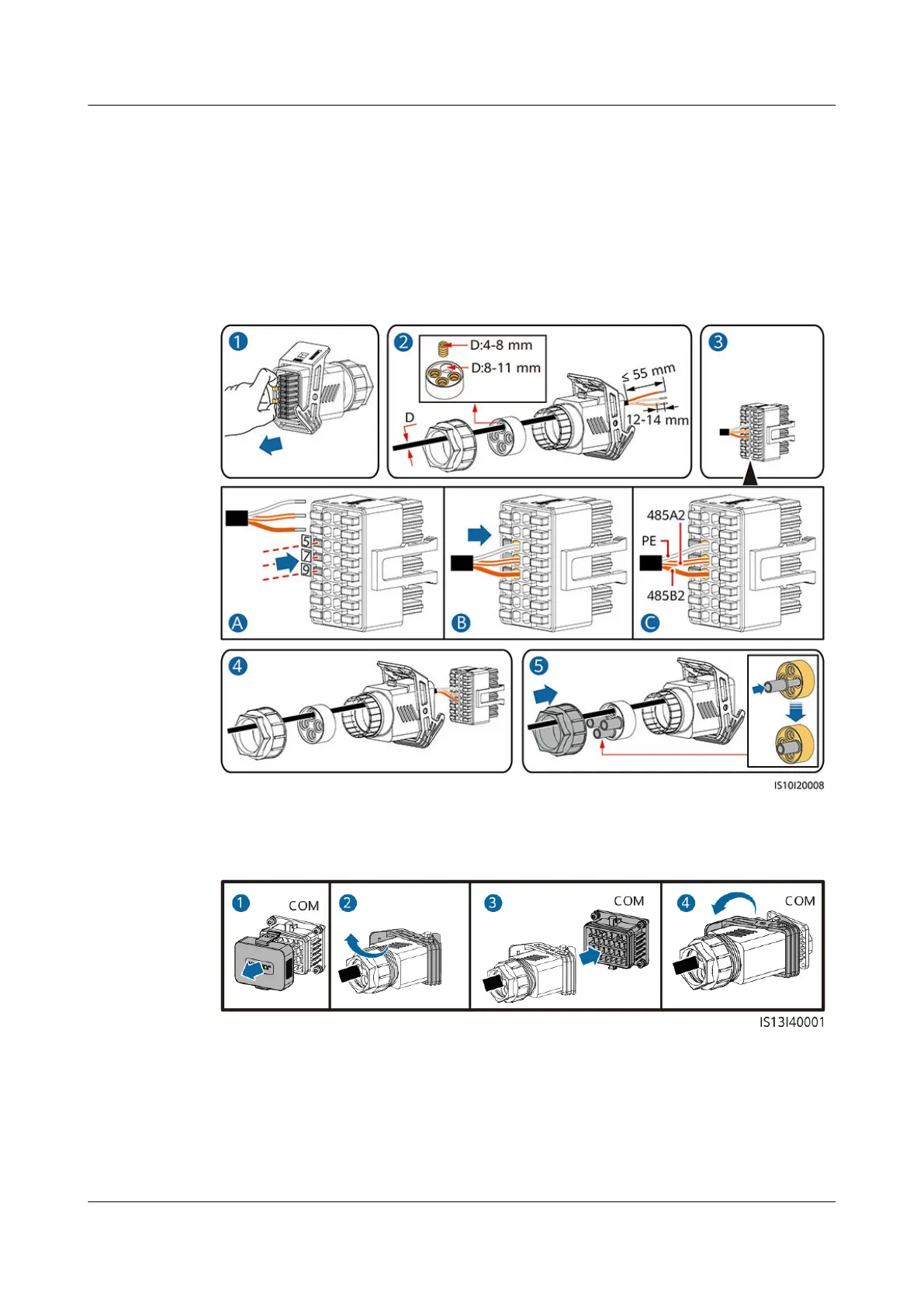

Figure 5-27 Installing the cable
Step 2 Connect the signal cable connector to the COM port.
Figure 5-28 Securing the signal cable connector
----End
