Huawei SUN2000-30KTL-M3 User Manual

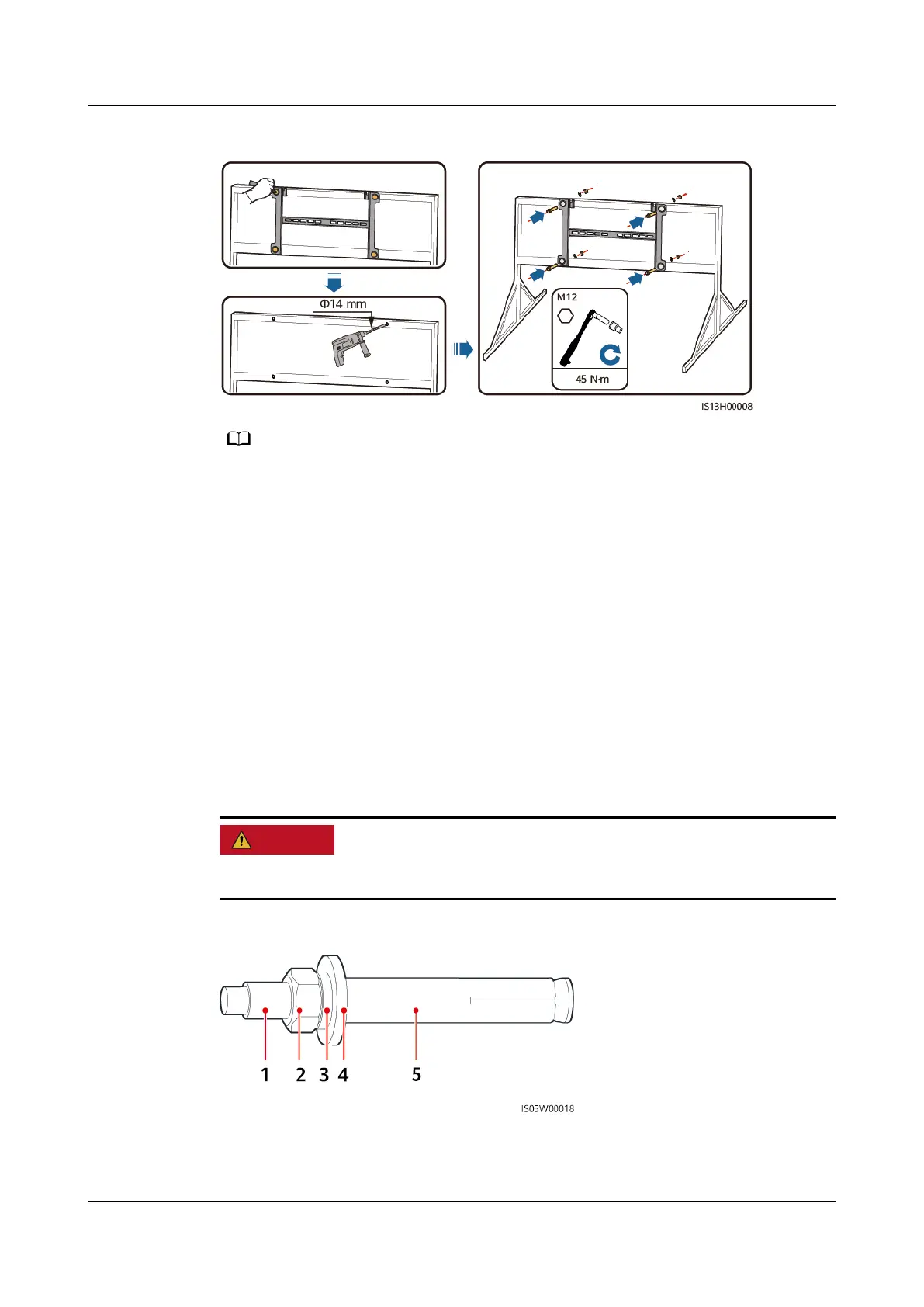

Figure 4-11 Securing the mounting bracket
NO TE
You are advised to apply anti-rust paint on the hole positions for protection.
----End
4.5.2 Wall Mounting
Prerequisites
You have prepared expansion bolts. M12x60 stainless steel expansion bolts are
recommended.
Procedure
Step 1 Determine the hole positions and mark them using a marker.
Step 2 Secure the mounting bracket.
D ANGER
Avoid drilling holes into the water pipes or power cables buried in the wall.
Figure 4-12 Expansion bolt structure
(1) Bolt
(2) Nut (3) Spring washer
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 4 Installation
Issue 18 (2024-03-10) Copyright © Huawei Technologies Co., Ltd. 33

Huawei SUN2000-30KTL-M3 Specifications

General

Model	SUN2000-30KTL-M3
Max. DC Input Voltage	1100 V
Number of MPPTs	3
Rated AC Output Power	30000 W
Max. Output Current	47.8 A
Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	< 3%
Max. Efficiency	98.7%
European Weighted Efficiency	98.4%
DC Connection	MC4
Protection Degree	IP66
Cooling Method	Natural convection
MPPT Voltage Range	200 V - 1000 V
Max. AC Output Power	33000 W
Rated AC Voltage	400 V
AC Voltage Range	320 V - 480 V
Display	LED Indicators
Communication	RS485, WLAN
Operating Temperature Range	-25°C to 60°C
Relative Humidity	0% - 100%
Operating Altitude	4000 m
Weight	43 kg
Dimensions	640 x 530 x 270 mm
Max. DC Input Power	45000 Wp
