Huawei SUN2000-30KTL-M3 User Manual

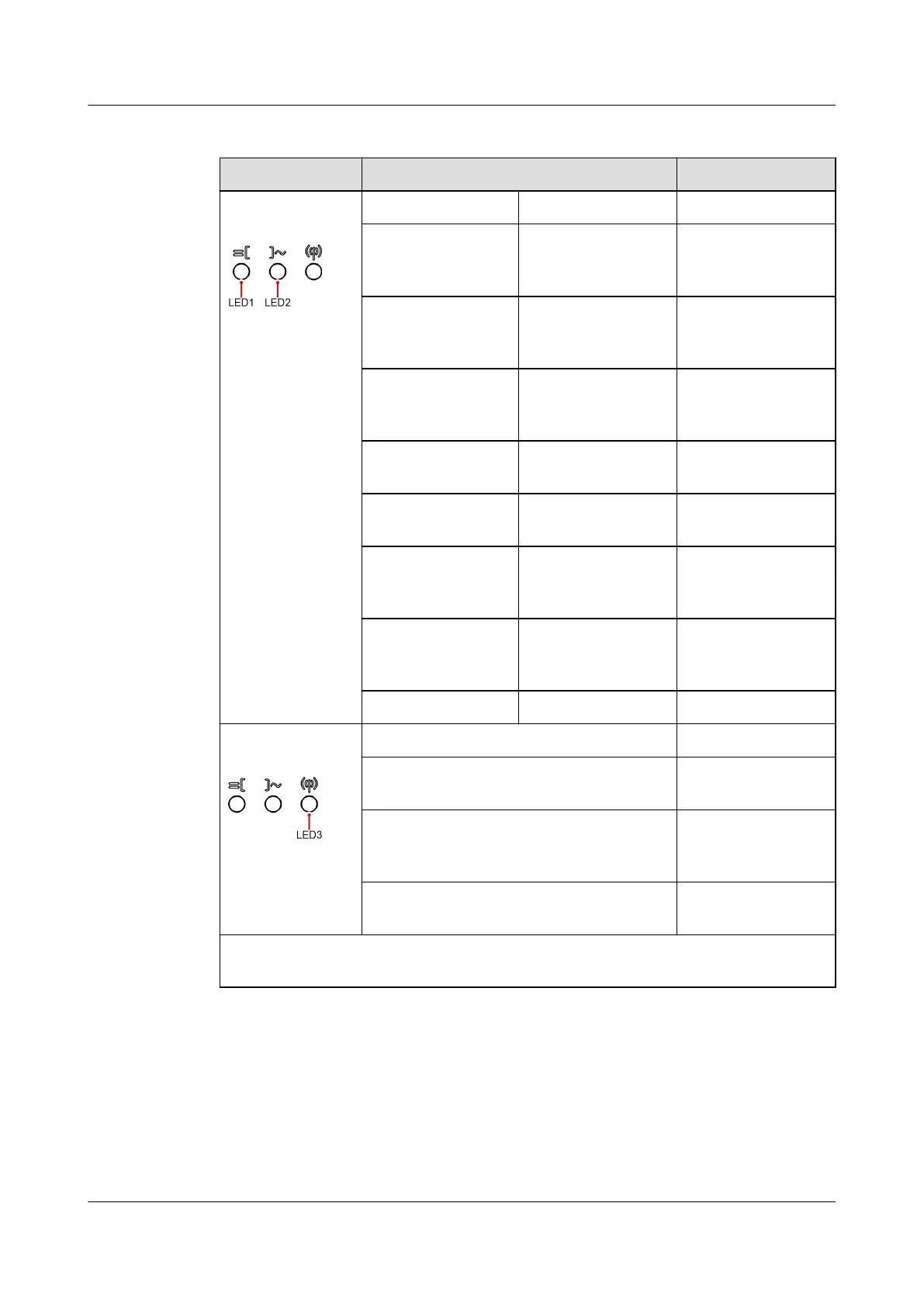

Table 6-2 LED indicator description
Category Status Description
Running
indicator
LED1 LED2 –
Steady green Steady green The inverter is
running in on-grid
state.
Blinking green
slowly (on for 1s
and o for 1s)
O The DC is on and
the AC is o.
Blinking green
slowly (on for 1s
and o for 1s)
Blinking green
slowly (on for 1s
and o for 1s)
Both the DC and
AC are on, and the
inverter is o-grid.
O Blinking green
slowly
The DC is o and
the AC is on.
O O Both the DC and
AC are o.
Blinking red fast
(on for 0.2s and
o for 0.2s)
– There is a DC
environmental
alarm.
– Blinking red fast
(on for 0.2s and
o for 0.2s)
There is an AC
environmental
alarm.
Steady red Steady red A fault exists.
Communication
indicator
LED3 –
Blinking green fast (on for 0.2s and o
for 0.2s)
Communication is
in progress.
Blinking green slowly (on for 1s and o
for 1s)
A mobile phone is
connected to the
inverter.
O There is no
communication.
Note: If LED1, LED2, and LED3 are steady red, the inverter is faulty and needs to
be replaced.
----End
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 6 Commissioning
Issue 18 (2024-03-10) Copyright © Huawei Technologies Co., Ltd. 66

Huawei SUN2000-30KTL-M3 Specifications

General

Model	SUN2000-30KTL-M3
Max. DC Input Voltage	1100 V
Number of MPPTs	3
Rated AC Output Power	30000 W
Max. Output Current	47.8 A
Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	< 3%
Max. Efficiency	98.7%
European Weighted Efficiency	98.4%
DC Connection	MC4
Protection Degree	IP66
Cooling Method	Natural convection
MPPT Voltage Range	200 V - 1000 V
Max. AC Output Power	33000 W
Rated AC Voltage	400 V
AC Voltage Range	320 V - 480 V
Display	LED Indicators
Communication	RS485, WLAN
Operating Temperature Range	-25°C to 60°C
Relative Humidity	0% - 100%
Operating Altitude	4000 m
Weight	43 kg
Dimensions	640 x 530 x 270 mm
Max. DC Input Power	45000 Wp
