Huawei SUN2000-3KTL-M1 Series User Manual

(1) LED indicator (2) Front panel
(3) Hanging kit (4) Mounting bracket
(5) Heat sink (6) Ventilation valve
(7) Ground screw (8) AC output port (AC)
(9) Communications port (COM) (10) Smart Dongle port (GPRS/4G/
WLAN-FE)
(11) Battery terminals (BAT+/BAT–) (12) DC input terminals (PV2+/PV2–)
(13) DC input terminals (PV1+/PV1–) (14) DC switch (DC SWITCH)
(15) Hole for the DC switch locking screw
NO TE
Two M6 screw holes are reserved on the left and right sides of the SUN2000 for installing
the awning.

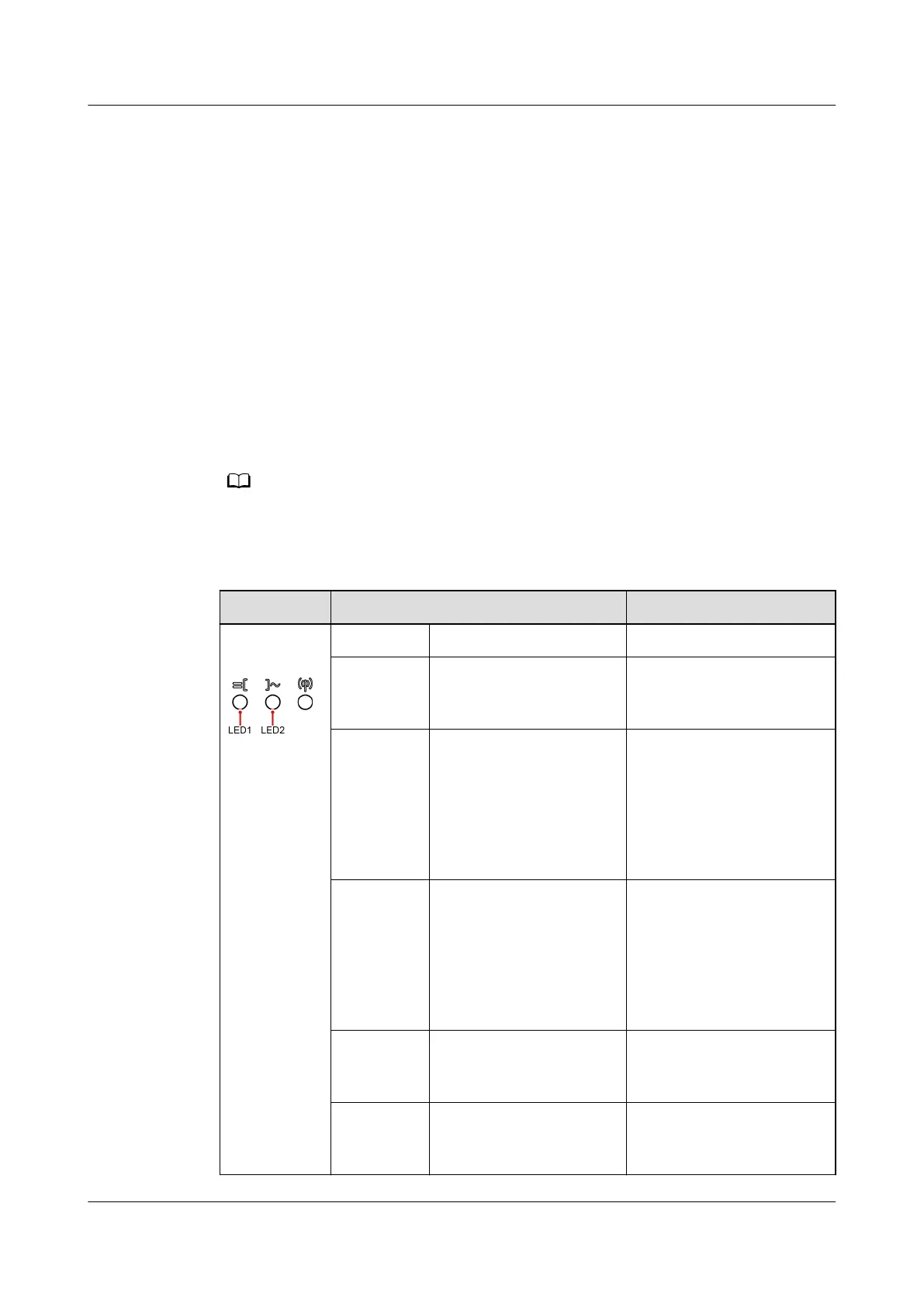

Table 2-2 Indicator description
Category
Status Description
Running
indicator
LED1 LED2 -
Steady
green
Steady green The SUN2000 is
operating in grid-tied
mode.
Blinking
green at
long
intervals
(on for 1s
and then
o for 1s)
O The DC is on and the AC
is o.
Blinking
green at
long
intervals
(on for 1s
and then
o for 1s)
Blinking green at long
intervals (on for 1s and
then o for 1s)
Both the DC and AC are
on, and the SUN2000 is
not supplying power to
the power grid.
O Blinking green at long
intervals (on for 1s and
then o for 1s)
The DC is o and the AC
is on.
Steady
orange
Steady orange The SUN2000 is
operating in the o-grid
mode.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 2 Overview
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 17

Huawei SUN2000-3KTL-M1 Series Specifications

General

Max. efficiency	98.4%
European efficiency	97.8%
Rated AC output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Topology	Transformerless
Protection Degree	IP65
Number of MPP Trackers	2
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Max. DC Power	4500 W
Max. Input Current	11 A
Power Factor	0.8 leading - 0.8 lagging
Max. apparent power	3300 VA
AC output voltage	220 V / 230 V / 240 V
