NO TE
Two M6 screw holes are reserved on both left and right sides of the enclosure for installing
an awning.
4.5.1 Wall-mounted Installation
Procedure
Step 1 Determine the positions for drilling holes and mark the positions using a marker.
Step 2 Secure the mounting bracket.
NO TE
M6x60 expansion bolts are delivered with the SUN2000. If the length and number of the
bolts do not meet installation requirements, prepare M6 stainless steel expansion bolts
by yourself.
The expansion bolts delivered with the inverter are used for solid concrete walls. For
other types of walls, prepare bolts by yourself and ensure that the wall meets the load
bearing requirements of the inverter.

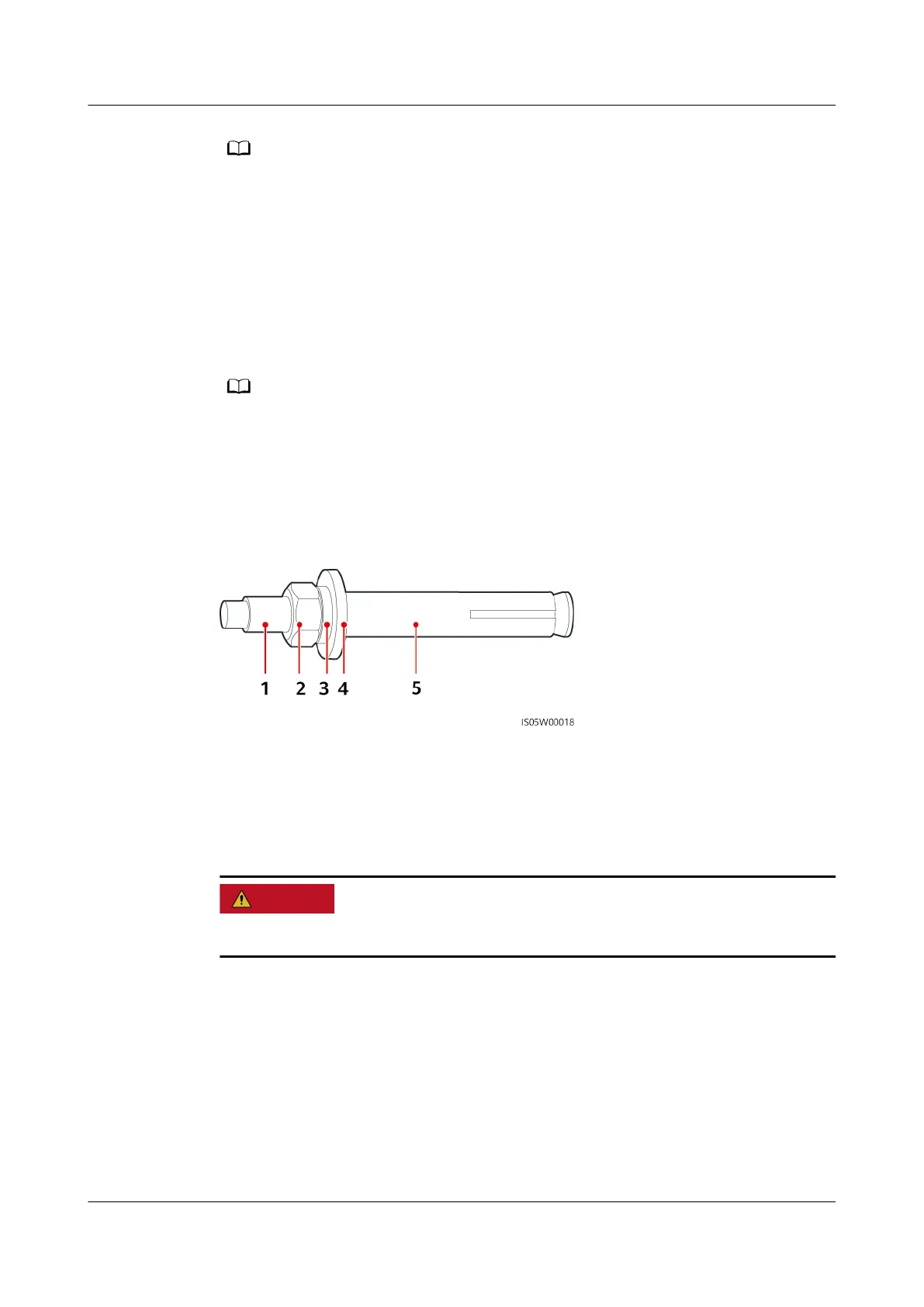

Figure 4-8 Expansion bolt composition
(1) Bolt
(2) Nut (3) Spring washer
(4) Flat washer (5) Expansion sleeve
D ANGER
Avoid drilling holes in the water pipes and cables buried in the wall.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 4 Installation
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 32

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei SUN2000-3KTL-M1 Series and is the answer not in the manual?

Huawei SUN2000-3KTL-M1 Series Specifications

General IconGeneral
Max. efficiency98.4%
European efficiency97.8%
Rated AC output power3000 W
Dimensions (W x H x D)365 x 365 x 156 mm
Operating temperature range-25°C to +60°C
TopologyTransformerless
Protection DegreeIP65
Number of MPP Trackers2
Output Frequency50 Hz / 60 Hz
Cooling MethodNatural Convection
Max. DC Power4500 W
Max. Input Current11 A
Power Factor0.8 leading - 0.8 lagging
Max. apparent power3300 VA
AC output voltage220 V / 230 V / 240 V
