2.4 Working Principles
2.4.1 Circuit Diagram
Two PV strings connect to the SUN2000, and their maximum power points are
tracked by two maximum power point tracking (MPPT) circuits. The SUN2000
converts DC power into three-phase AC power through an inverter circuit. Surge
protection is supported on both the DC and AC sides.

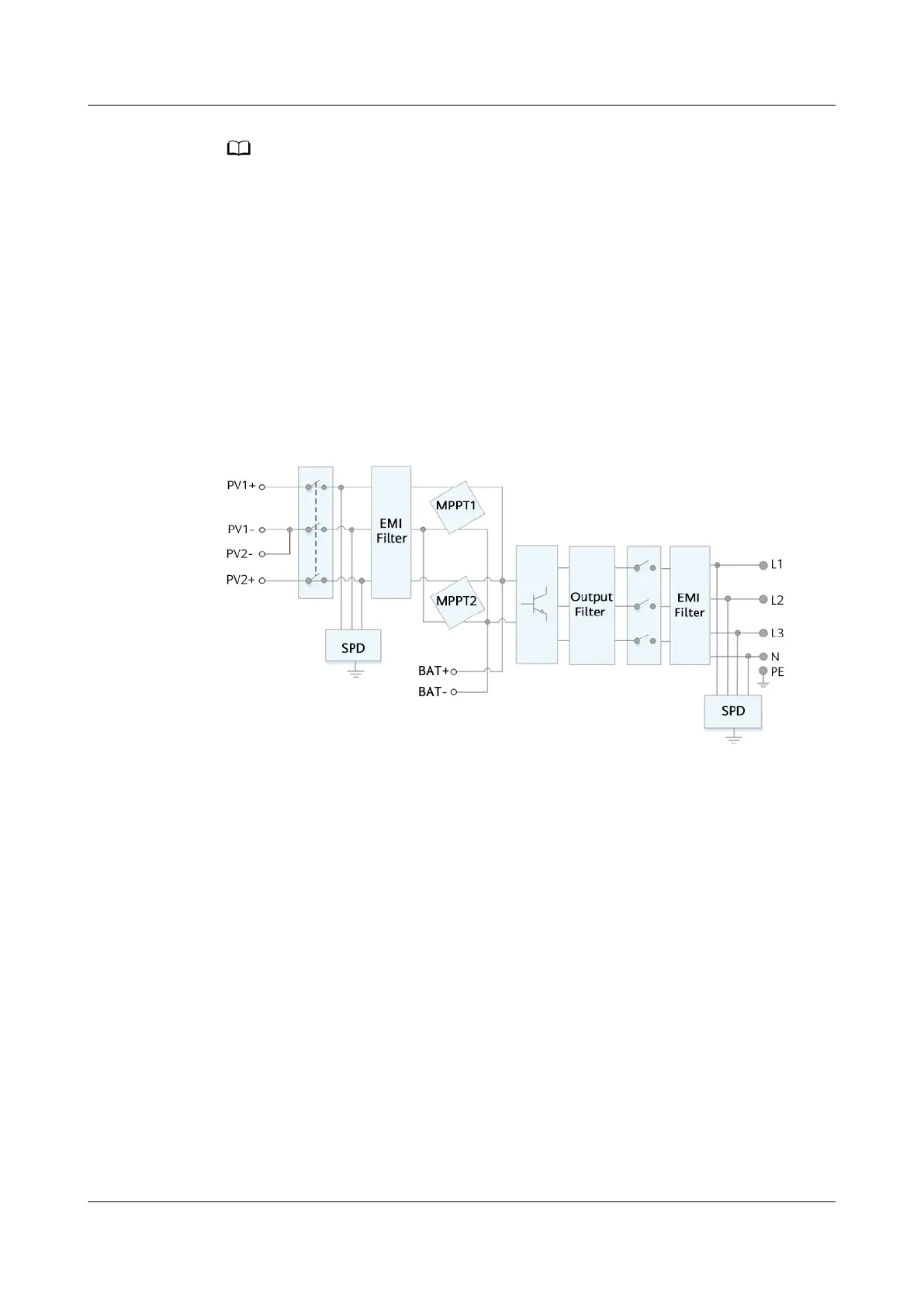

Figure 2-6 SUN2000 conceptual diagram
2.4.2 Working Modes
The SUN2000 can work in Standby, Operating, or Shutdown mode.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 2 Overview
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 21

Huawei SUN2000-3KTL-M1 Series Specifications

General

Max. efficiency	98.4%
European efficiency	97.8%
Rated AC output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Topology	Transformerless
Protection Degree	IP65
Number of MPP Trackers	2
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Max. DC Power	4500 W
Max. Input Current	11 A
Power Factor	0.8 leading - 0.8 lagging
Max. apparent power	3300 VA
AC output voltage	220 V / 230 V / 240 V
