Huawei SUN2000-3KTL-M1 Series User Manual

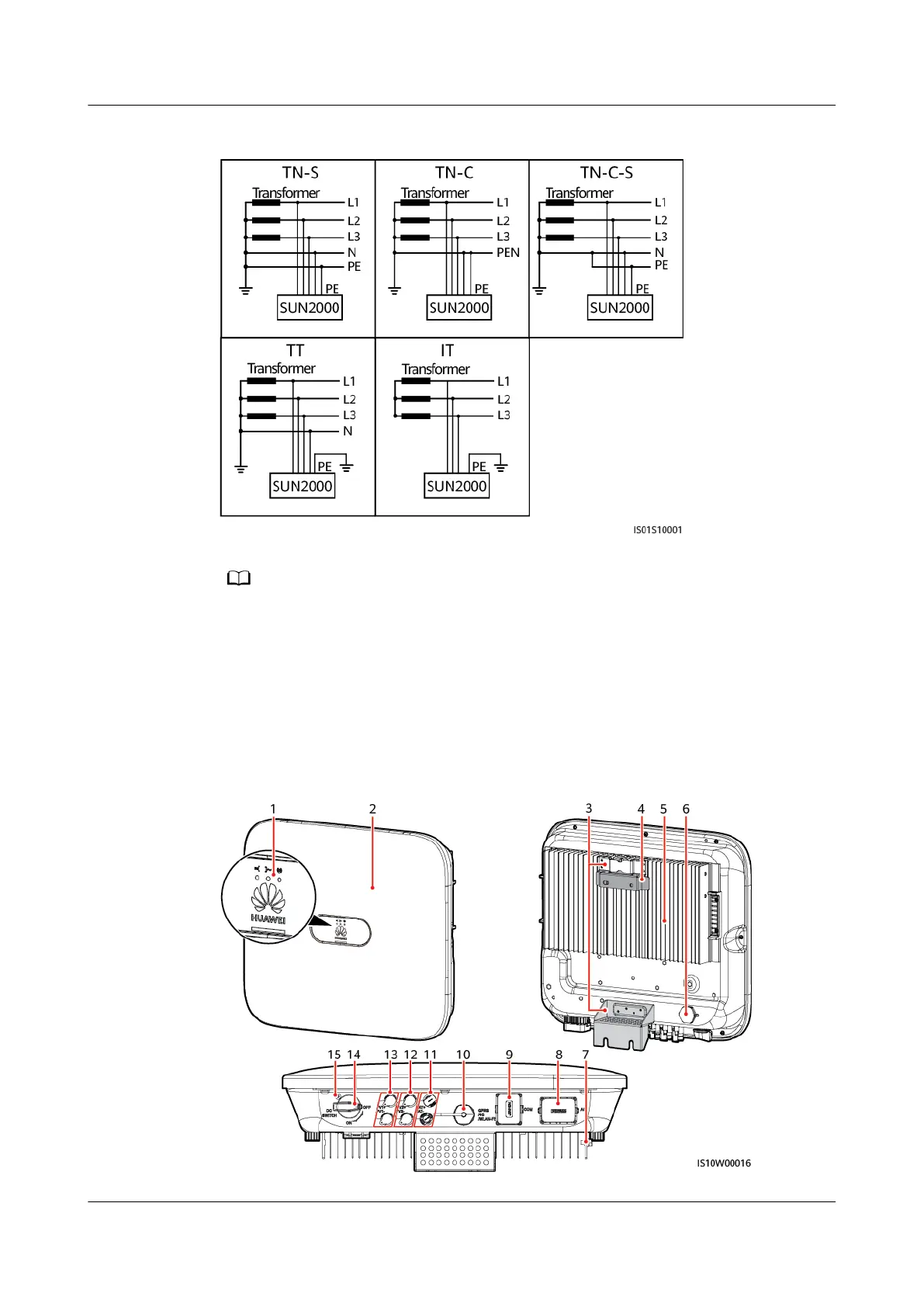

Figure 2-3 Power grid types
NO TE
● When the SUN2000 is used in the TT power grid, the N-to-PE voltage must be less than
30 V.
● When the SUN2000 is used in the IT power grid, set Isolation to Input ungrounded,
with TF.
2.2 Appearance
Figure 2-4 Appearance
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 2 Overview
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 16

Huawei SUN2000-3KTL-M1 Series Specifications

General

Max. efficiency	98.4%
European efficiency	97.8%
Rated AC output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Topology	Transformerless
Protection Degree	IP65
Number of MPP Trackers	2
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Max. DC Power	4500 W
Max. Input Current	11 A
Power Factor	0.8 leading - 0.8 lagging
Max. apparent power	3300 VA
AC output voltage	220 V / 230 V / 240 V
