D ANGER
The battery voltage may result in serious injury. Use dedicated insulation tools
when connecting cables.
Ensure that cables are correctly connected between the battery terminal and
the battery switch, and between the battery switch and the SUN2000 battery
terminal.
NO TICE
Cables with high rigidity, such as armored cables, are not recommended as battery
cables, because poor contact may be caused by the bending of the cables.
Step 2 Insert the positive and negative connectors into corresponding battery terminals
on the SUN2000.
NO TICE
After the positive and negative connectors snap into place, pull the battery cables
back to ensure that they are connected securely.

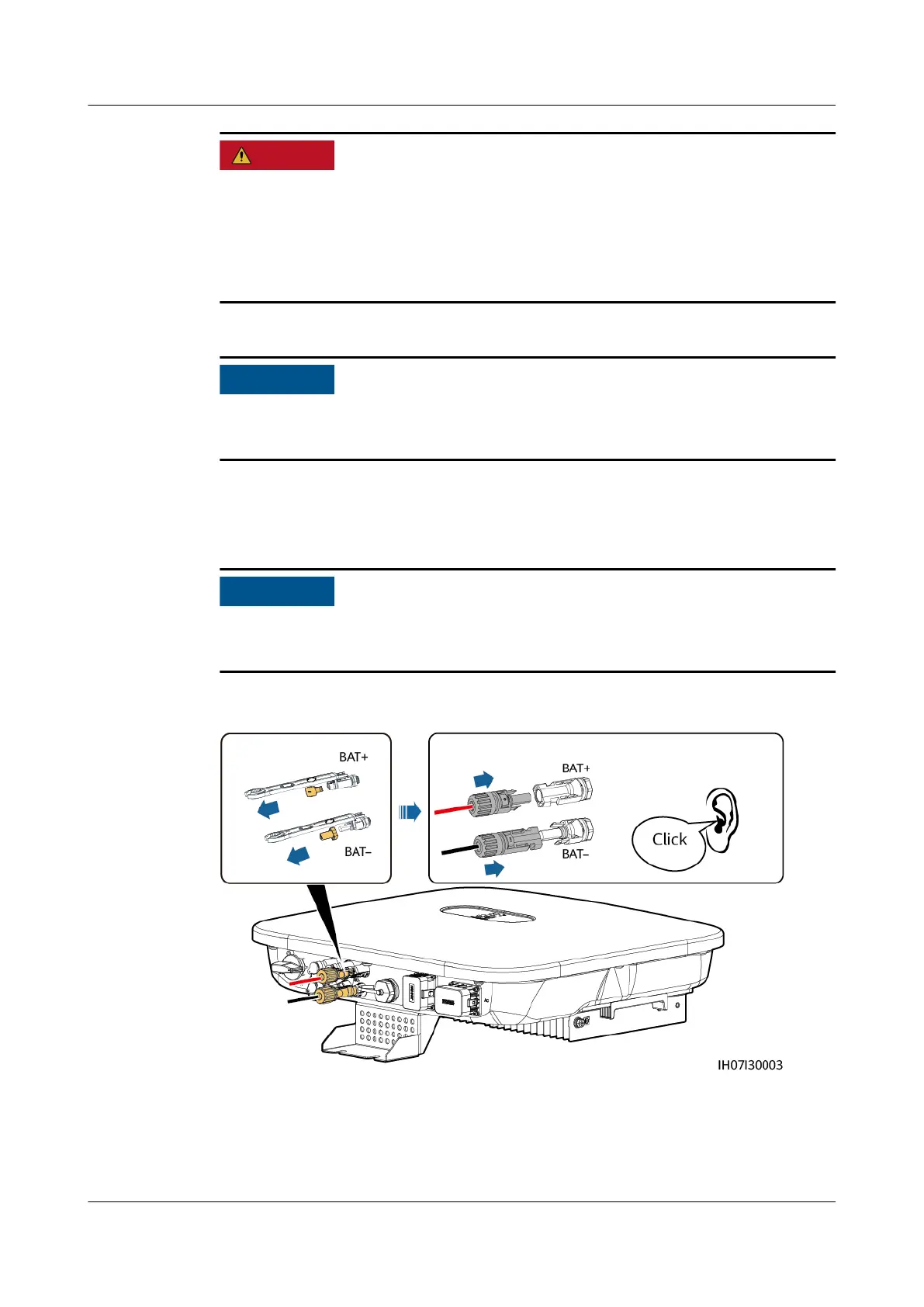

Figure 5-15 Connecting battery cables
----End
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 5 Electrical Connections
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 54
