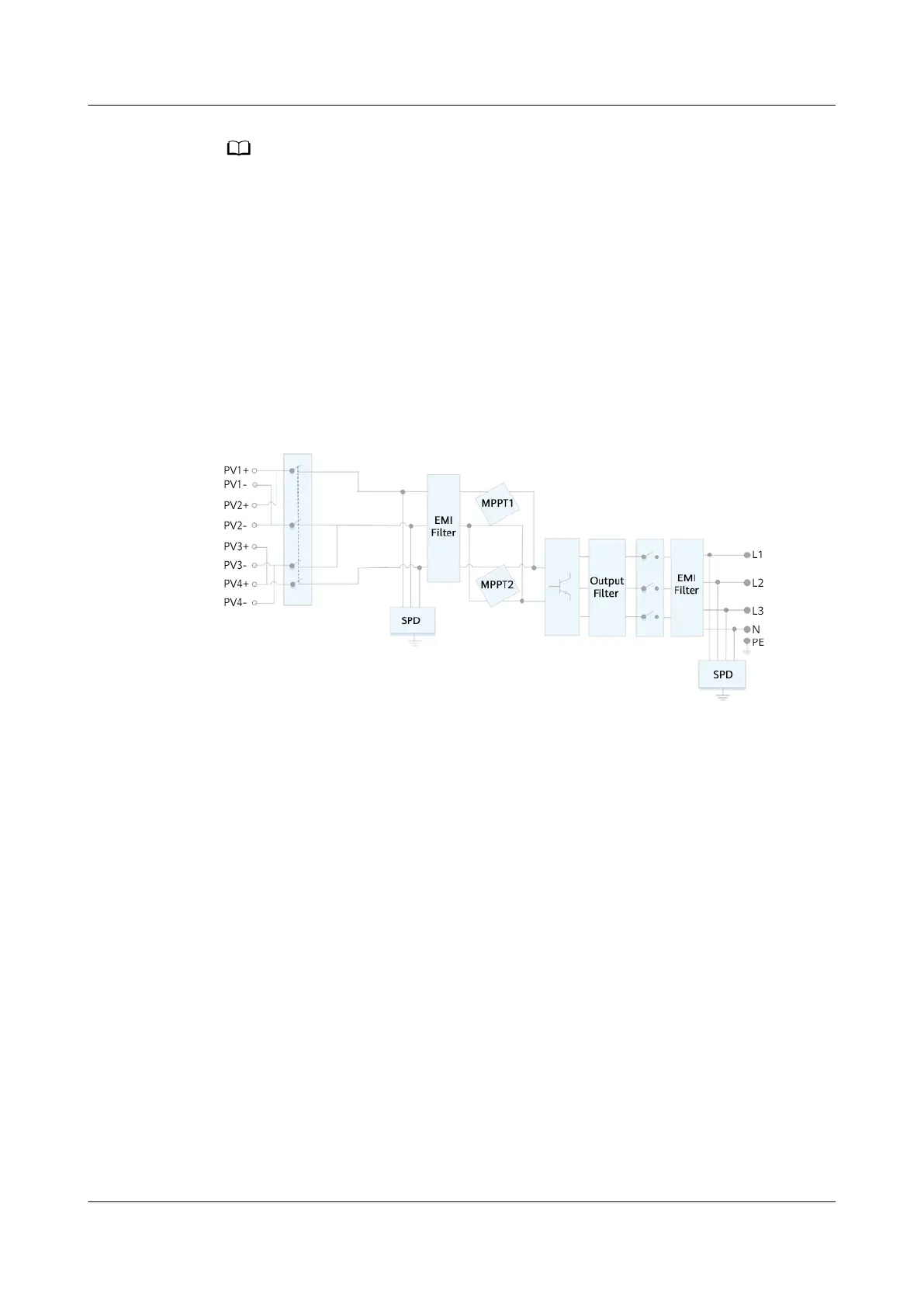

Huawei SUN2000-8KTL-M0 - Wall-Mounted Installation

SUN2000-(12KTL, 15KTL, 17KTL, 20KTL)-M0
User Manual
4 Installation
Issue 03 (2019-07-19)
Copyright © Huawei Technologies Co., Ltd.
23
4.5.1 Wall-mounted Installation
Procedure
Step 1 Determine the installation positions for drilling holes, and mark the positions using a marker.
Step 2 Secure the mounting brackets.

M6x60 expansion bolts are delivered with the SUN2000. If the length and amount of the bolts do not
meet installation requirements, prepare M6 stainless steel expansion bolts by yourself.

The expansion bolts delivered with the inverter are used for solid concrete walls. For other types of
walls, prepare bolts by yourself and ensure that the wall meets the load bearing requirements of the
inverter.
Figure 4-8 Expansion bolt composition
(1) Bolt
(2) Nut
(3) Spring washer
(4) Flat washer
(5) Expansion tube
Avoid drilling holes in the utility pipes or cables attached to the back of the wall.
