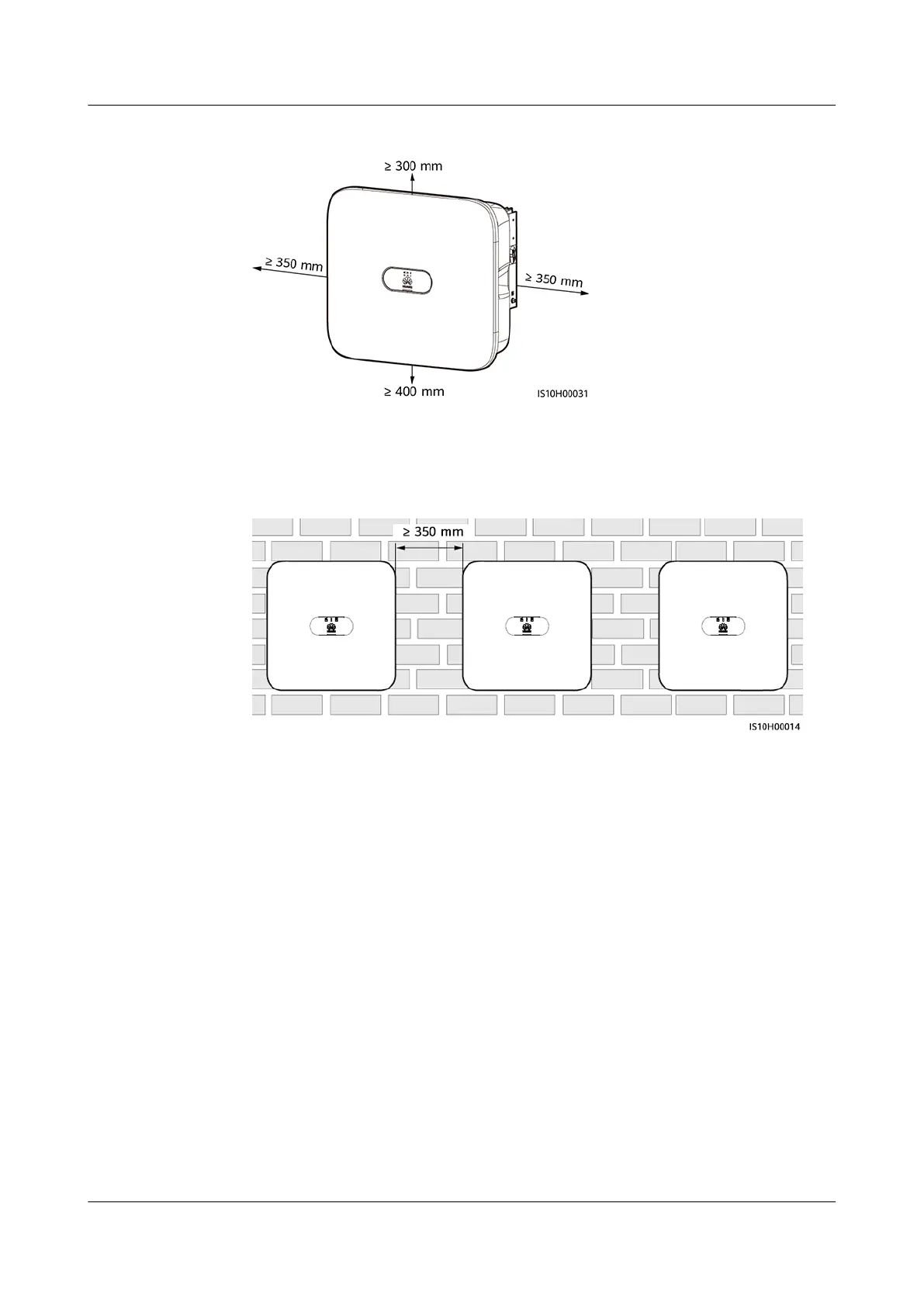

Huawei SUN2000-8KTL-M0 - Preparing for Installation

SUN2000-(12KTL, 15KTL, 17KTL, 20KTL)-M0
User Manual
5 Electrical Connections
Issue 03 (2019-07-19)
Copyright © Huawei Technologies Co., Ltd.
30
5.1 Preparing for Installation
Figure 5-1 SUN2000 cable connections (optional in dashed boxes)
If the Smart Dongle is configured, you are advised to install the Smart Dongle before
connecting the signal cable.
Table 5-1 Component description
No.
Component
Description
Source
A
PV module

A PV string is composed of the
PV modules connected in series.

The SUN2000 supports the input
from four PV strings.
Prepared by the
customer
B
DC switch
Recommended: a PV circuit breaker
with a rated voltage greater than or
equal to 1,100 V DC and a rated
current of 15 A.
Prepared by the
customer
