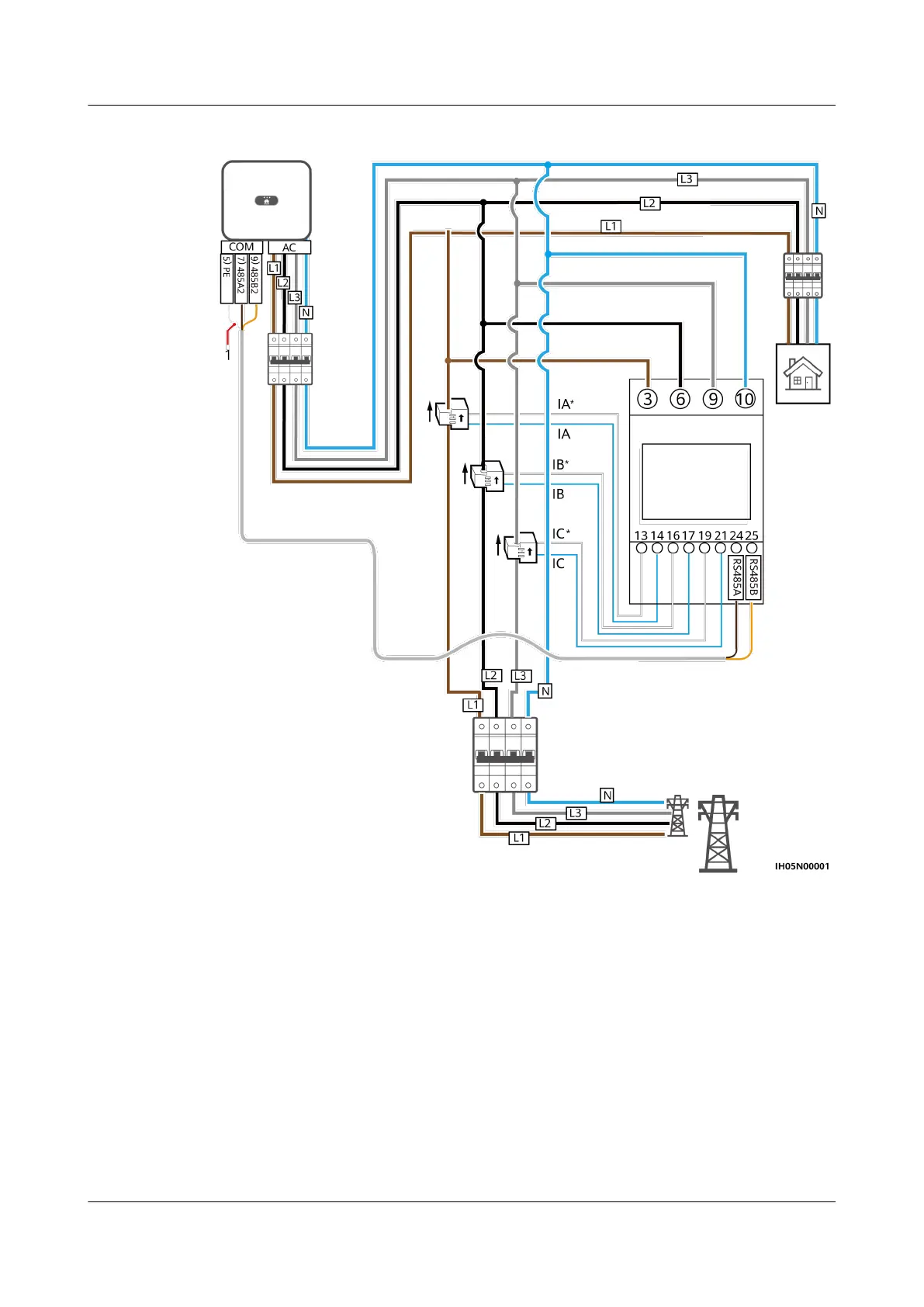

Figure 5-24
Thr
ee-phase, four
-wire connection (Smart Dongle networking)
●
The following
gure
shows the cable connections between the inverter and
D
TSU666-HW and YDS60-80 power meters.
SUN2000-(8KTL
-20KTL)-M2
User Manual
5 Electrical Connections
Issue 11 (2023-02-07)
Copyright © Huawei T
echnologies Co., Ltd.
60
67
69
Table of Contents
About This Document
3
Contents
6
1 Safety Information
9
1.1 Personal Safety
10
1.2 Electrical Safety
12
1.3 Environment Requirements
14
1.4 Mechanical Safety
16
2 Overview
21
2.1 Product Introduction
21
2.2 Appearance
25
2.3 Label Description
27
2.3.1 Enclosure Labels
27
2.3.2 Product Nameplate
28
2.4 Working Principles
29
2.4.1 Circuit Diagram
29
2.4.2 Working Modes
29
3 Storage
31
4 Installation
32
4.1 Checking Before Installation
32
4.2 Tools
33
4.3 Determining the Installation Position
34
4.3.1 Environment Requirements
34
4.3.2 Space Requirements
35
4.4 Moving an Inverter
38
4.5 Installing the Mounting Bracket
38
4.5.1 Wall-mounted Installation
39
4.5.2 Support-mounted Installation
42
5 Electrical Connections
45
5.1 Precautions
45
5.2 Preparing for Installation
46
5.3 Connecting the PE cable
50
5.4 Connecting the AC Output Power Cable
52
5.5 Connecting the DC input power cable
56
5.6 (Optional) Installing the Smart Dongle
60
5.7 (Optional) Installing the Signal Cable
61
5.7.1 Connecting the RS485 Communications Cable (Inverter Cascading)
64
5.7.2 Connecting the RS485 Communications Cable (Smart Power Sensor)
65
5.7.3 Connecting the Rapid shutdown signal cable
72
5.7.4 Connecting the Power Grid Scheduling Signal Cable
73
5.7.5 Connecting the NS Protection Signal Cable
75
6 Commissioning
78
6.1 Check Before Power-On
78
6.2 Powering On the System
79
7 Man-Machine Interaction
85
7.1 App Commissioning
85
7.1.1 Downloading the FusionSolar App
85
7.1.2 (Optional) Registering an Installer Account
86
7.1.3 Creating a PV Plant and a User
87
7.1.4 (Optional) Setting the Physical Layout of the Smart PV Optimizers
87
7.1.5 Detecting Optimizer Disconnection
89
7.2 Parameters Settings
90
7.2.1 Energy Control
90
7.2.1.1 Grid-tied Point Control
90
7.2.1.2 Apparent Power Control on the Inverter Output Side
95
7.2.2 AFCI
96
7.2.3 IPS Check (for Italy CEI0-21 Grid Code Only)
97
7.3 SmartLogger Networking Scenario
99
8 Maintenance
100
8.1 System Power-Off
100
8.2 Routine Maintenance
101
8.3 Troubleshooting
102
9 Handling the Inverter
114
9.1 Removing a SUN2000
114
9.2 Packing the SUN2000
114
9.3 Disposing of the SUN2000
114
10 Technical Data
115
10.1 SUN2000 Technical Specifications
115
10.2 Optimizer Technical Specifications
120
A Grid Codes
122
B Device Commissioning
127
C Resetting Password
129
D Rapid Shutdown
132
E Locating Insulation Resistance Faults
133
F Acronyms and Abbreviations
136
