SUN2000-(12KTL, 15KTL, 17KTL, 20KTL)-M0
User Manual
Copyright © Huawei Technologies Co., Ltd.
Figure 5-8 Four-core cable (L1, L2, L3, and N)
Figure 5-9 Five-core cable (L1, L2, L3, N, and PE)
The cable colors shown in the figures are for reference only. Select an appropriate cable according to
local standards.

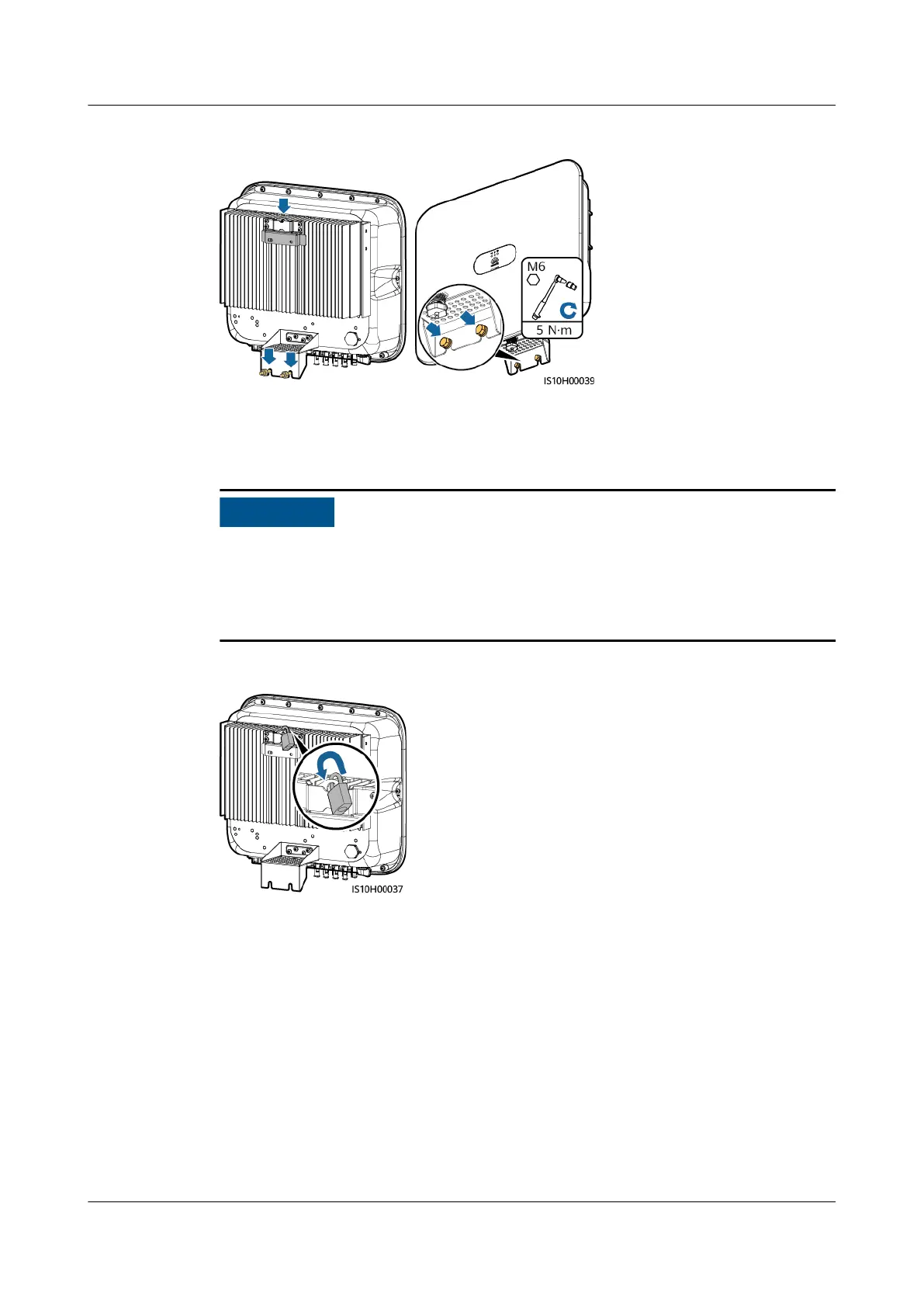

Step 2 Connect the AC connector to the AC output port.
Ensure that the AC connector is connected securely.
