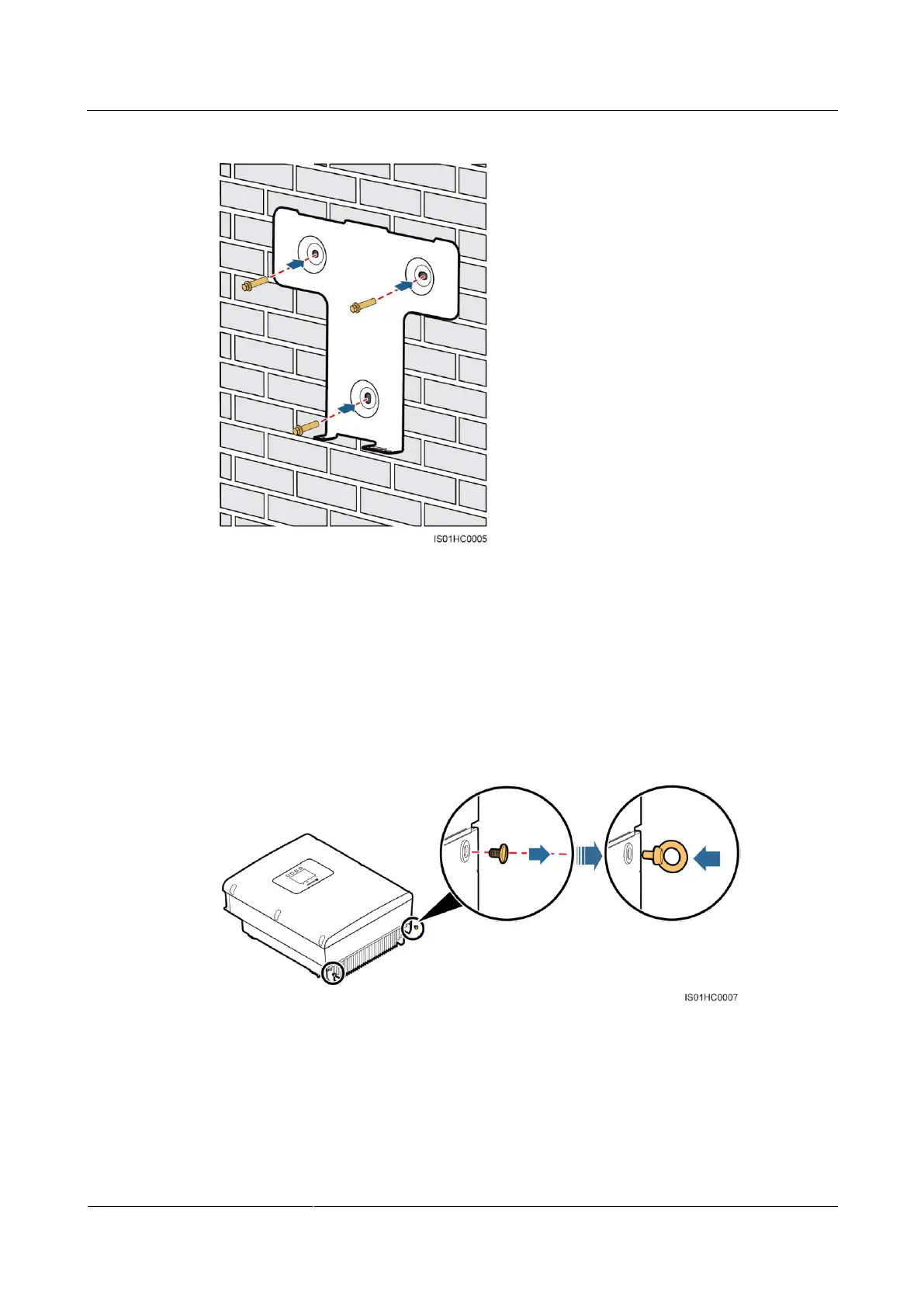

Figure 4-19 Securing a rear panel
Step 4 If the rear panel has been installed low enough for the SUN2000 to be mounted, go to Step 9
after performing Step 7.
Step 5 If the rear panel has been installed too high for the SUN2000 to be mounted, perform Step 6
to Step 10.
Step 6 Remove the two rubber screws from the top of the SUN2000 using a flat-head screwdriver
and install two M10 lifting eyes, as shown in Figure 4-20.
Figure 4-20 Installing lifting eyes
Step 7 Ensure that two people lift the SUN2000 and turn it upright. Lift the SUN2000 by grasping
the handle at the bottom of the SUN2000 with one hand and the handle at the top with the
other, as shown in Figure 4-21.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
