2.2 Component Description
Appearance

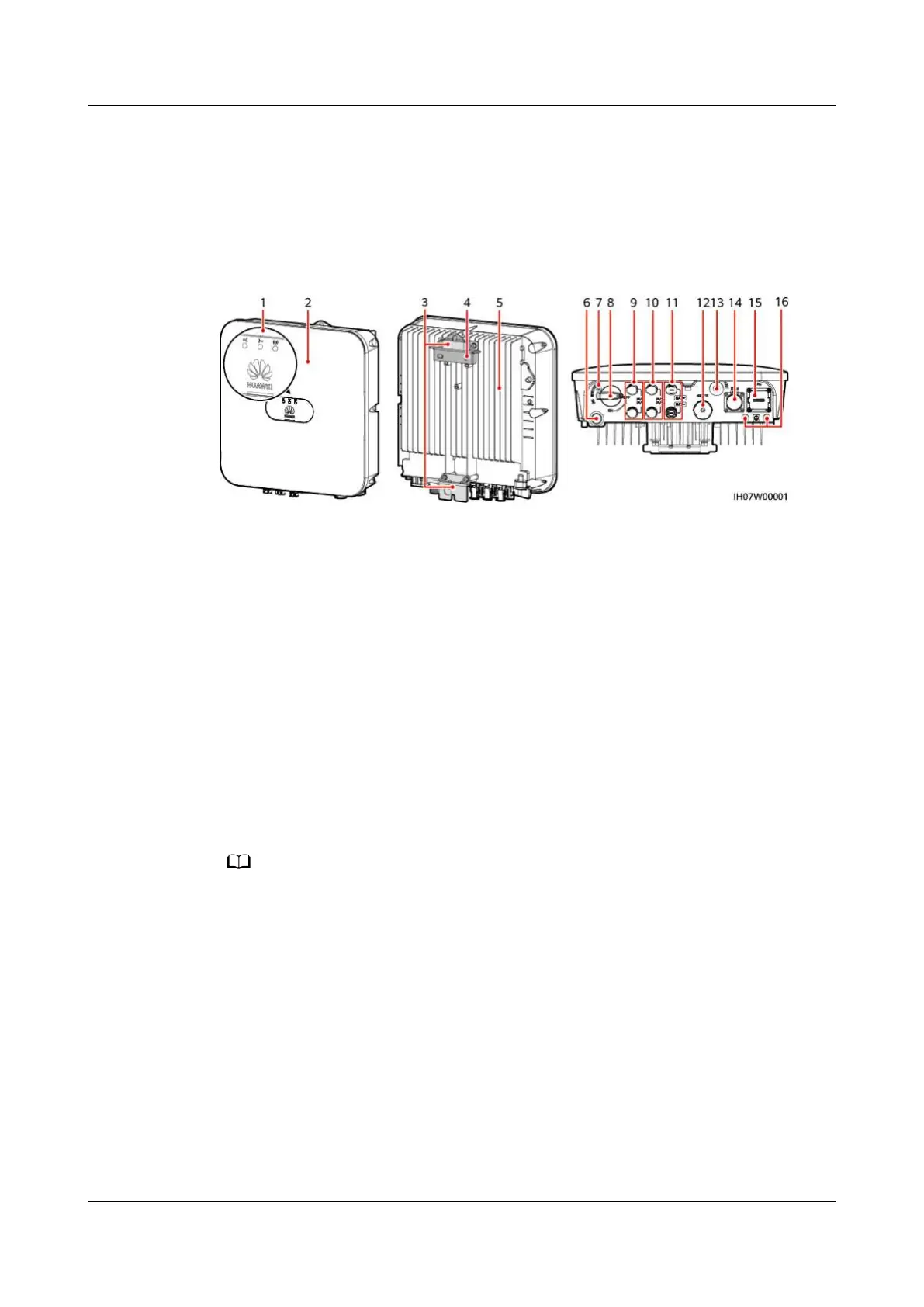

Figure 2-5 Appearance
(1) LED indicators (2) Front panel
(3) Hanging kit (4) Mounting bracket
(5) Heat sink (6) Ventilation valve
(7) DC switch locking screw
hole
a
(8) DC switch
b
(DC SWITCH)
(9) DC input terminals (PV1+/PV1–) (10) DC input terminals (PV2+/PV2–)
(11) Battery terminals (BAT+/BAT–) (12) Smart Dongle port (4G/FE)
(13) Antenna port (ANT) (14) Communications port (COM)
(15) AC output port (AC) (16) Ground point
● Note a: The DC switch locking screw is used to lock the DC switch to prevent accidental
startup. It is delivered with the SUN2000.
● Note b: DC input terminals PV1 and PV2 are controlled by the DC switch.
SUN2000-(2KTL-6KTL)-L1
User Manual 2 Product Introduction
Issue 04 (2021-04-01) Copyright © Huawei Technologies Co., Ltd. 11
