5.1 Preparing Cables

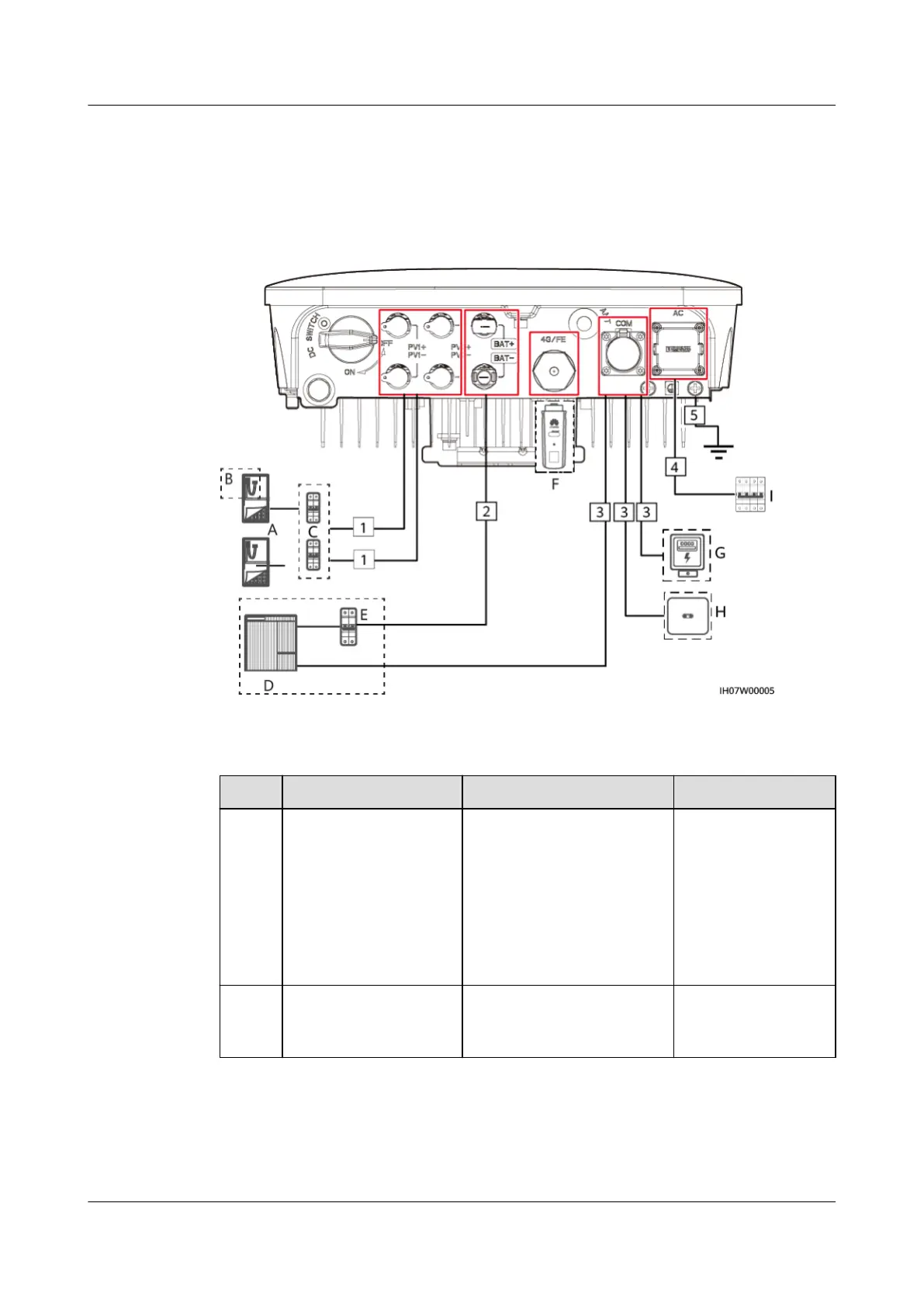

Figure 5-1 SUN2000 cable connections (dashed boxes indicate optional
conguration)
Table 5-1 Component description
No. Component Description Source
A PV string ● A PV string is
composed of the PV
modules connected in
series and works with
an optimizer.
● The SUN2000 supports
the input from two PV
strings.
Prepared by the
customer
B Smart PV optimizer The SUN2000-450W-P
smart PV optimizer is
supported.
Purchased from
Huawei
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 04 (2021-04-01) Copyright © Huawei Technologies Co., Ltd. 31
