● WLAN-FE Smart Dongle (FE Communication)
You are advised to use a CAT 5E outdoor shielded network cable (outer
diameter < 9 mm; internal resistance ≤ 1.5 ohms/10 m) and shielded RJ45
connectors.

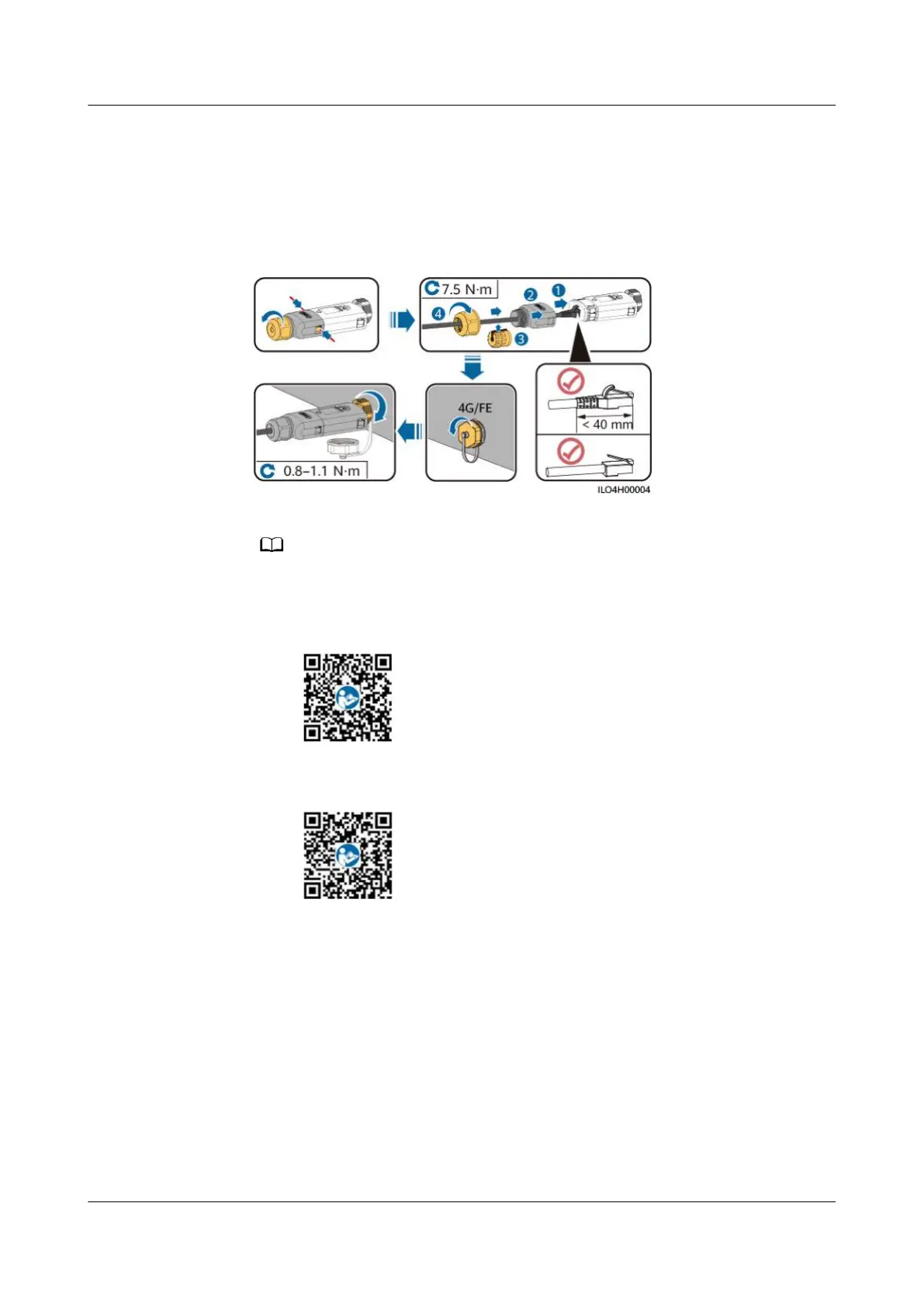

Figure 5-5 Installing a WLAN-FE Smart Dongle (FE communication)
There are two types of Smart Dongle:
● For details about how to use the WLAN-FE Smart Dongle SDongleA-05, see the
SDongleA-05 Quick Guide (WLAN-FE)
. You can also scan the QR code to obtain
the document.
● For details about how to use the 4G Smart Dongle SDongleA-03, see the
SDongleA-03 Quick Guide (4G)
. You can also scan the QR code to obtain the
document.
The quick guide is delivered with the Smart Dongle.
5.4 Installing a WLAN Antenna
Procedure
Step 1 Remove the watertight cap from the ANT port.
Step 2 Install the washer to the ANT port on the chassis.
Step 3 Install the WLAN antenna.
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 04 (2021-04-01) Copyright © Huawei Technologies Co., Ltd. 39
