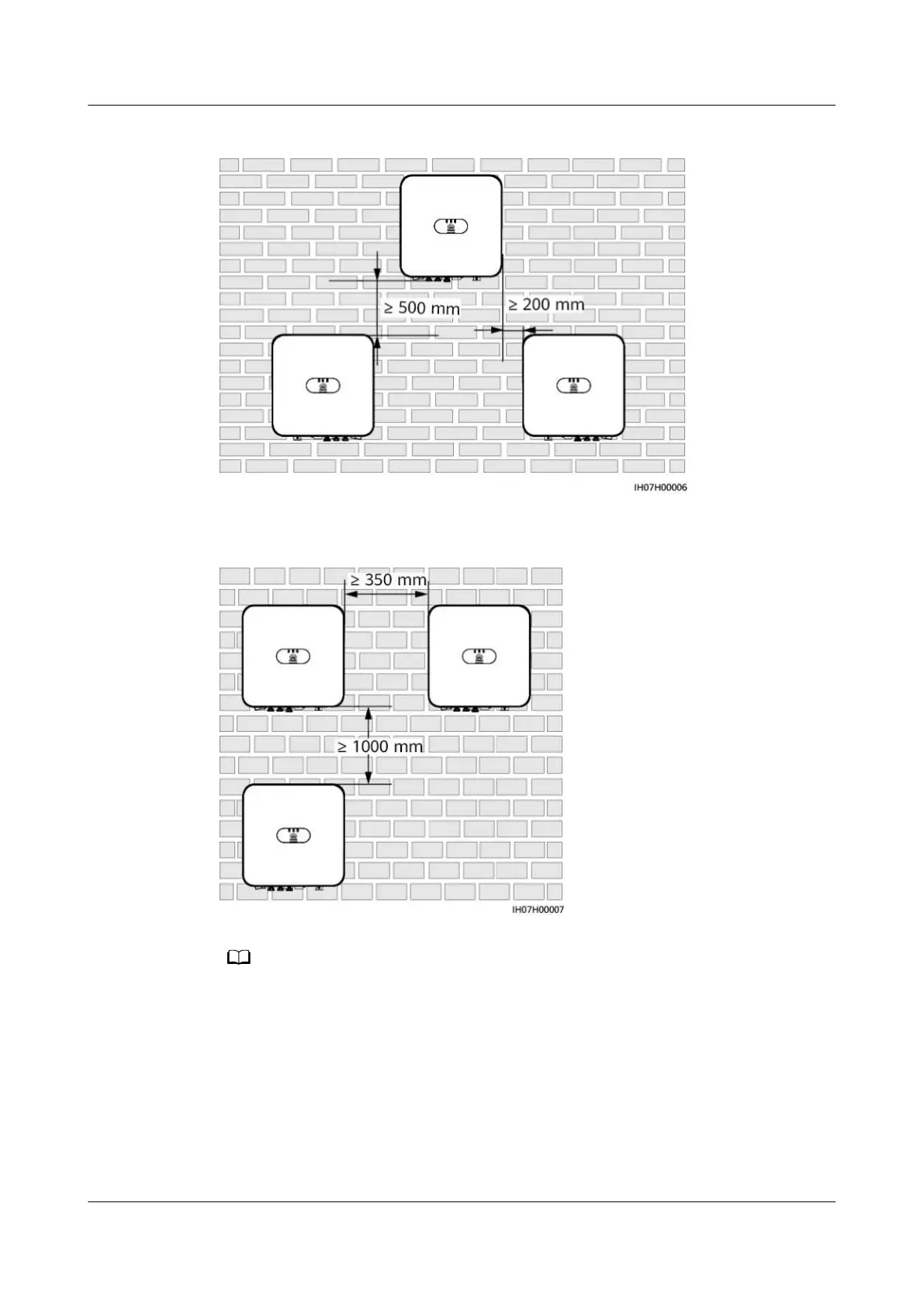

Figure 4-4 Triangle installation mode (recommended)
Figure 4-5 Stacked installation mode (not recommended)
The installation gures are for reference only and are irrelevant to the SUN2000 cascading
scenario.
4.4 Moving a SUN2000
Procedure
Step 1 Hold the handles on both sides of the SUN2000, lift the SUN2000 from the
packing case, and transport it to the installation position.
SUN2000-(2KTL-6KTL)-L1
User Manual 4 System Installation
Issue 04 (2021-04-01) Copyright © Huawei Technologies Co., Ltd. 23
