PSP8620311
Rev. E
11
4 — Installation
Installing the Optional Non-
Reclose Hookstick Adapter
The Non-Reclose (NR) Hookstick
Adapter Kit is an adapter that can
be attached to the NR handle on the
Versa-Tech Recloser to allow for easier
operation with a hookstick. The addition
of the adapter is not mandatory. The
same gentle pull action, as used with
the NR handle, is utilized for operation.

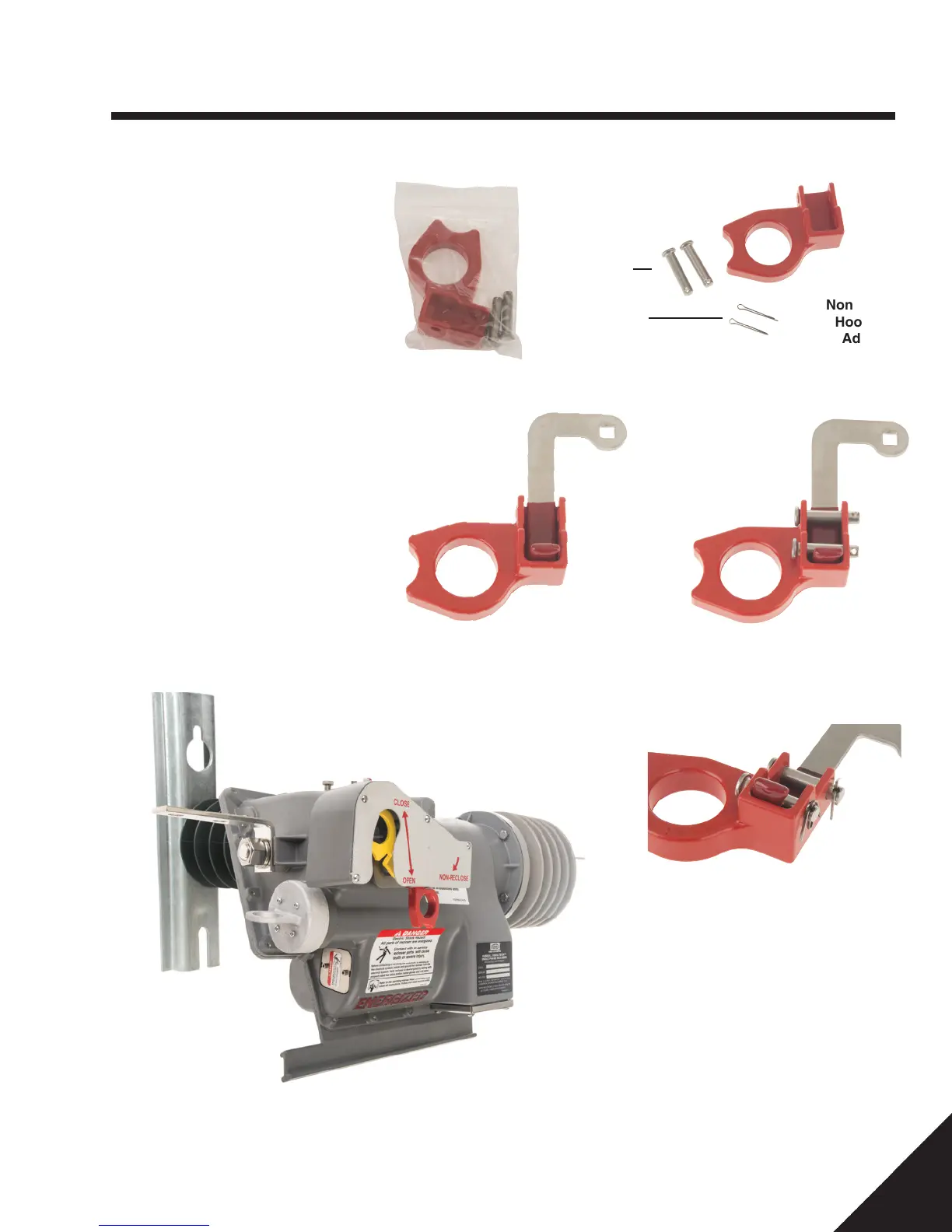

Figure 4-1 shows the NR Hookstick
Adapter Kit as packaged. Figure 4-2
shows the components.
Figure 4-1
Step 1: Pull the Non Reclose (NR)
handle to the down position.
Step 2: Take the NR Hookstick Adapter
and place it so that the NR handle is
positioned as shown in Figure 4-3.
Step 3: Insert the clevis pins through
the holes of the NR Hookstick Adapter as
shown in Figure 4-4.
Step 4: Place the cotter pins though the
holes on the clevis pins. Fold the legs of
each cotter pin as shown in Figure 4-5.
NOTE: The Non Reclose Hookstick
Adapter operation has not been tested
under icing conditions.
Figure 4-2
Clevis Pins
Cotter Pins
Non Reclose
Hookstick
Adapter
Figure 4-3 Figure 4-4
Figure 4-5
