Hubbell VERSA-TECH LT - Table 1-1 Duty Cycle

PSP8620311
Rev. E
6
1 — Overview

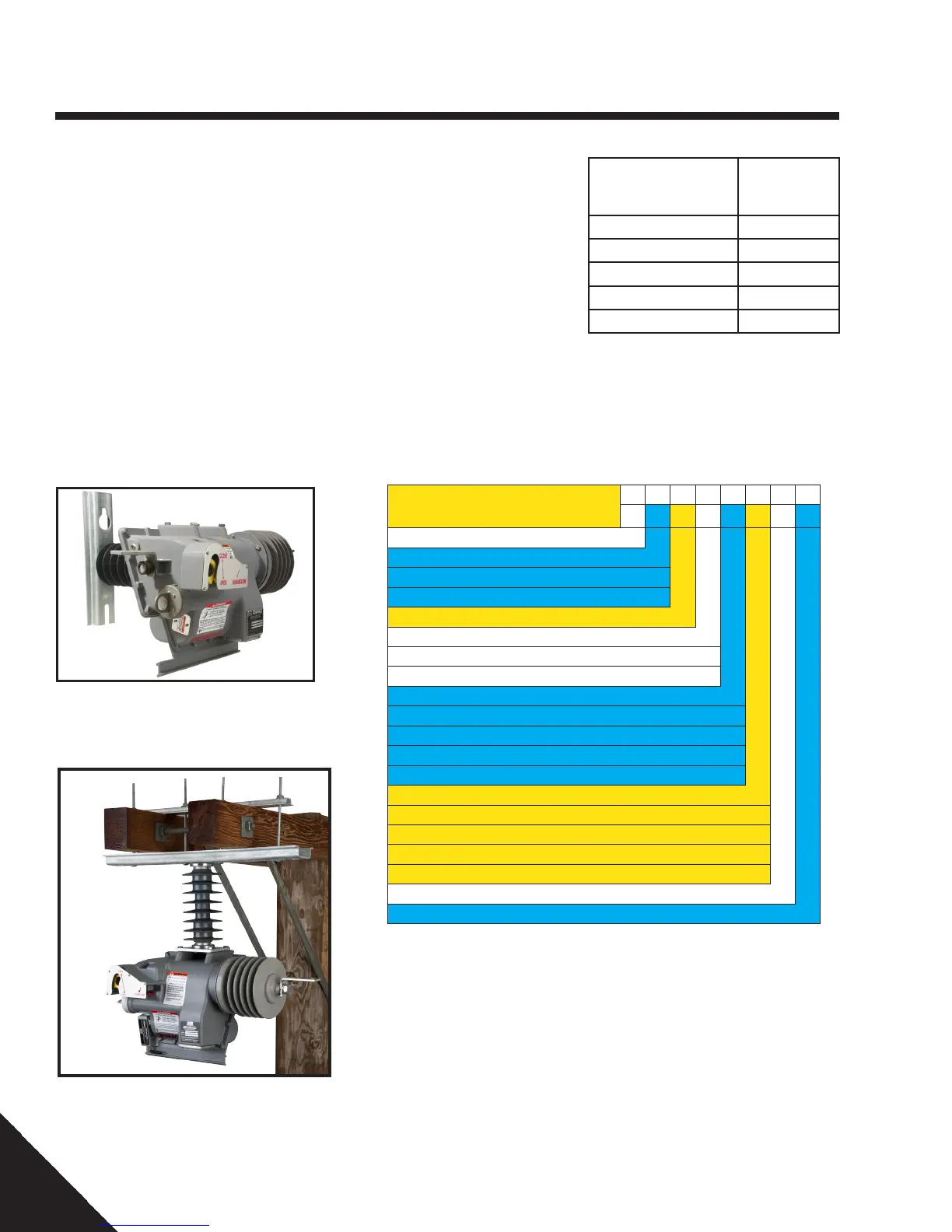

Figure 1-1 Pole/Structure Face
Mounting
Figure 1-2 Crossarm Mounting
Installation Alternatives
The number in Position 7 is the number of pole plaques in addition to the one
included with each recloser (Ex: 3 is 3 more for a total of 4)
NOTE: For more information on the Versa-Tech II Single-Phase Recloser,
please refer to Catalog 10EE on the Hubbell Power Systems website.
Percent of 8kA
Maximum Interrupting
Rating (%)
Number
of
Operations
15-20 10000
25 6500
50 1800
75 700
100 400
Duty Cycle
Table 1-1 Duty Cycle
Ratings and Specications
Rated Maximum Voltage .....................................29.3kV
Rated Continuous Current...................................400A
Fault Make Capacity...............................................8kA
Fault Break Capacity...............................................8kA
Mechanical Operations......................................30,000
3 Second Withstand Current..................................8kA
Transformer Magnetizing Current.........................14A
Cable Charging Current.........................................25A
Line Charging Current..............................................5A
Lightning Impulse Withstand.............................125kV
60Hz, 1-Minute Withstand Voltage.....................60kV
Maximum Terminal Pad Load kg (pounds).......14 (30)
Operating Temperature.......................... -40°C to 60°C
Weight kg (pounds)...........................................21 (46)
29.3kV
100A
4kA
4kA
10,000
4kA
14A
25A
5A
125kV
60kV
14 (30)
-40°C to 60°C
21 (46)
VTI VTLT
To build your Versa-Tech Recloser, add features
from the matrix to this base number
Catalog No. PSC86
1 2 3 4 5 6 7 8
2 X 1 X X X X 1
Voltage Rating 27kV 2
Versa-Tech I with FW 3.xx 1
Versa-Tech LT 4
Versa-Tech I with FW 4.xx 5
Minimum Fault Trip 30A 1
Pole/Structure Mount 1
Crossarm Mount 2
Pole with Ground Connector 3
No Connectors 1
PG (Parallel Groove) Clamps (2 total) 2
Captive Hardware 3
Single Tap Lug 4
Double Tap Lug 5
No Radio 1
Standard Performance Remote Digi Radio 2
High Performance SiFLEX Remote Radio 3
WiFi Module 4
XBee Radio 5
Pole Plaques (Additional)
Reserved 1
Catalog Numbering System
Position
