Events and Data Log
Sequence Coordination Events Logs

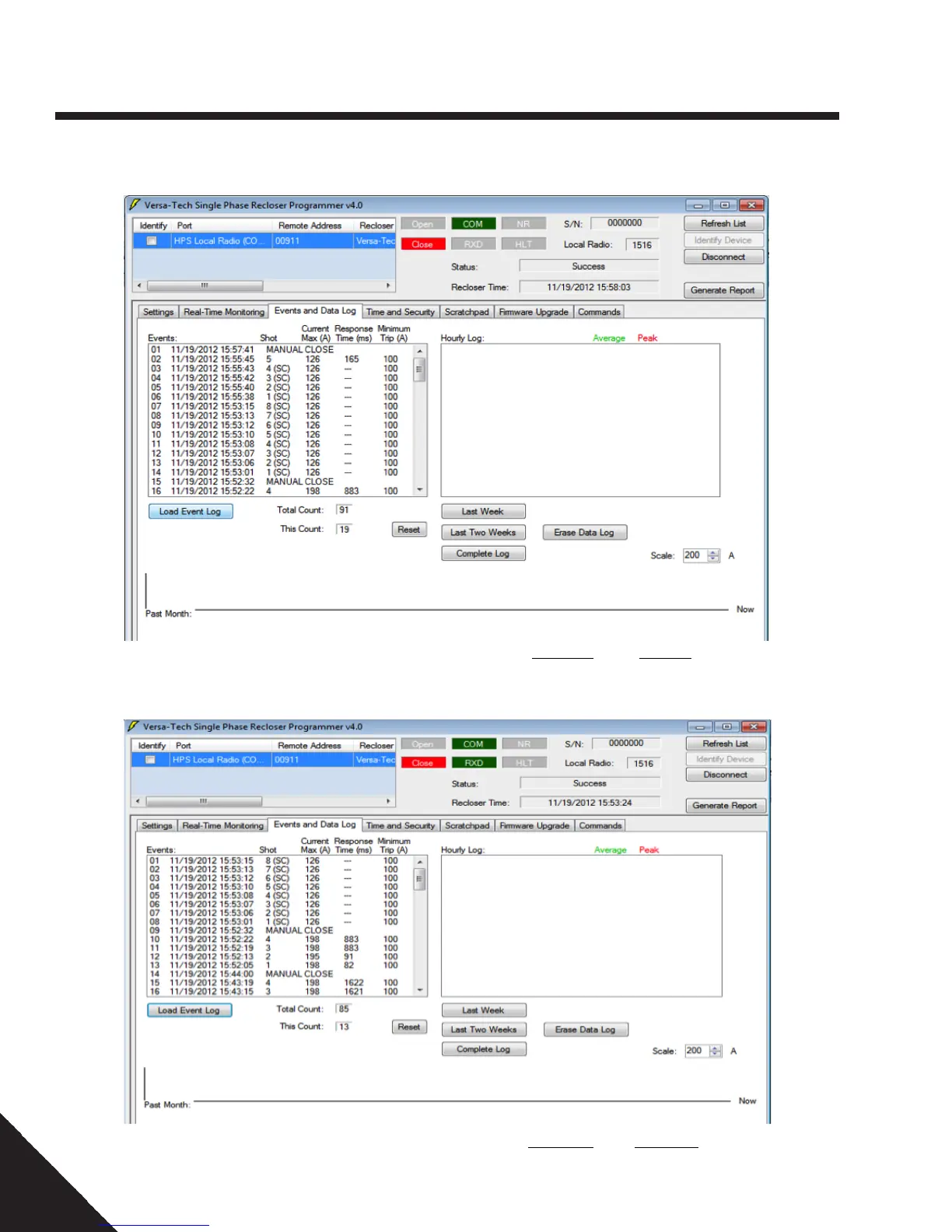

Figure 6-5: Sequence Coordination enabled on four operations and the SC Lockout option Checked.
NOTE: SC Lockout is only available on Versa-Tech I Reclosers with FW 4.xx.
Refer to Figure 6-6 for representation of Sequence Coordination logs for Versa-Tech I Reclosers with
FW 3.xx and Versa-Tech LT Reclosers.
Figure 6-6: Sequence Coordination enabled on four operations and the SC Lockout option Unchecked
(Versa-Tech I Reclosers with FW 4.xx). This would also be a representation for Versa-Tech I
Reclosers with FW 3.xx and Versa-Tech LT Reclosers which do not have the option for SC Lockout.
