6 — Control Programming
Events and Data Log
Viewing Diagnostic Events and Data Log

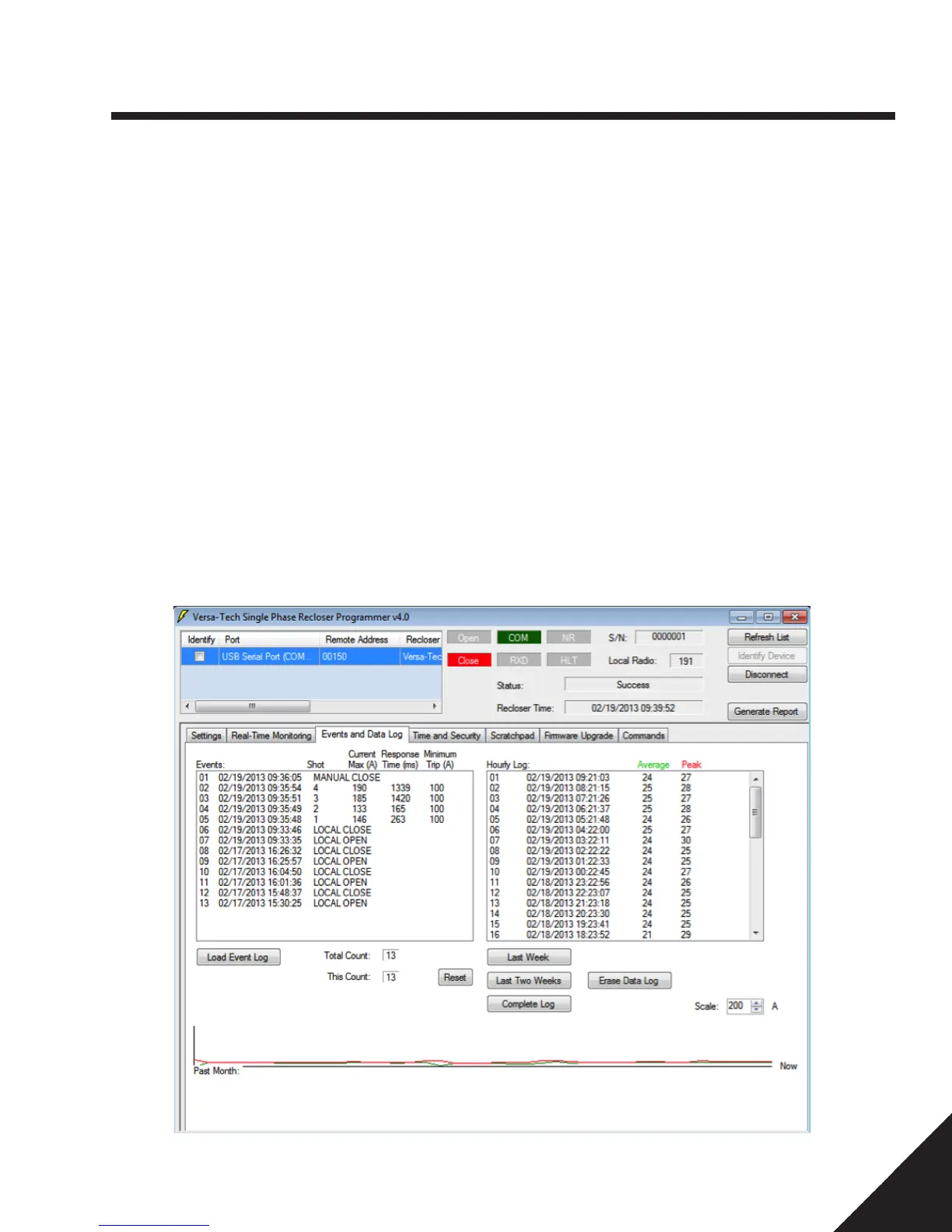

The recloser also has some built in diagnostic features, which can be read by selecting the Events and Data Log Tab as shown in Figure
6-4. This field will display the recloser operations count, the energy of interrupted faults, and the hourly log data field. Separately, the
resettable operations counter can be reset and the data log erased by clicking the appropriate buttons. In addition to the fault history
previously available, there is now a viewing window for an hourly log (Load Profile). Due to required upload times options are given for the
last week, last 2 weeks or entire log (45 DAYS) to be retrieved. This log will be included in the full report generation only after it has been
separately downloaded. The Generate Full Recloser Report will not include the hourly log unless it has been previously downloaded.
Sequence coordination events will be registered and marked as such in the events log.
Figure 6-4
Scale is the amount of Amperes set as a reference for the graphical display of the hourly log.The graph would populate only after the
hourly log has been downloaded.
Total Count: The total count reflects the total number of times the bottle has been electronically opened on a fault operation. This is driven
by the microprocessor control.
This Count: This Count is the number of times the bottle has electronically opened from the last Reset. This Count can be Reset by using
the Reset button as in Figure 6-4.
Note: The external mechanical counter on the Versa Tech increments whenever the bottle has been opened either electronically or
manually by using the Manual Handle . So it is likely that the counts on the electronic and the mechanical counter differ when the Manual
Handle has been used to open the bottle.
