PSP8620311
Rev. E
14
4 — Installation
Pole/Structure Surface
Mounting
1. Refer to Figure 4-5 for assembly detail
and Table 2-1 for torque specifications.
• Assemble the insulator (1) to the
rectangular steel adapter plate (2)
using two 3/8" X 1" bolts and split lock
washers (3) as shown.
• Assemble the mounting bracket (4) to
the opposite end of the insulator (1)
using two 3/8" X 1" bolts, flat washers
and split lock washers (5) as shown.
• Attach the insulator/bracket/adapter
plate to the four threaded bosses on
the flat side of the body of the recloser
as shown. Use four ss 3/8" X 1-1/4"
bolts, flat washers and split lock
washers (6).
NOTE: Do not attach to the 4 threaded
holes on the top of the body. These
attachment holes are used only on the
crossarm mounting arrangement.
2. Determine the mounting location on the
pole. The pole mount uses 2 bolts, 5/8"
diameter on 12" centers.
3. Drill the appropriate holes through the
pole.
4. Install the bolt in the top hole.
NOTE: The head of the bolt must be on
the side of the pole where the recloser
will be mounted. Install the nut and
washers on the back side. Leave
approximately 2" of bolt exposed under
the head for the keyhole slot in the
mounting bracket.
5. Using a nylon sling, sling the unit as
shown in Figure 4-7.
CAUTION: Do not use a metal sling or
chain as this may damage the unit.
6. Using suitable means, lift the unit into
position.
CAUTION: Do not allow recloser to
impact or collide with pole or other
objects as it is lifted and installed.
7. Ensure the top bolt engages the small
portion of the “keyhole” slot.
8. Install the bottom bolt/washers and nut.
9. Tighten the hardware per Table 2-1.

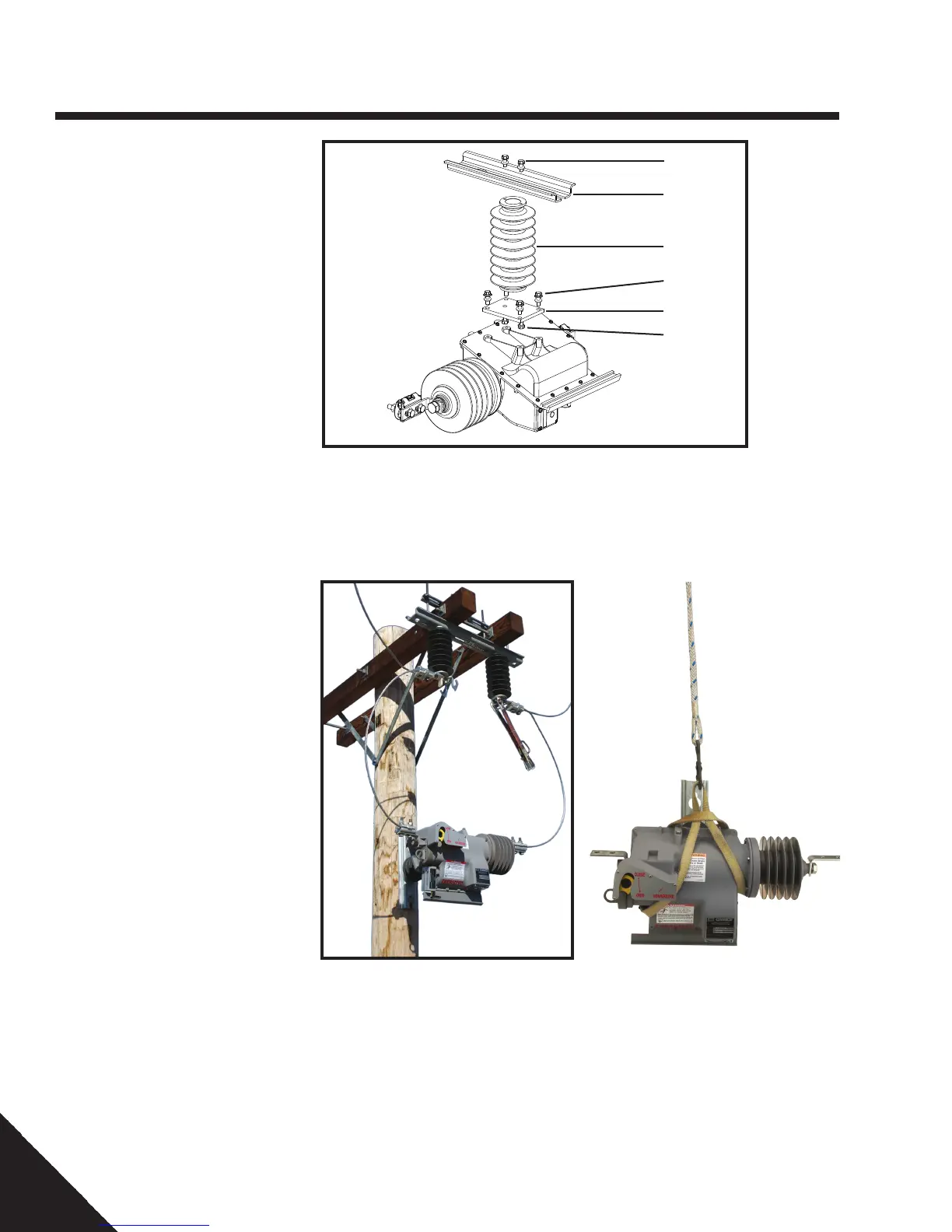

Figure 4-11 Pole/Structure
Mount Installation
Figure 4-12 Recloser in Sling
Figure 4-10 Pole/Structure Mount Assembly Detail
1
2
6
4
5
3
