Electronic Overspeed Switch EGS 40
38
EGS40_MANUAL-en_R6(2018-11-07)ID74528.docx

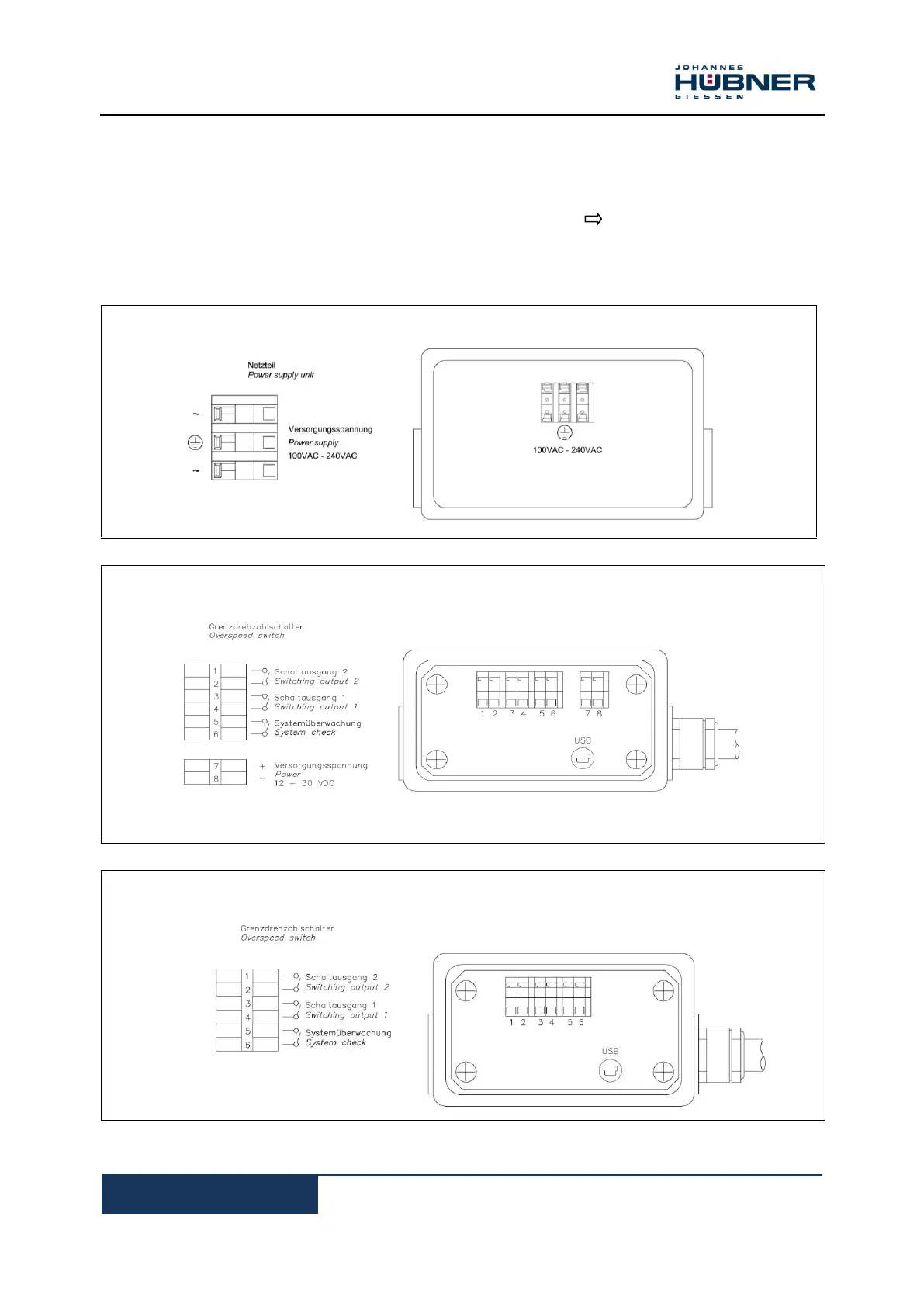

13 Connection diagrams
The connection boxes of the overspeed switches are equipped with cable glands for cable 5-14 mm in
diameter. Suitable cables are important to maintain the protection class.
Comply with the information provided in the connecting diagrams ( Chapter 13.1 Appendix and in
the terminal box cover).
13.1 Connections
PN 100 400a
Fig. 13-1
PN 132 400
Fig. 13-2
PN 132 - 420
Fig. 13-3
