32. "Switch test": Switch test programme dialog box to test the switch.
33. "Monitoring": Monitoring programme dialog box to monitor the actual speed.
34. Login info: EGS40 Pro, User, PC ID No., Date. PC/ laptop information window including
software version
NOTE
Displayed min. - max. input limits. Values above or below these values not permissible.
Below the input fields 15, 16, 17 and 21.

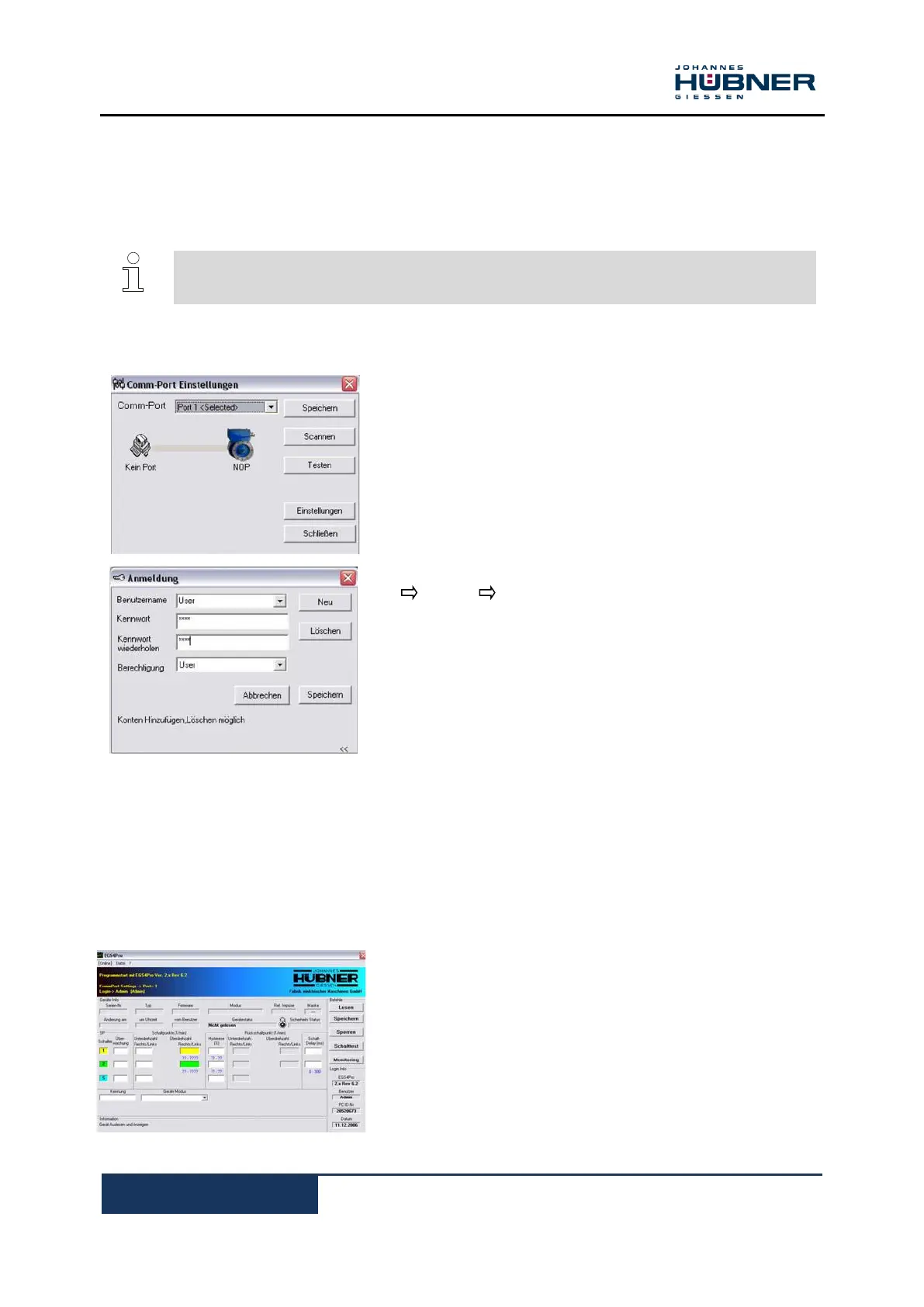

7.4 Setting up the software
In the main overview select menu item file settings select COM-
Port.
The Com-Port settings dialog will open. Select the COM-Port
used and click on Save.
In the main toolbar select menu item:
File Settings User, select the Accounts dialog.
Set up users. To do this:
Assign user name and password
Set up the authorization:
User: Only permits read out of the data of the EGS
®
40.
Master: Permits execution of all functions.
Admin: Permits set up of users as well as execution of
"Save" the settings and exit the dialog.
7.5 Preparing the device
Preparations on the device.
1. Open the terminal box to access the serial interface.
2. Connect the computer via the supplied USB connection cable.
7.6 Reading out and saving data
NOTE!
The device must be at a standstill.
1. Reading data out of the device. To do these activate the
"Read" button.
2. Specify switch speeds, direction of rotation detection,
switching performance by entries in the appropriate fields.
The numbers below the fields indicate the permissible
setting range.
3. Transfer the entered values into the device’s read-only
memory. To do this activate the "Save" button.
After this step the device will work with the updated values.
