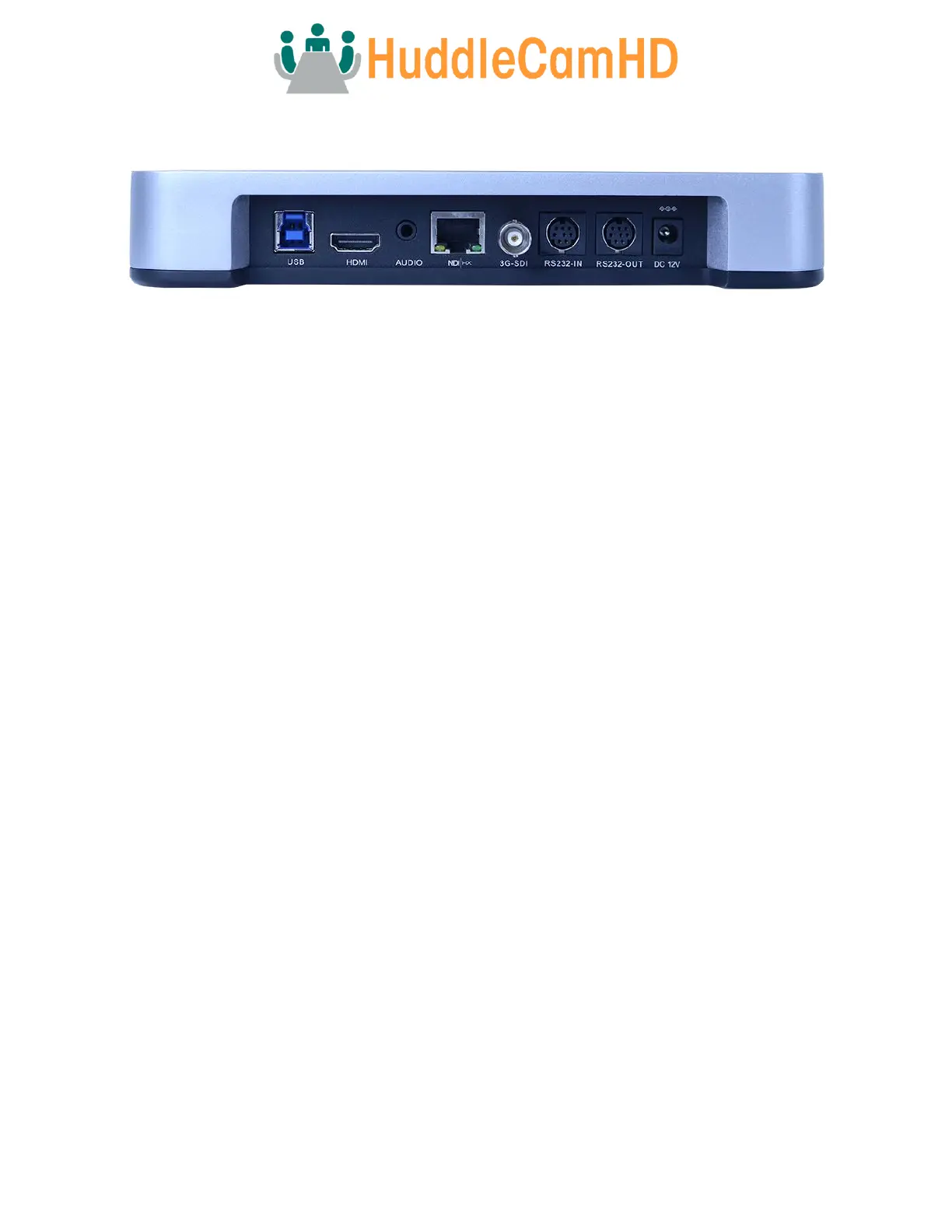

Connection Guide
1. USB 2.0 USB 2.0 type B female connection
2. HDMI HDMI ver. 1.4 connection
3. Line In 3.5mm audio connection
4. Network RJ45 port for NDI
®
|HX & network streaming / control
5. SDI 3G-SDI connection
6. RS-232 In 8-pin mini din connection for joystick controller
7. RS-232 Out 8-pin mini din connection for daisy chaining
8. DC12V DC 12V power connection
