39
Side Beam View
(with optional-purchase QuadraBeam PLUS™ transducer)
Side Beam View is only available if you have connected an optional-purchase
QuadraBeam™ transducer accessory and when Transducer Select is set to
QuadraBeam (see Sonar Menu Tab: Transducer Select). The QuadraBeam
PLUS™ transducer requires a separate purchase. This view shows sonar
information from both the left and right 455 kHz beams and the 200 kHz down-
looking beam in one view. You can customize the way the sonar data is
displayed in the Side Beam View to suit your personal preferences. Depending
on the layout selected from the Quad Layout Sonar X-Press™ menu (only
available on the Sonar X-Press™ menu when in Side Beam View), the display
will represent the same sonar data in one of the following three layouts:
Default, Classic, and Slanted.
Default layout: The top portion of the display presents a historical log of sonar
returns from the 200 kHz down-looking sonar beam. New information in the
down beam panel scrolls from right to left. The bottom portion of the display
presents a historical log of sonar returns from the 455 kHz right- and left-
looking sonar beams. New information in the side beam panels scrolls from the
center out.

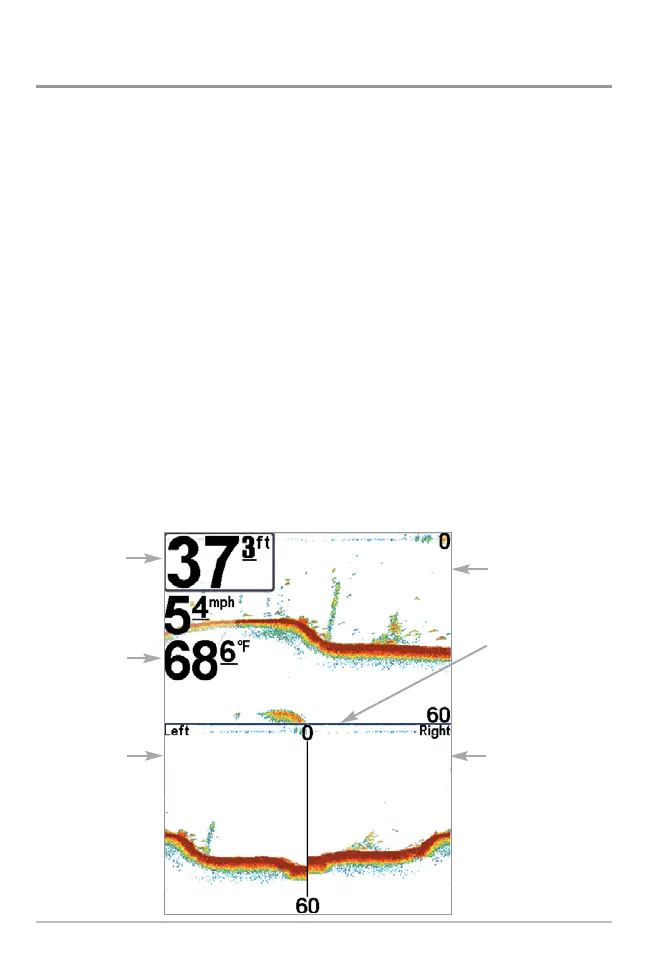

Side Beam View, Default Layout
Depth
Temperature
Left Side
455 kHz
Sonar History
Window
200 kHz Sonar
History Window
Water Surface Line
for 455 kHz Sonar
History Windows
Right Side 455 kHz
Sonar History
Window
