169
Routes
Open the Go To Menu
Select a Waypoint
on a Route
cursor
digital
readouts

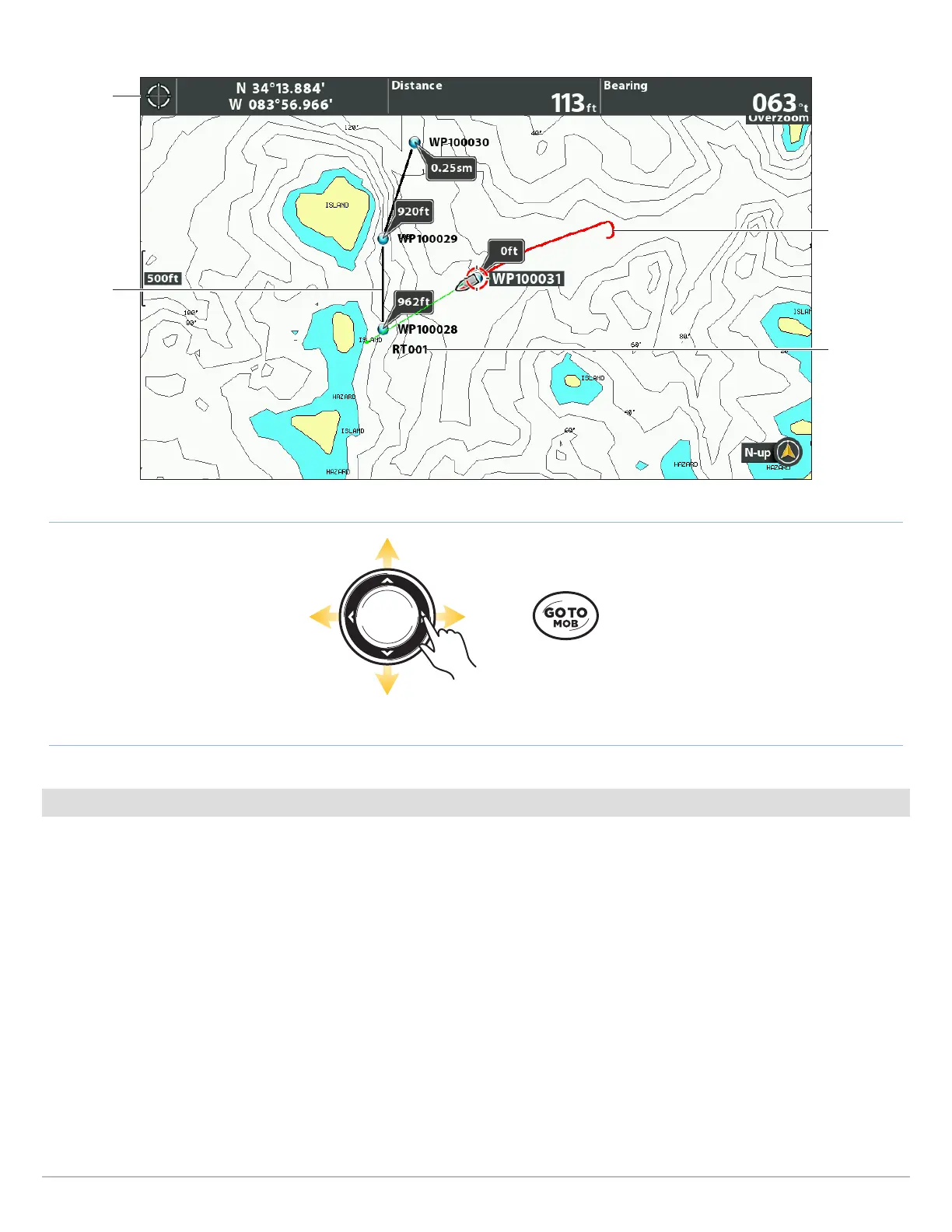

Selecting a Saved Route on the Chart View
current
track
selected
route name
selected
route
(red)
Navigate to a Saved Position
If you press the GOTO key, you can choose to start navigation from a list of saved waypoints and routes.
1. Press the GOTO key.
2. Select Nav Data. Press the RIGHT Cursor key.
3. Use the Cursor Control key to select a saved waypoint or route.
4. Press the RIGHT Cursor key to start navigation.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Humminbird HELIX CHIRP GPS G2N and is the answer not in the manual?

Humminbird HELIX CHIRP GPS G2N Specifications

General IconGeneral
Display Size7 inches
Waypoints2, 500
Routes50
Track Points50, 000
NetworkingEthernet
Display TypeColor TFT
Down ImagingYes
Side ImagingYes
ChartplottingYes
LakeMaster CompatibilityYes
AutoChart LiveYes
NMEA0183Yes
NMEA2000Yes
Power Output500 Watts (RMS)
Storage Temperature-20°C to 70°C
Water RatingIPX7
Display Resolution800H x 480V
SonarCHIRP Digital Sonar
GPSInternal
Display Pixel Matrix800H x 480V
Card SlotsmicroSD
Max Depth1500 ft
Frequency83/200 kHz & 455/800 kHz
