AutoChart Live

C  B H D S

The Bottom Layer is displayed on top of the AutoChart Live map and can be displayed as bottom hardness or vegetation. Bottom

Hardness shows strong sonar returns resulting from compacted sediment, rocks, fallen trees, etc.

Show/Hide Bottom Hardness

Show Bottom Hardness

1. From the AutoChart menu, select Bottom Layer.

Select

Visible

(LakeMaster) or press the CHECK/INFO key or the RIGHT Cursor key to add a check mark (CoastMaster)

3. Select Bottom Type.

4. Select Bottom Hardness.

AutoChart

Live Map

layer

hardness scale

(AutoChart Color Bar)

bottom

layer set

to Visible

bottom type

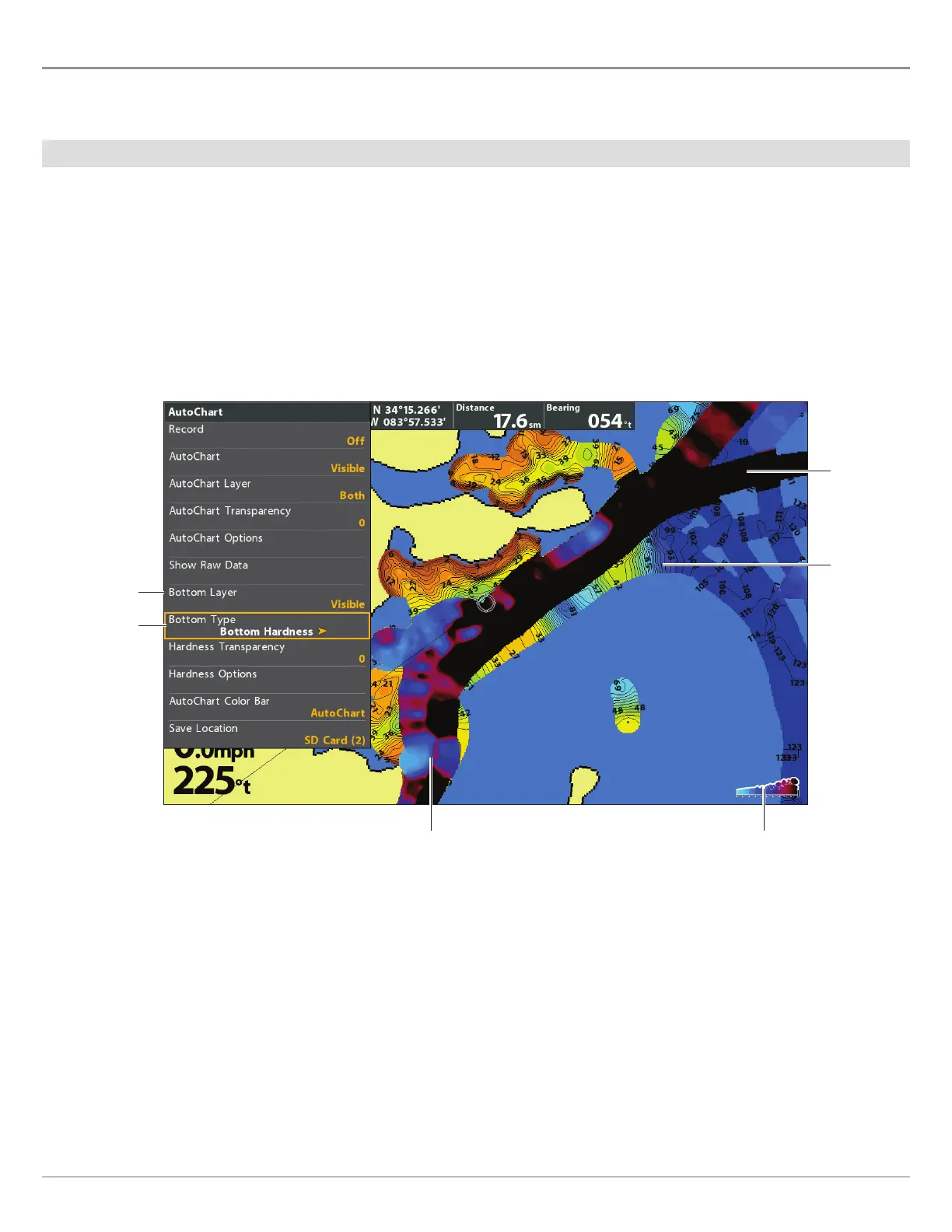

Displaying the Bottom Hardness Layer (Map Source: Humminbird LakeMaster)

bottom

hardness

layer

bottom

hardness layer

Hide Bottom Hardness

1. From the AutoChart menu, select Bottom Layer.

2. Select Hidden

(LakeMaster) or press the CHECK/INFO key or the RIGHT Cursor key to remove the check mark (CoastMaster)
