The HELIX control head has many options to display data on-screen, and the data can be displayed in a variety of ways. There are
also several ways to quickly display a view on-screen. To see the list of views available on your control head, see Show your Favorite
Views.
Display a View
The available views are determined by the control head model, installed transducer, and connected accessories.

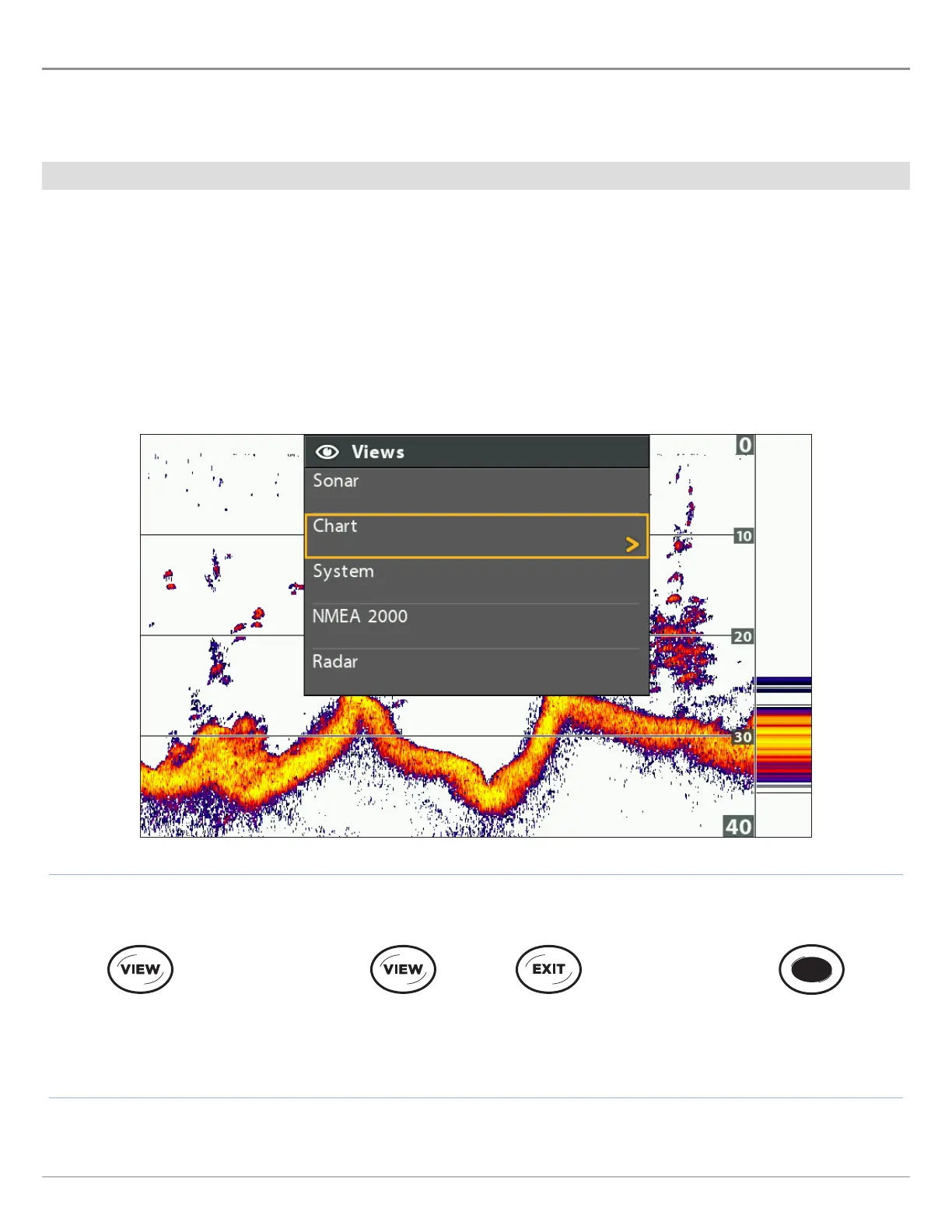

Display a View from the Views X-Press Menu
1. Press and hold the VIEW key.
2. Select a view category. Press the RIGHT Cursor key.
3. Select a view. Press the RIGHT Cursor key.
Selecting a View to Display on the Screen
Forward: Press to go
to the Next View
Back: Press to go to
the Previous View
Press to Display
a Saved View
Press and Hold to Open
the Views X-Press Menu
OR OR

Humminbird HELIX CHIRP GPS G2N Specifications

General

Display Size	7 inches
Waypoints	2, 500
Routes	50
Track Points	50, 000
Networking	Ethernet
Display Type	Color TFT
Down Imaging	Yes
Side Imaging	Yes
Chartplotting	Yes
LakeMaster Compatibility	Yes
AutoChart Live	Yes
NMEA0183	Yes
NMEA2000	Yes
Power Output	500 Watts (RMS)
Storage Temperature	-20°C to 70°C
Water Rating	IPX7
Display Resolution	800H x 480V
Sonar	CHIRP Digital Sonar
GPS	Internal
Display Pixel Matrix	800H x 480V
Card Slots	microSD
Max Depth	1500 ft
Frequency	83/200 kHz & 455/800 kHz
