NMEA 2000 Setup
U NMEA 2000 I V
The NMEA 2000 Instrument View presents a full screen view of gauges and data boxes. It automatically displays a default data set,
or you can select the data readouts for the gauges and data boxes. You can also choose to hide the data boxes.
NOTE: The view must be displayed on the screen in order to change the digital readouts.
Select Readouts for the NMEA 2000 Instrument View
To customize data items displayed within the NMEA 2000 Instrument View, see the instructions below.
Customize Data Box Readouts
You can select the data that will be displayed in each box. Use the Edit Data Boxes menu to set your standard digital readouts. Use
the Edit Navigation Data Boxes menu to set the digital readouts that will be displayed during navigation.
1. NMEA 2000 X-Press Menu: With the NMEA 2000 Instrument View displayed on screen, press the MENU key once.
2. Select Edit Data Boxes or Edit Navigation Data boxes. Press the RIGHT Cursor key.
3. Select a Data Box (Data Box 1, 2, 3, etc.).
4. Select a digital readout.
Hide: To hide the data boxes, select Data Box. Use the LEFT Cursor key to select Off.
Customize Gauge Readouts
You can select the data that will be displayed by each gauge.
1. NMEA 2000 X-Press Menu: With the NMEA 2000 Instrument View displayed on screen, press the MENU key once.
2. Select Edit Gauges. Press the RIGHT Cursor key.
3. Select a Gauge (Gauge 1, 2, 3, etc.).
4. Select a digital readout.
data box 2
data box 1
data box 5
data box 4
data box 3
data box 6

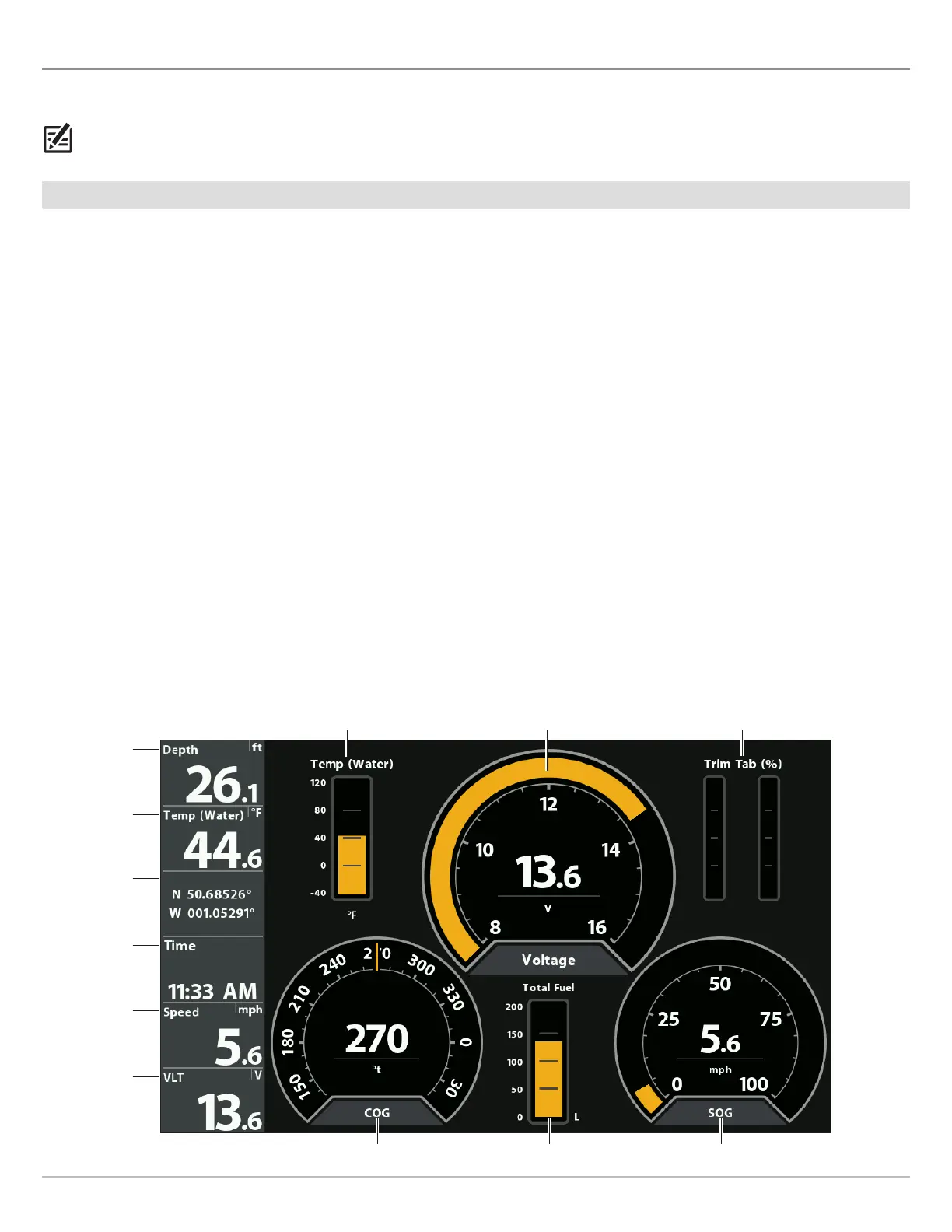

NMEA 2000 View (HELIX 10)
gauge 1 gauge 2 gauge 3
gauge 4 gauge 5 gauge 6
