INSTALLATION
8
Attach the Beveled Intermediate Support Brackets (If Required)
Evenly space the beveled intermediate support bracket(s) between the two beveled box
installation brackets.
Adjust spacing if needed to avoid interference with internal headrail mechanisms.
Attach the beveled intermediate support bracket(s) with two screws through diagonal
top holes.
IMPORTANT: The rear of the beveled box installation brackets and beveled intermediate
support bracket(s) must align.
Proceed to “Install the Blind” on page 14.
Mount the Hidden Installation Brackets
— Outside Mount (Residential Applications)
To attach the hidden installation brackets, a flat vertical surface of at least
5
⁄
8
" is required for
both
1
⁄
2
" and 1" slat sizes.
Mark 2" to 6" from each end of the headrail.
If more than two hidden installation brackets came with your order, space additional
hidden installation bracket(s) evenly between the two outer hidden installation
brackets and mark their location.
Center the hidden installation brackets on your marks and mark the location of the
screw holes.
CAUTION: The rear of the hidden
installation brackets must be flush
against a flat mounting surface.
Do not mount the hidden installation
brackets on a curved molding.

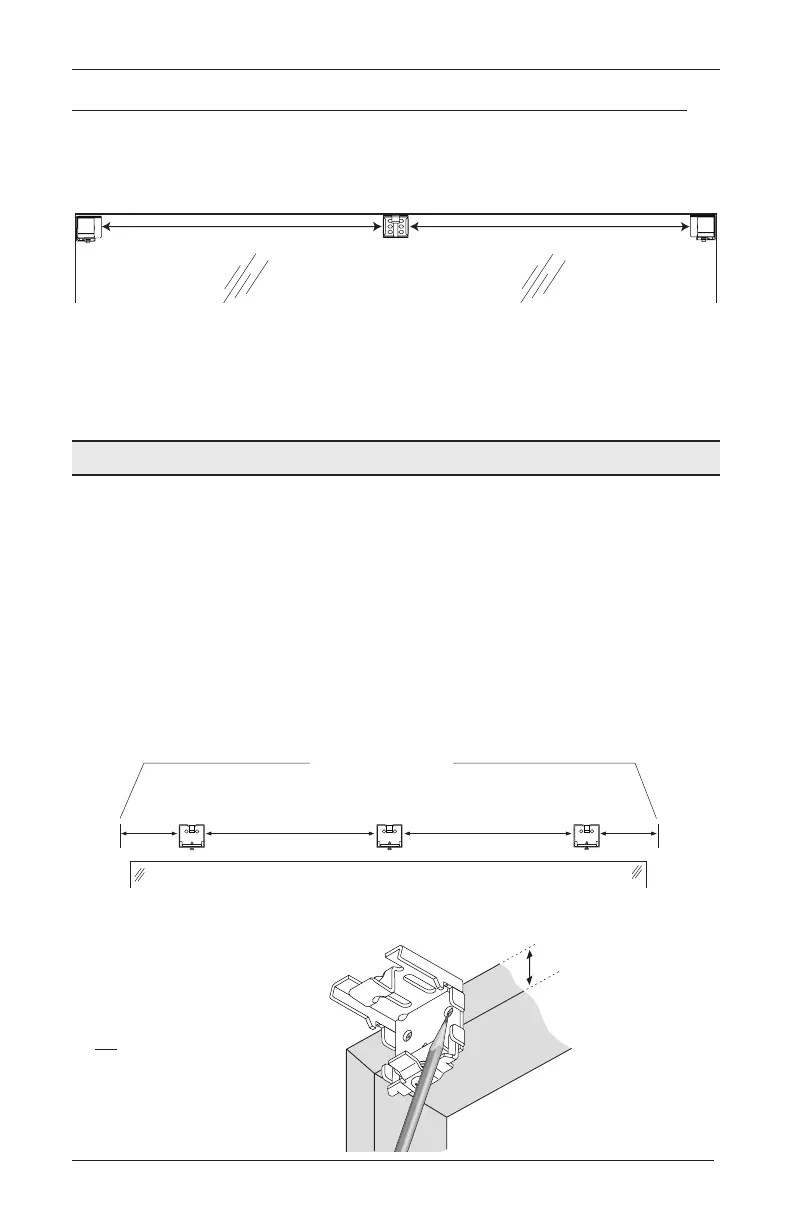

Beveled
Intermediate Support
Bracket
Beveled Box
Installation Bracket
Beveled Box
Installation Bracket
Space Evenly Space Evenly
2" to 6" 2" to 6"Space EvenlySpace Evenly
Headrail End Marks
Window Opening
5
∕
8
" Minimum
Flat Vertical Surface
