INSTALLATION
12
18V DC Power Supply

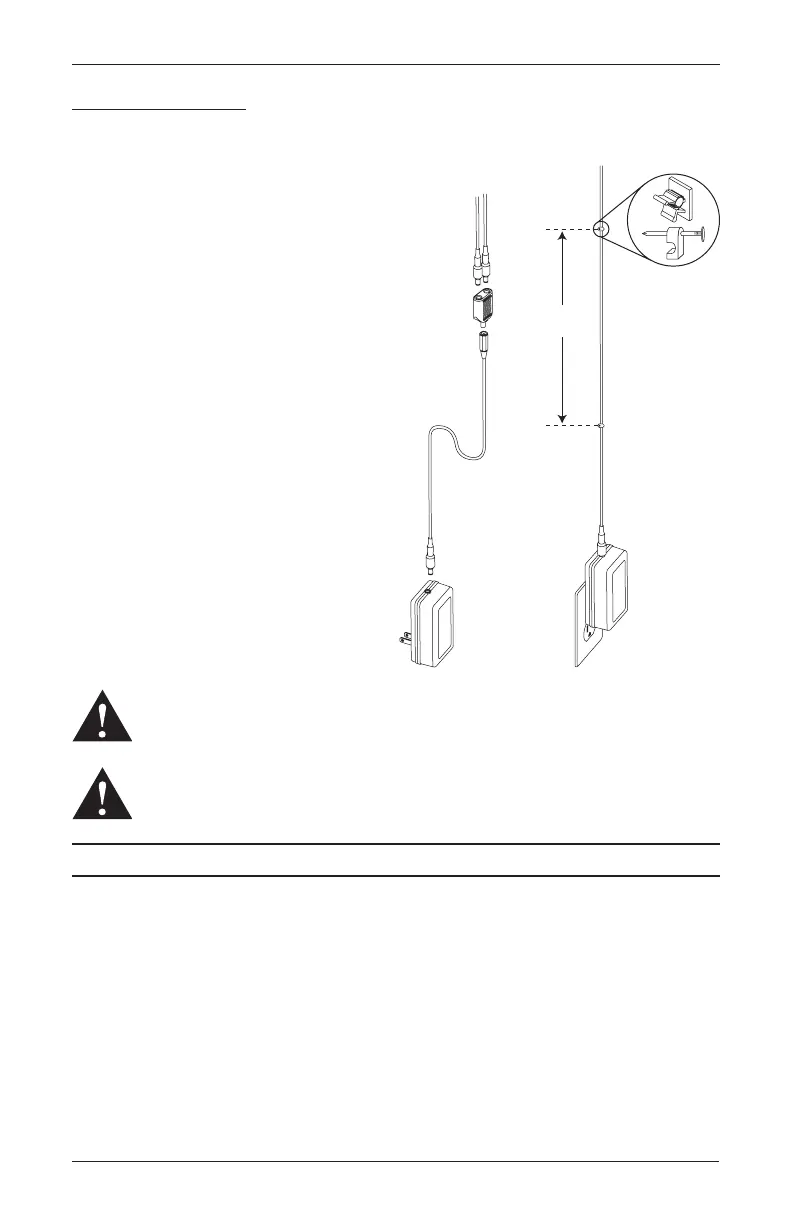

Connect the Power Supply
■ Plug the power cables from the shading
and the extension cable into the “Y”
connector.
■ Plug the other end of the extension cable
into the 18V DC power supply.
NOTE: When power is connected to the
motor, a green LED inside the programming
button housing will flash to indicate the
shading is ready for operation.
■ Plug the 18V DC power supply into a
standard wall outlet. The power supply
may be oriented with the cable at the top
or bottom.
■ Secure the extension cable using wire
retainers (not supplied). If hiding the cable
behind the shading, make sure it does not
impede the operation of theshading.
■ Space the wire retainers approximately
15" apart along the power supply cable.
WARNING: Keep cords and small parts out of the reach of children. They can wrap
cords around their necks and STRANGLE. They can also put small parts in their
mouths and CHOKE.
WARNING: Electric shock and/or a fire hazard may occur if the 18V DC power
supply and cables are not properly installed.
Proceed to “Operate the Shading” on page 13.
from Shading
Extension
Cable
“Y”
Connector
18V DC
Power
Supply
15"
Maximum
Wire Retainers
To Next Page
