INSTALLATION
4

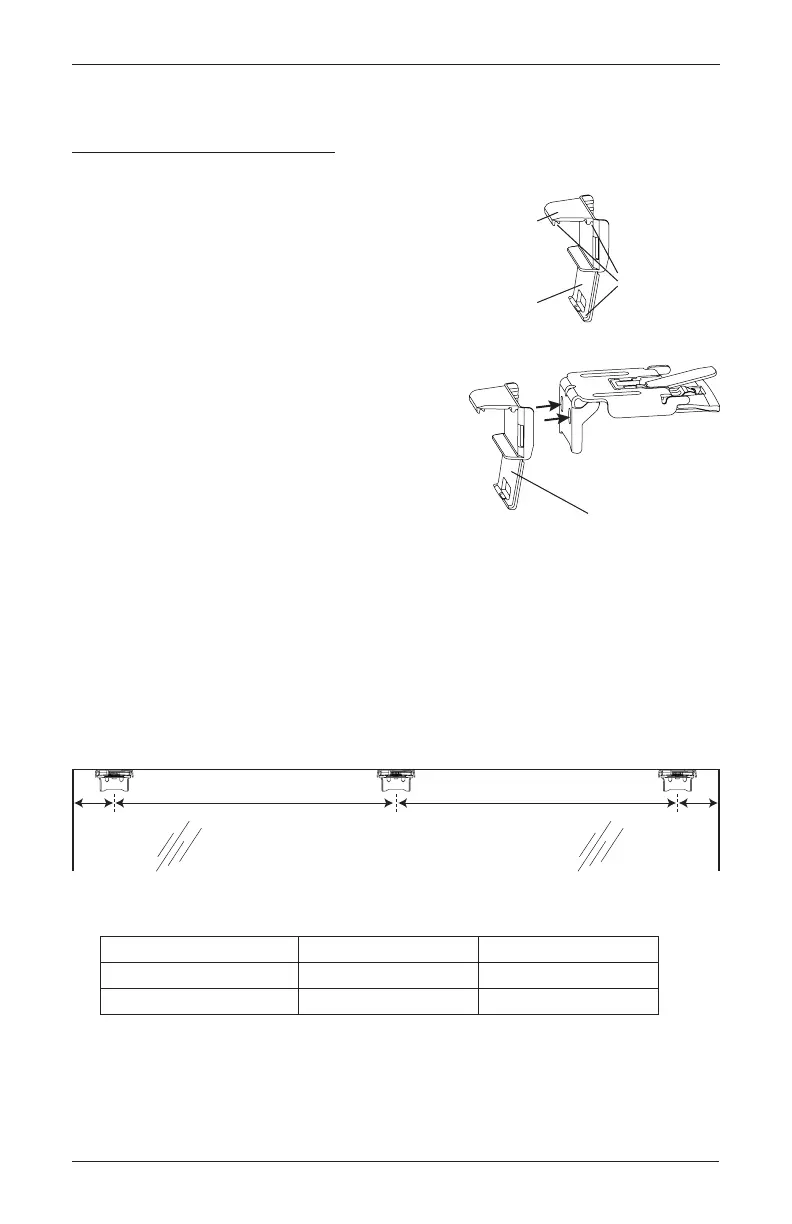

Mount the Installation Brackets — Inside Mount
Prepare the Installation Brackets
The purpose of the back cover bracket is to
provide clearance for the battery wand for
PowerView
®
shadings.
➤ If you have a battery wand, remove the
bottom tab from the back cover bracket.
➤ Snap the back cover bracket into the metal
installation bracket. This ensures adequate
space for the battery wand.
➤ If you have a satellite battery pack or an
18V DC power supply, it is not necessary
to use the back cover bracket.
■ Mark 2" from each jamb for bracket location.
➤ If more than two installation brackets came with your order, space additional bracket(s)
between the two end brackets and mark their location. Mount into wood whenever
possible.
➤ For PowerView
®
shadings with battery wand, allow a minimum of 17" between bracket
centerlines for the battery wand(s). A shading may have one or two battery wands.
■ Review the minimum depth requirements in the table below.
Window OpeningJamb Jamb
2" Space Evenly Space Evenly
Minimum 17" for Battery WandMinimum 17" for Battery Wand
2"
Operating System Type Minimum Mounting Depth Fully Recessed Depth
PowerView with Battery Wand 1
5
/
8
" 4
3
/
4
"
All Other Systems 1" 4"
Remove bottom tab if
Top Tab
Tab
Back Cover
Slots
