INSTALLATION
7

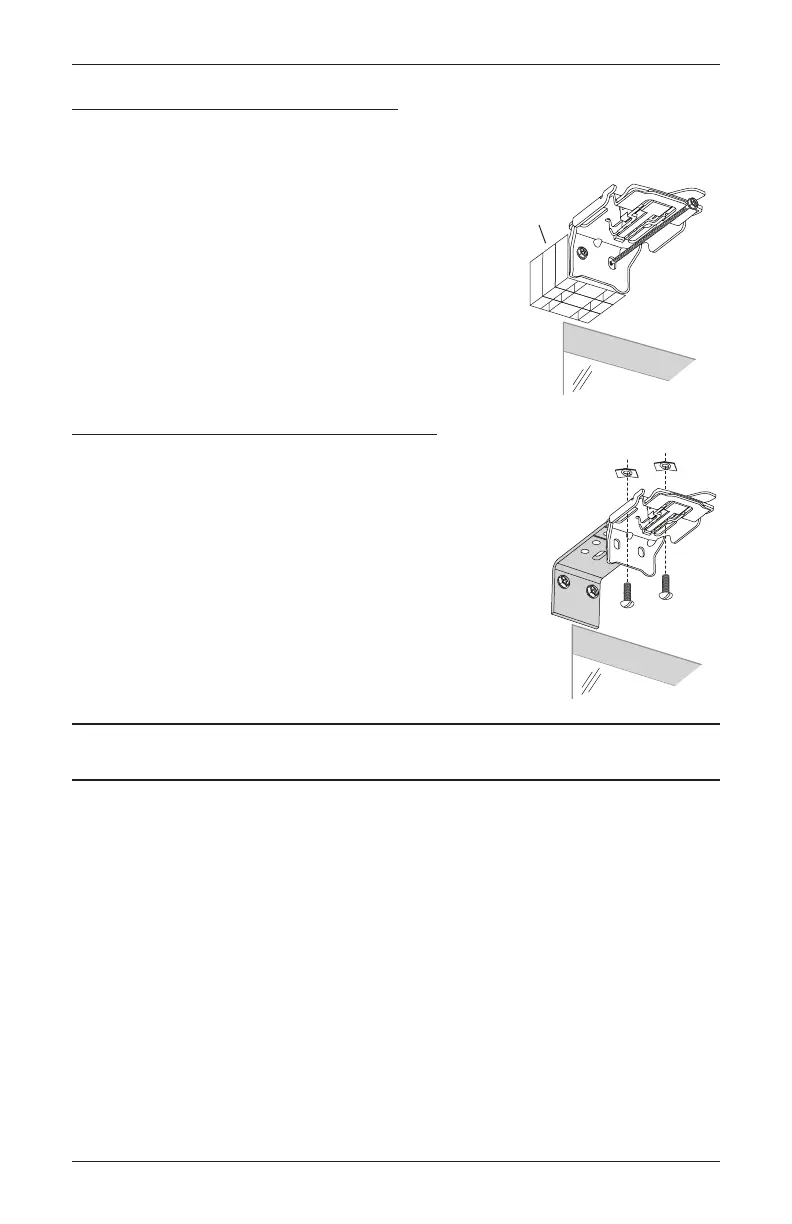

Additional Clearance with Spacer Blocks
NOTE: A minimum of
3
/
4
" additional clearance is required for PowerView
®
shadings with
battery wand.
■ If using
1
/
4
" or
1
/
2
" spacer blocks, attach the spacer
block(s) and installation bracket to a flat vertical
mounting surface with #6 screws long enough for a
secure installation.
IMPORTANT: The solid side of the spacer blocks
must face toward the mounting surface.
Additional Clearance with Extension Brackets
■ If using extension brackets, attach each extension bracket
to the mounting surface using the screws provided.
■ Attach an installation bracket to the underside of each
extension bracket using the provided screws and speed
nuts.
NOTE: The maximum amount of added clearance using
extension brackets is 3".
Proceed to “STEP 2 — PowerView
®
Only: Connect the Power Cables” on page 8 or
“STEP 3 — Install the Shading” on page 9.
Blocks
Longer
Screws
1
1
/
2
" Maximum
Added Clearance
Bracket
Speed Nuts
Screws
To Next Page
