USING THE PROC TO OPERATE OUTDOOR LIGHTING OPTIONAL
Connecting the FX Luminaire Transformer

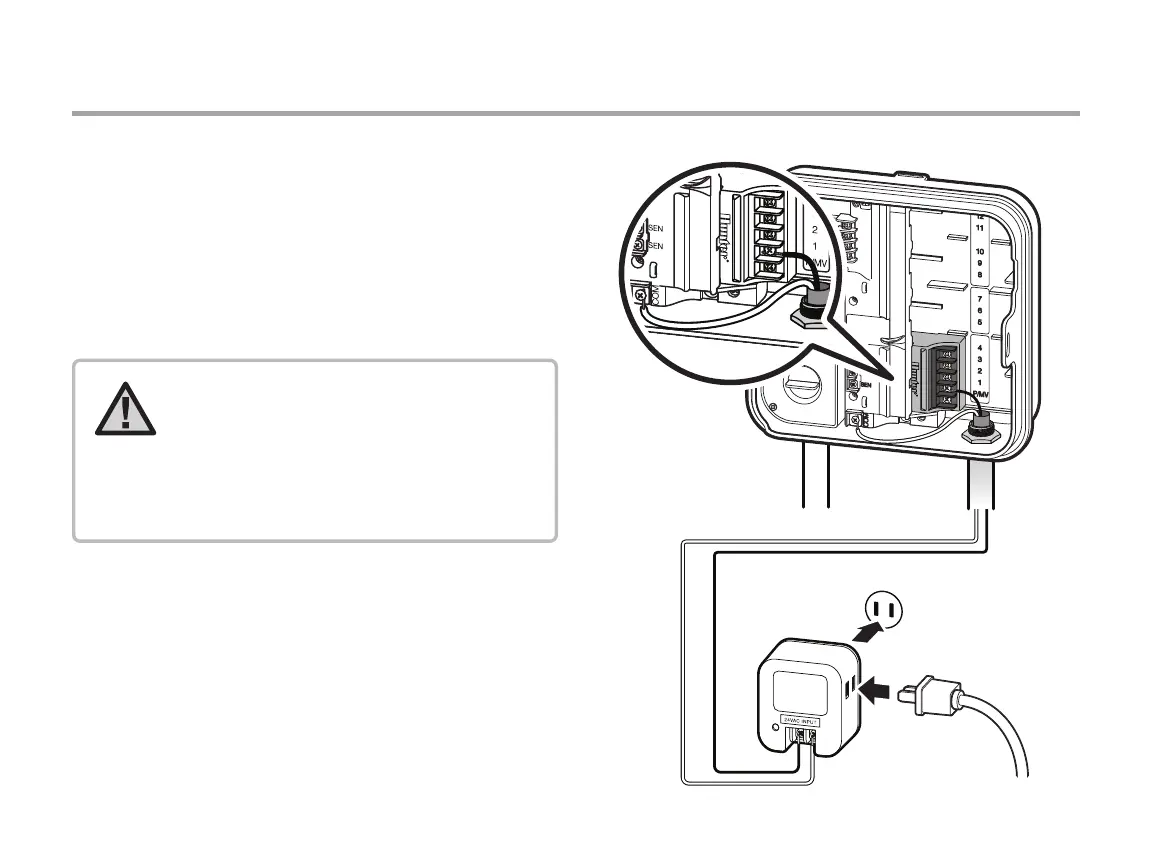

The Pro-C is capable of operating three separate lighting
transformers equipped with the PXSync interface box.
Connect wires from the first PXSync box to station output 1
(and the Common) on the Pro-C terminal. If using a second or
third transformer, the second will be wired to station 2 and the
third wil be wired to station 3.
Common
Station Output
Transformer
Accessory Plug
NOTE: Manual cycles initiated at the
controller or from a remote will cancel
any automatic program currently
running. Once manual cycle is complete,
the controller will return to automatic
mode, and run the next scheduled
program at its specied start time
