Wireless Rain-Clik Components

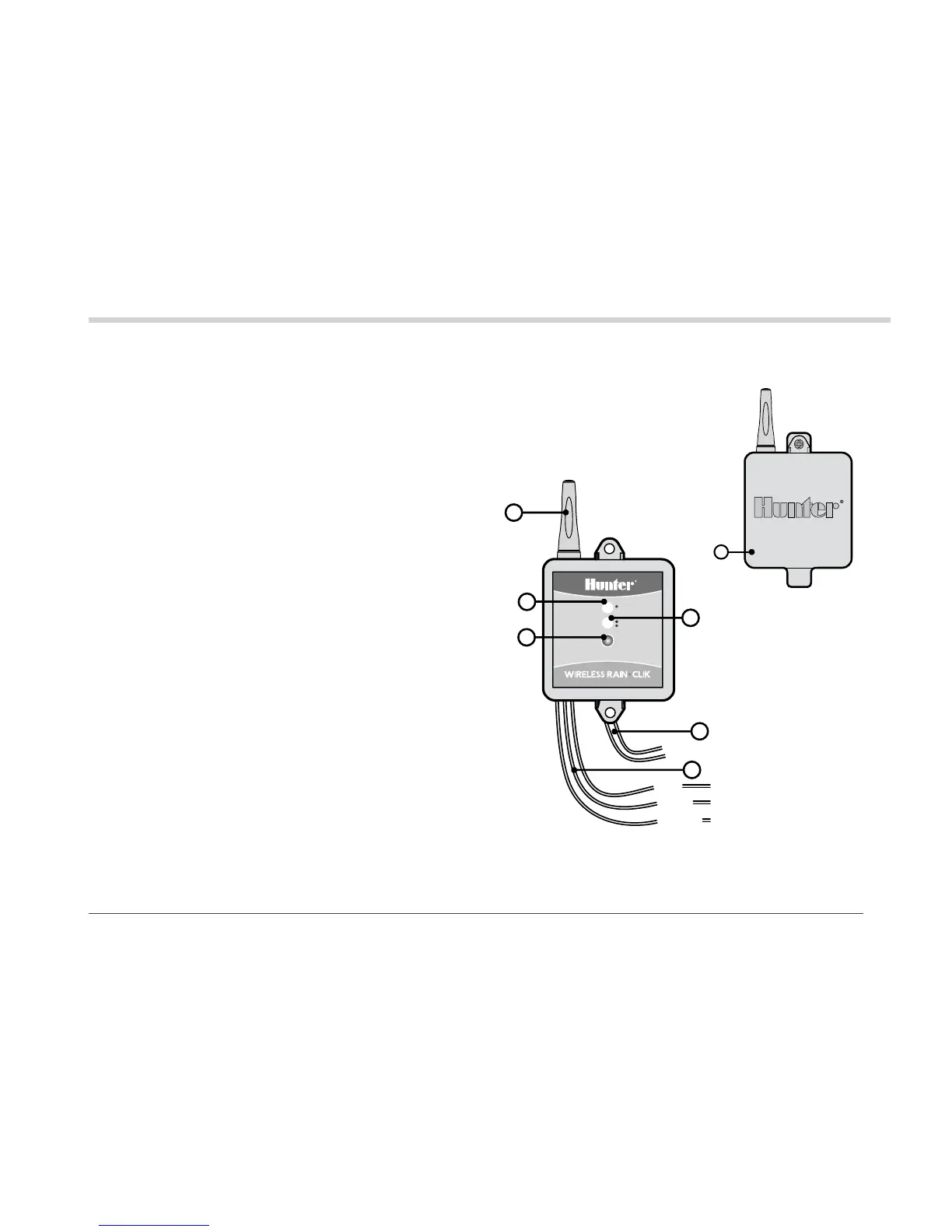

Wireless Rain-Clik Receiver
1. Bypass Button – Allows automatic or manual watering
when the sensor is active.
2. Sensor Bypass LED – Indicates when sensor has been
bypassed.
3. Sensor Status LED – Used to indicate the status of the
sensor.
4. Radio Antenna – Receives a wireless signal from the
transmitter up to 800' (275 m). The antenna should be
oriented vertically.
5. AC Power Wires – The two yellow wires are attached to
a 24 VAC source from the controller.
6. Sensor Wires – The sensor wires are attached to either
the sensor terminals in the controller or in-line with the
valve common wire.
Blue/White Wires – Used for normally closed sensor
applications.
Blue/Orange Wires – Used for normally open sensor
applications.
7. Rubber Cover – Used to protect the receiver when
mounted in outdoor locations.
White
Blue
Yellow to 24 VAC power
Orange
SENSOR STATUS
SENSOR BYPASS
Press to bypass, press
again to re-enable
GREEN = Sensor is dry
RED = Sensor is wet
Red light indicates
sensor is bypassed
RAIN SENSOR BYPASS
Blue/white wires to normally
closed sensor terminals
Orange/w
To Next Page
