Hunter Rain-Clik - Mounting the Receiver: Controller Wiring; Wiring to Hunter X-Core, Pro-C, PCC, ICC2, I-Core; Wiring to Hunter ACC or ACC2 Controllers

8

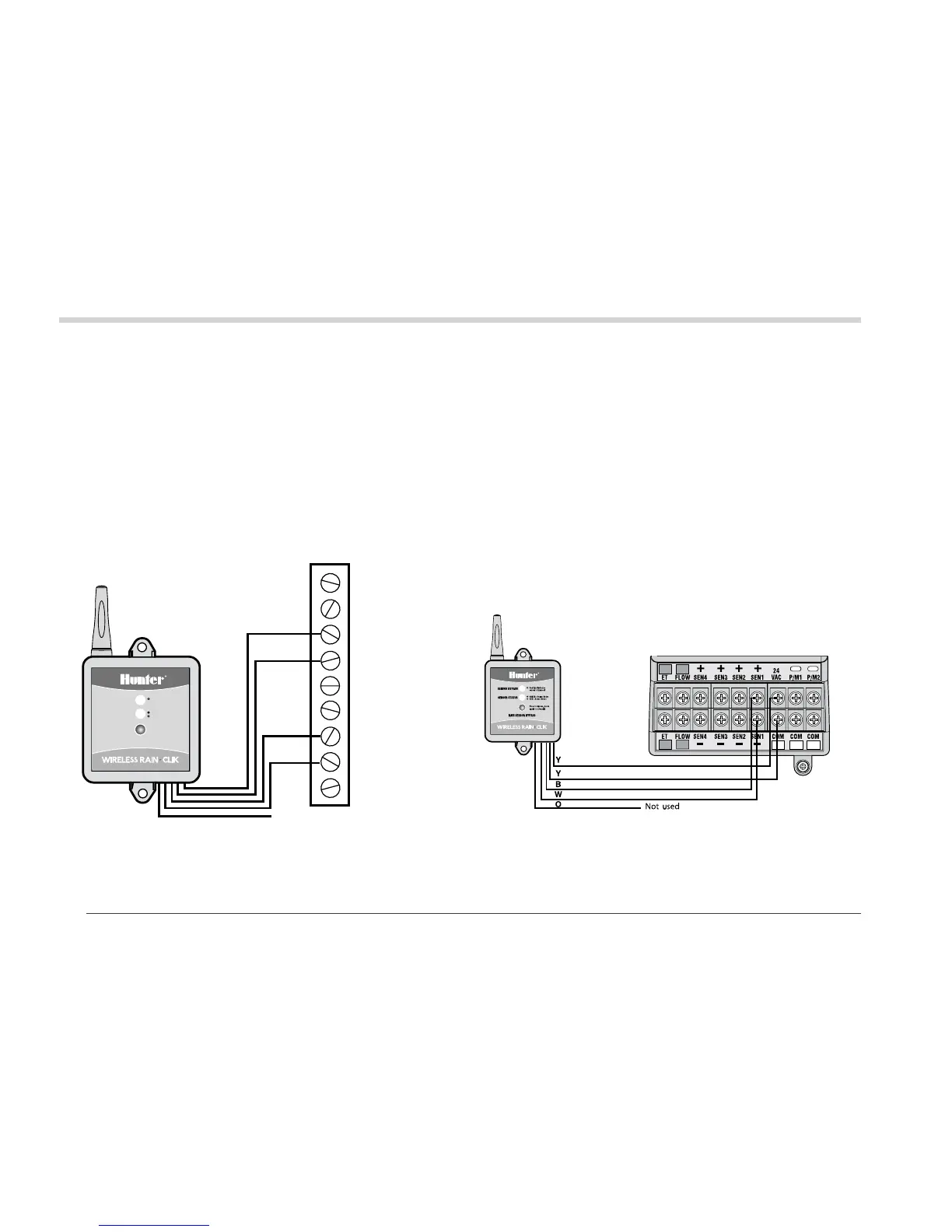

Wiring the Receiver to a Hunter X-Core, Pro-C,
PCC, ICC2, or I-Core
1. Remove the sensor jumper across the two SEN
terminals in the controller.
2. Attach the two yellow wires to the 24 VAC terminals.
3. Attach the blue wire to one SEN terminal and the white
wire to the other SEN terminal.
Mounting the Receiver
Wiring the Receiver to a Hunter ACC or ACC2
1. Connect the blue and white wire to any of the four
Sensor Terminal pairs (Sen 1 shown).
2. Attach yellow wires to 24 VAC and COM terminals.
3. Use features at the “Set Sensor Operation” dial position
on ACC to complete setup.
4. Use Devices and Sensor Response options
on ACC2 to complete setup.
5. See ACC/ACC2 owner’s manuals for
further details.
SEN
SEN
C
TEST
P MV
AC
AC
G
REM
B
W
Y
Y
O
Not used
SENSOR STATUS
SENSOR BYPASS
Press to bypass, press
again to re-enable
GREEN = Sensor is dry
RED = Sensor is wet
Red light indicates
sensor is bypassed
RAIN SENSOR BYPASS
