INSTALLATION
6
Installation Overview
To install your shade, you will need to perform the following three steps:
STEP 1: Install the brackets and attach additional components
STEP 2: Install the shade
STEP 3: Connect the power source
STEP 1 — Install the Brackets
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■
Refer to the appropriate page below based on the mounting type chosen for your order:
➤
Standard Shades
Inside Mount — page 7
Outside Mount — page 8
➤
Coupled Shades
Inside Mount — page 14
Outside Mount — page 11
➤
Fascia Shades — page 12
➤
Pocket Shades — page 14

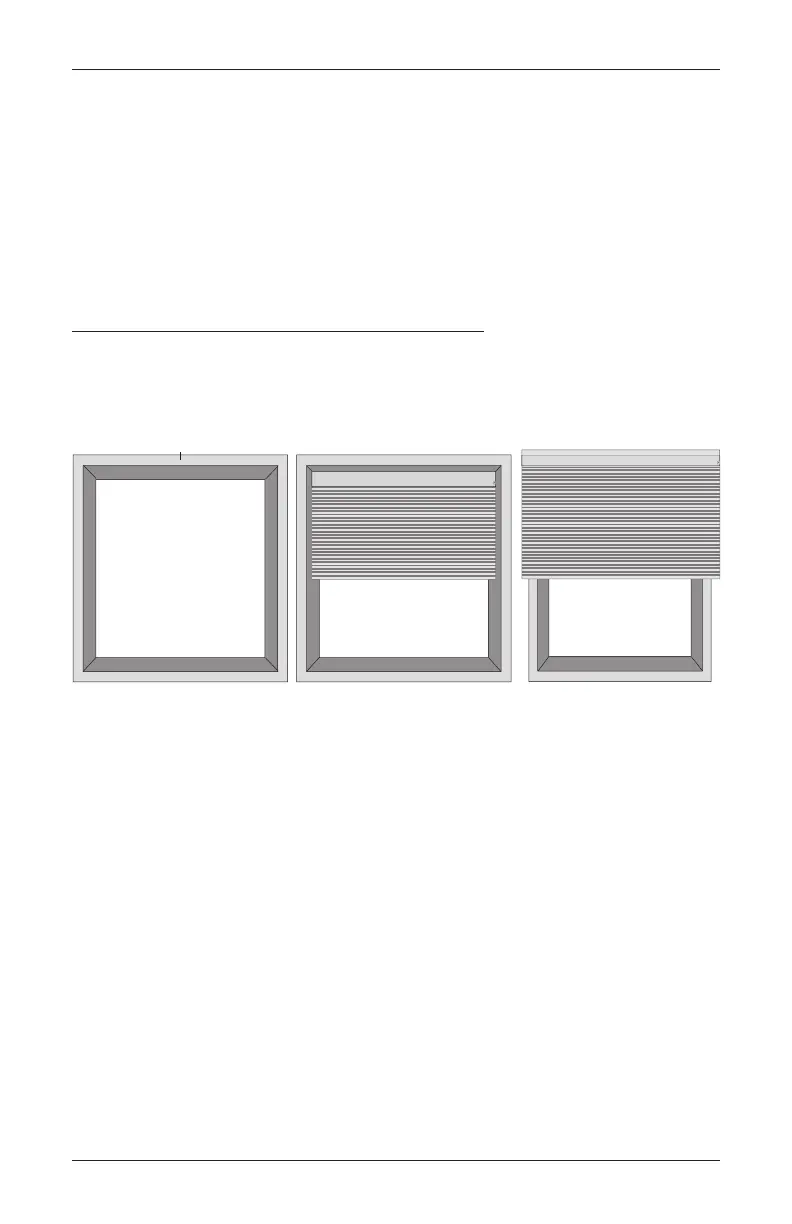

Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Head Jamb
Sill
Jamb Jamb
