INSTALLATION
8
STEP 2: Attach Rechargeable Battery Mount to Headrail (If
Applicable)

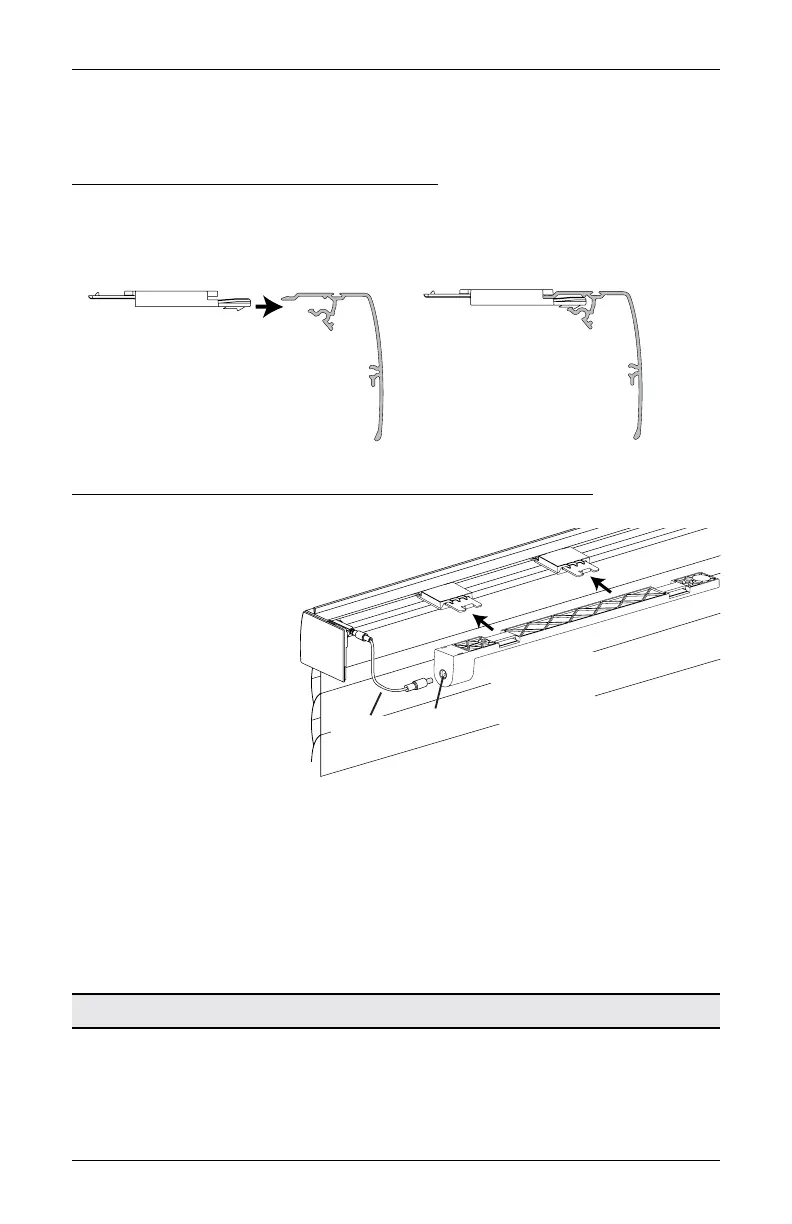

Install the Rechargeable Battery Clips
■
Insert the rechargeable battery clips into the back channel of the headrail.
IMPORTANT: Position the clips so that the rechargeable battery wand will be between
installation brackets.
Mount the Rechargeable Battery Mount into the Clips
■
From the back of the shade headrail, connect
the power cable from the motor side into the
socket on the rechargeable
battery mount.
■
Align the slots in the
battery mount with the
battery wand clips.
■
Push the battery mount
onto the battery wand clips
until it snaps into place.
Check to make sure the
battery mount is secure.
CAUTION: Be sure the cable does not become pinched by the battery wand clips during
installation. Damage or overheating of components could result.
NOTE: Do not install the rechargeable battery wand into the battery mount before
installing the shade. See “STEP 4: Connect the Power Source — Headrail-Mounted
Rechargeable Battery Wand” on page 10 for instructions on inserting the battery wand
into the battery mount.
Proceed to “STEP 3: Install the Shade” on page 9.
Front of
Rechargeable
Battery Clip
Socket
Extension
Cable
Rechargeable
Battery
Mount
To Next Page
