18V DC Power Supply with Daisy-Chain Connections
NOTE: The daisy-chain feature is only available with the 18V DC Power Supply option. Refer
to this section if you have an 18V Power Supply with daisy-chain connections.
The daisy-chain feature allows up to three PowerView
®
Gen 3 automated shades to be
powered by a single 18V DC Power Supply. However, each shade can operate independently.
■
Route the power cable from each shade to the Y Adapter, using an extension cable,
if necessary.
■
Plug an extension cable into the connector and plug the cable into the 18V DC Power
Supply. Two extension cables and two connectors are used for three shades.
■
Plug the 18V DC Power Supply into a standard outlet.
Proceed to “Testing the Shade” on page 16.

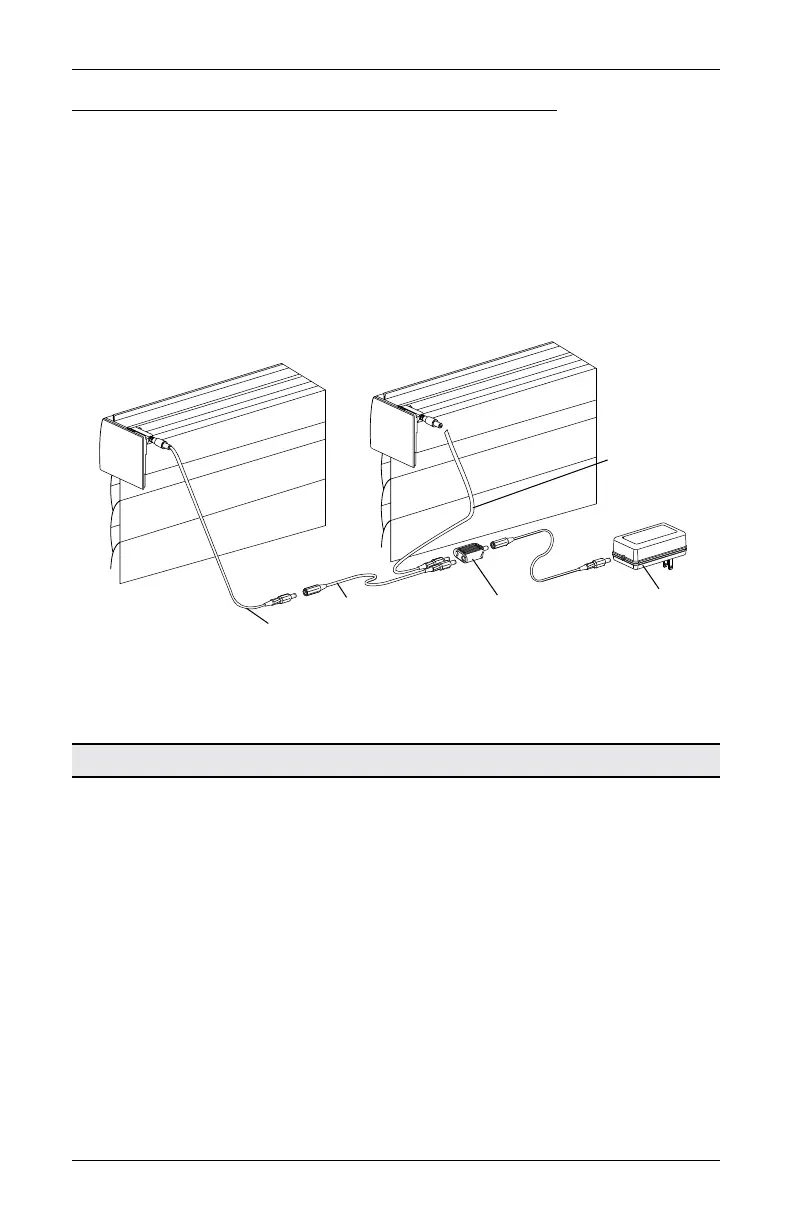

Power Cable
from Shade
Power Cable
from Shade
Extension Cable
Y Adapter
18V DC
Power Supply
