OPERATION INSTRUMENTS
- 14 -
ENGLISH

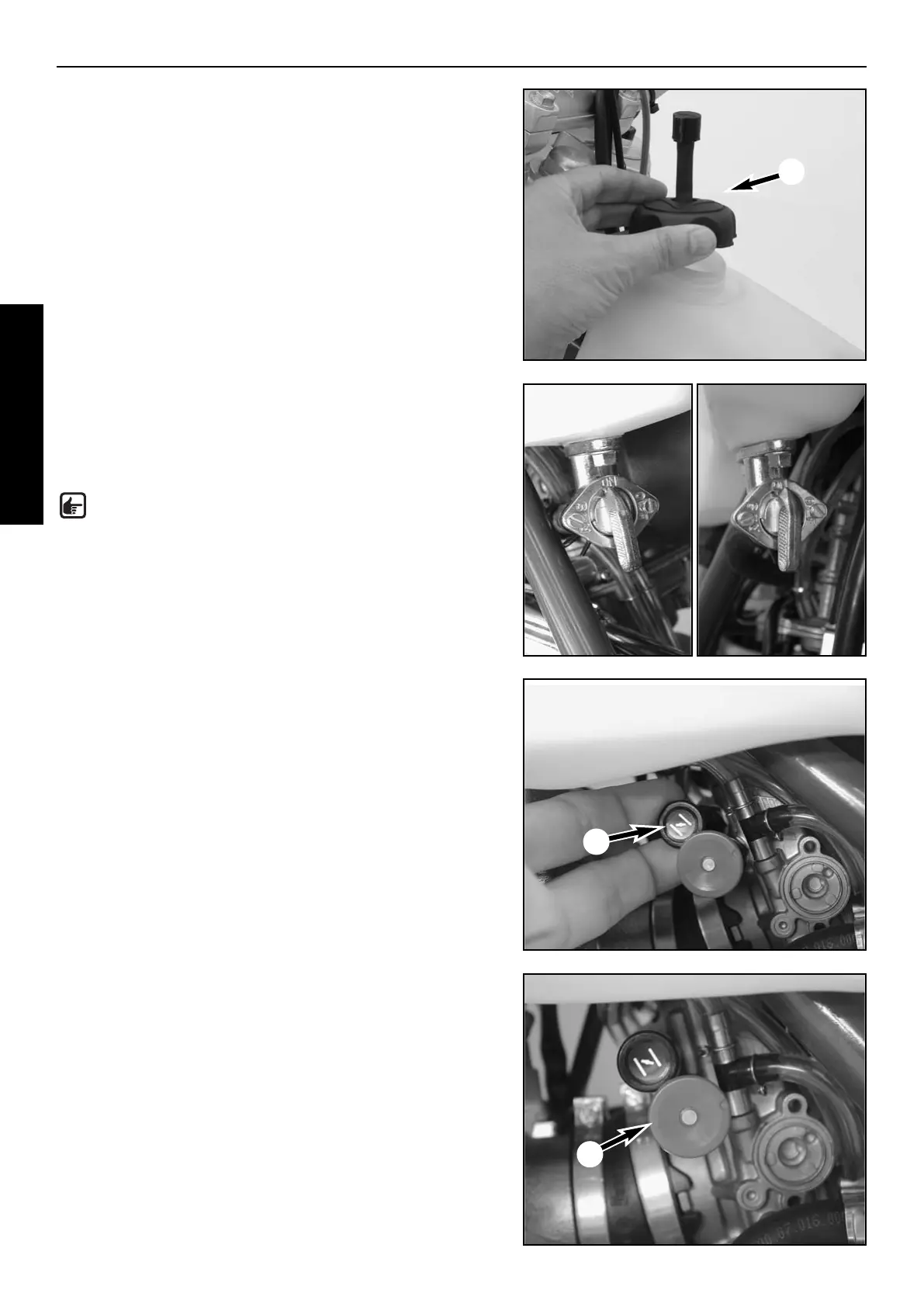

FILLER CAP
To open the filler cap: Turn the filler cap counter-clockwise.
To close the filler cap: Put the filler cap on and tighten it by turning
it clockwise.
Install the tank breather hose (1) without kinks.
FUEL TAPS
OFF In this position the fuel taps are closed. No fuel can flow to
the carburetor.
ON/RES The knob is in the ON or RES position when the motorcycle
is running. Fuel is conveyed to the carburetor in this position
and the tank will drain completely.
NOTE: The RES function is not available.
CHOKE
If you pull the choke button (2) out as far as possible, a bore in the
carburetor will be opened through which the engine may take in additio-
nal fuel. The result is a „fat“ fuel-air mixture of the type needed for cold
starts. To deactivate the choke, push the choke button back into its basic
position.
HOT START DEVICE
If you pull the hot start device (3) out as far as possible, a bore in the
carburetor will be opened through which the engine may take in additio-
nal air. The result is a „lean“ fuel-air mixture of the type needed for hot
starts.
To deactivate the hot start device, push the hot start button back into its
basic position.
2
3
1
